Multi Function Switch

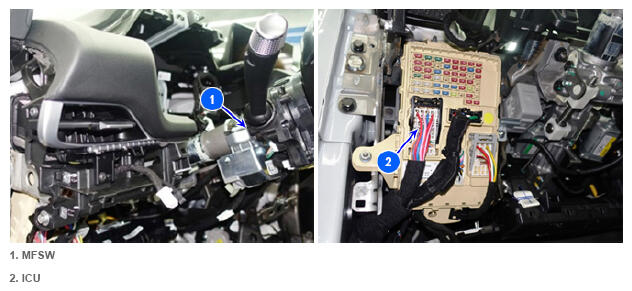

MFSW* is connected to ICU* to form B-CAN network of the vehicle. MFSW* transmits the wiper & washer switch signal and the lamp switch signals via the B-CAN communication and controls the wiper and the headlamp failsafe function and the washer motor.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| MFSW* | "MULTI FUNCTION SWITCH" | Multi Function Switch | SD200-6 |
| ICU* | → "ICU JUNCTION BLOCK" | → [CGW+SJB] Integrated Central control Unit | |
| CGW | → "ICU JUNCTION BLOCKJPS CONTROL MODULE" | → Central Gate Way | |
| SJB | → "ICU JUNCTION BLOCK" | → Smart Junction Block |
