Integrated Body Control Unit (IBU)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX ")

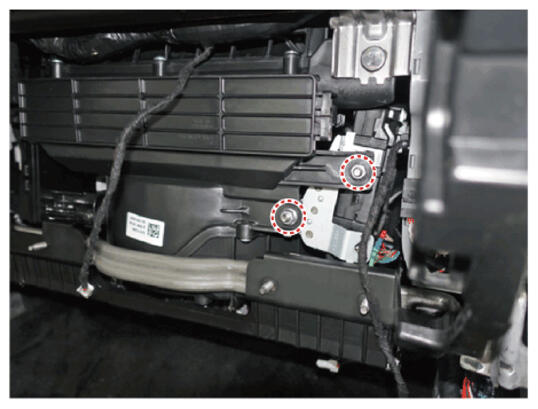

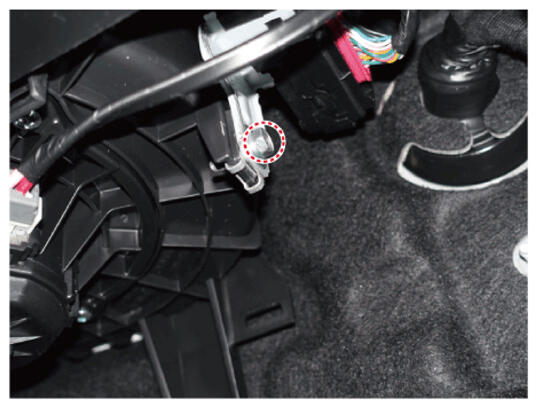

  3. Loosen IBU mounting bolt and nuts.
    G16774433Courtesy of HYUNDAI MOTOR AMERICA
    G16774434Courtesy of HYUNDAI MOTOR AMERICA

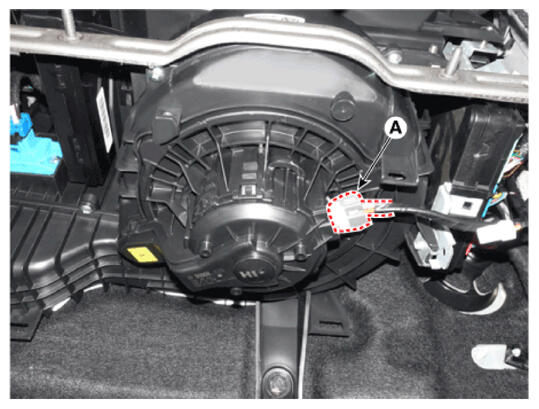

  4. Disconnect the blower motor connector (A).
    G16774435Courtesy of HYUNDAI MOTOR AMERICA

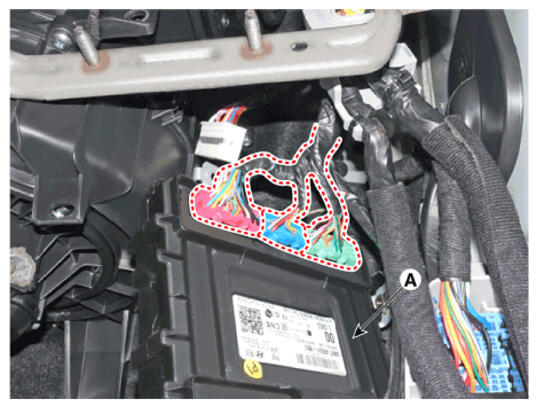

  5. Remove the IBU (A) after disconnecting IBU connectors.
G16774436Courtesy of HYUNDAI MOTOR AMERICA
