Repair Procedures: Installation

NOTE:
  • Put the vehicle on the level ground.
  • Take out heavy luggage from the vehicles' seats or trunk.
  • Set all tires according to the specified pressure.
  • Check wheel alignment.
  • Check that the front surface of the front radar is clean.

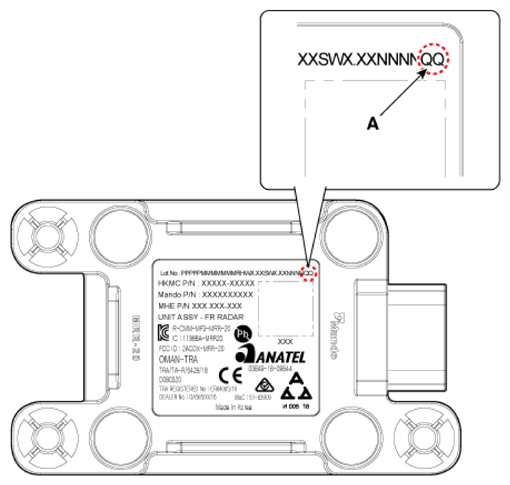

  1. Check the last 2 digits of Lot. No (A) on label at rear side before installing the front radar.

    Information

    • The meaning of Lot. No (A) is the vertical deviation angle of front radar inner side.
    G16778125Courtesy of HYUNDAI MOTOR AMERICA

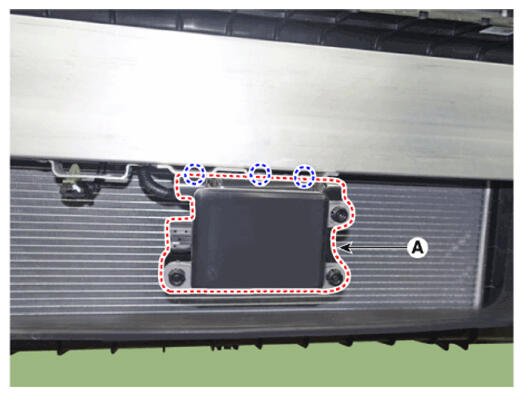

  2. Install the front radar (A) by tightening the nuts.

    Front radar nuts:

    9.5 - 10.5 N.m (0.97 - 1.07 kgf.m, 7.0 - 7.7 lb.ft)

    G16778126Courtesy of HYUNDAI MOTOR AMERICA

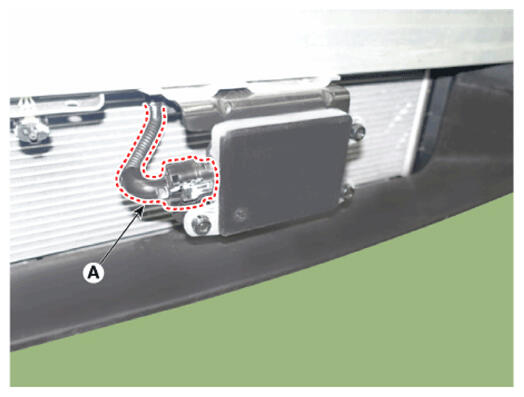

  3. Connect the front radar connector (A)
    G16778127Courtesy of HYUNDAI MOTOR AMERICA
  4. Check and align the front radar mounting angle.

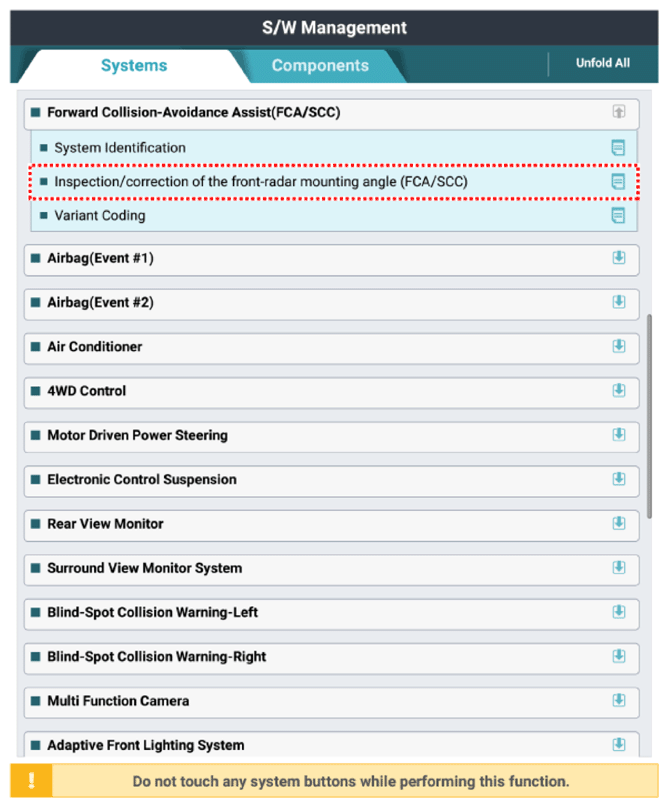

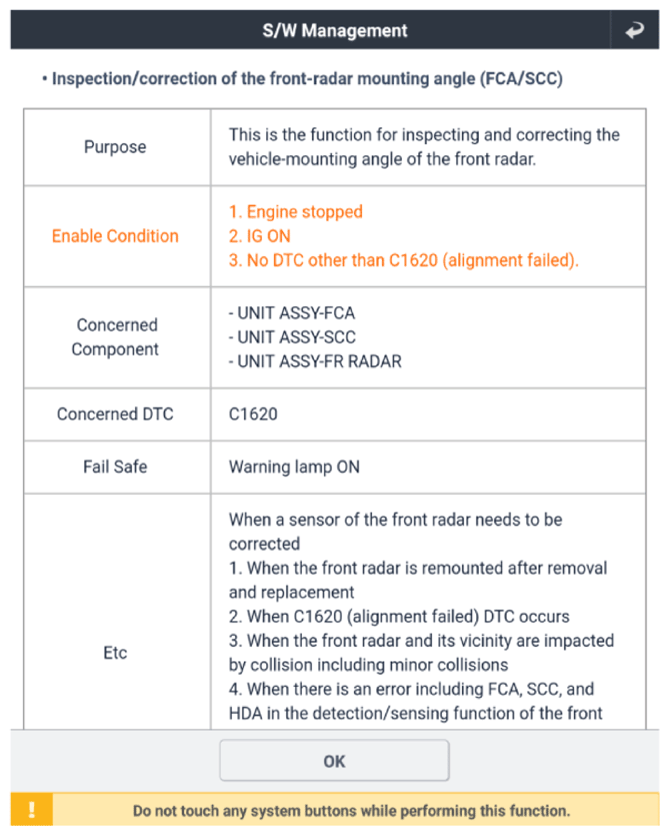

    1. Perform the "inspection/correction of the front-radar mounting angle" using the diagnostic tool.
      G16778128Courtesy of HYUNDAI MOTOR AMERICA
      G16778129Courtesy of HYUNDAI MOTOR AMERICA

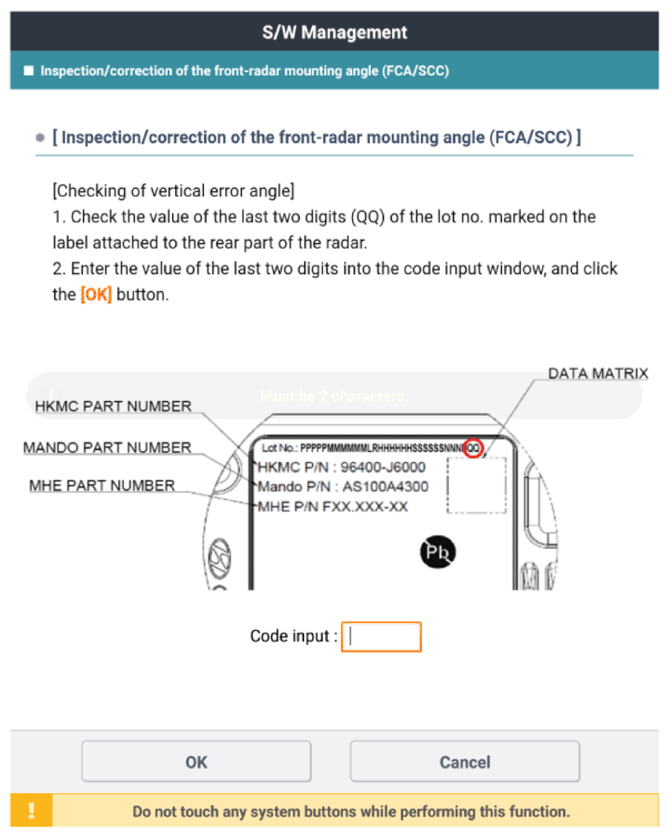

    2. Input 2 digits of value in the code input box, then press "OK"
      G16778130Courtesy of HYUNDAI MOTOR AMERICA

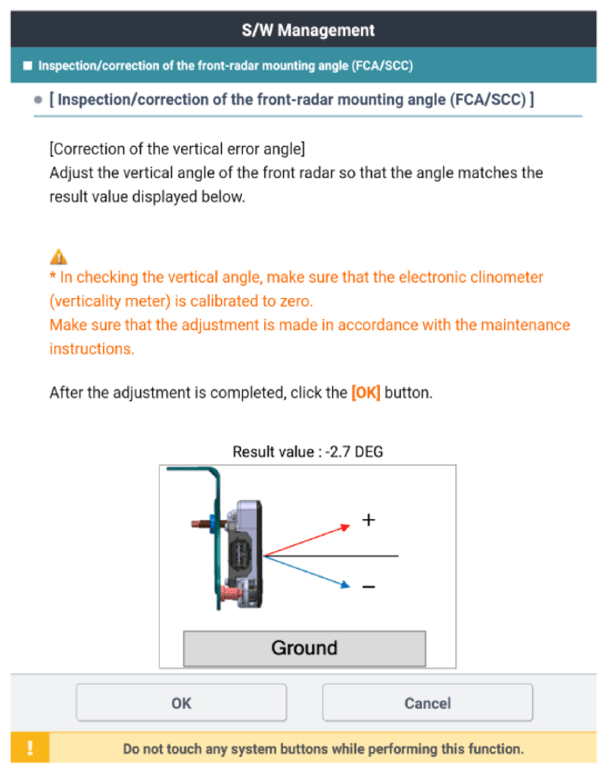

    3. Check the vertical angle which is compensated error on diagnostic tool.

      Information

      • The result value is final goal vertical angle which is compensated inner error of criteria vertical installation angle -1°.
      G16778131Courtesy of HYUNDAI MOTOR AMERICA
    4. Check the front radar vertical angle by using the vertical protractor (tiltmeter).
      NOTE:
      • Make sure to perform zero setting before using vertical protractor. (perform this procedure periodically)
      • Be careful with +/- readings when finding true vertical using vertical protractor.

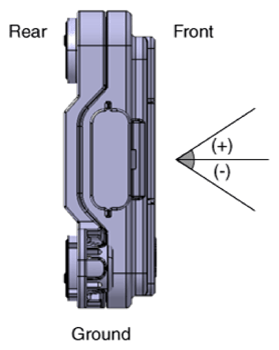

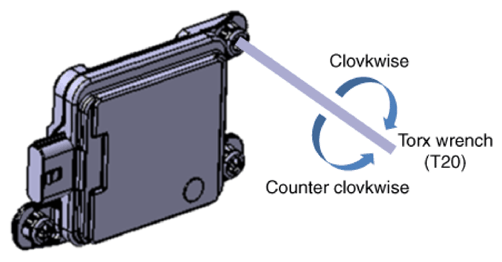

    5. Adjust to "target vertical angle" by turning adjusting screw of front radar.
    • turning clockwise: adjusting (+) angle
    • turning counterclockwise: adjusting (-) angle
    NOTE:
    • There is a chance to be transformed of bracket if adjusting screw with over strength.
    • Must recheck with vertical protractor if vertical angle is right after adjusting.
    G16778132Courtesy of HYUNDAI MOTOR AMERICA
    G16778133Courtesy of HYUNDAI MOTOR AMERICA
    Number of adjustment screw rotation Correction angle
    Clockwise Counter clockwise
    0.5 + 0.5° - 0.5°
    1 + 1.0° - 1.0°
    1.5 + 1.5° - 1.5°
    2 + 2.0° - 2.0°
    2.5 + 2.5° - 2.5°
    3 + 3.0° - 3.0°
    3.5 + 3.5° - 3.5°
    4 + 4.0° - 4.0°
    4.5 + 4.5° - 4.5°
    5 + 5.0° - 5.0°
  5. Install the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  6. Perform the front radar inspection/correction procedure by using the SST.

(Refer to Smart Cruise Control (Stop & Go) (SCC) Unit-Radar - "Adjustment ")
