Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

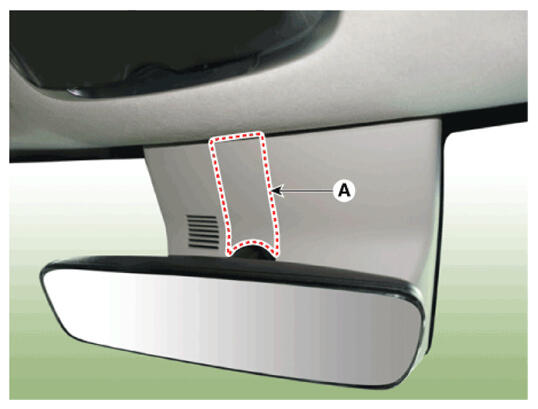

  2. Remove the inside rear view mirror cover (A).
    G16778094Courtesy of HYUNDAI MOTOR AMERICA

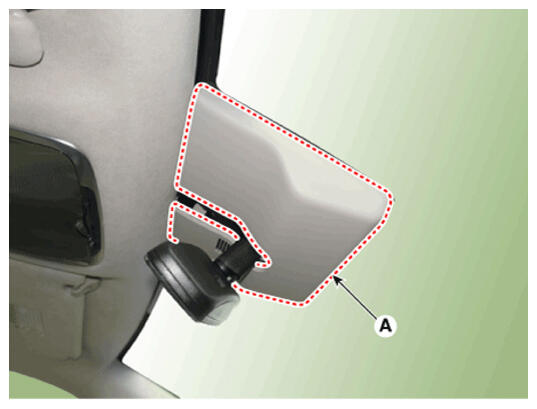

  3. Remove the rain sensor cover (A).
    G16778095Courtesy of HYUNDAI MOTOR AMERICA

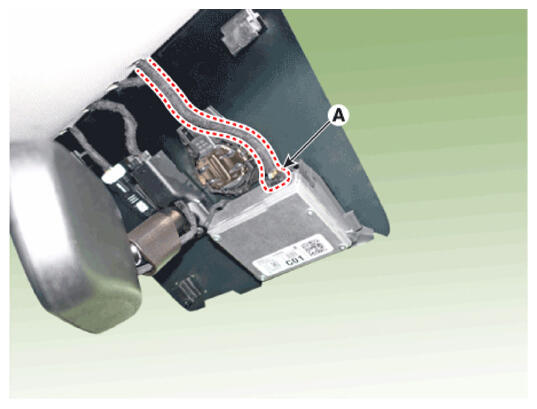

  4. Disconnect the front view camera unit connector (A).
    G16778096Courtesy of HYUNDAI MOTOR AMERICA

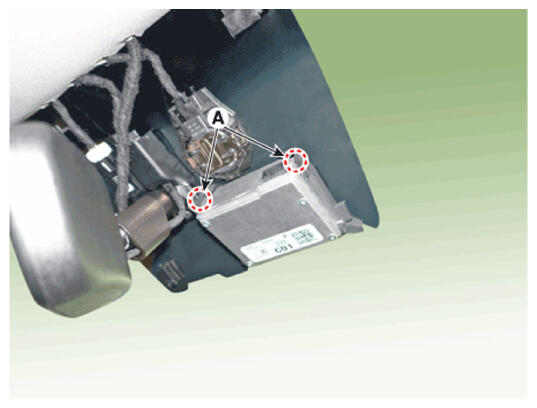

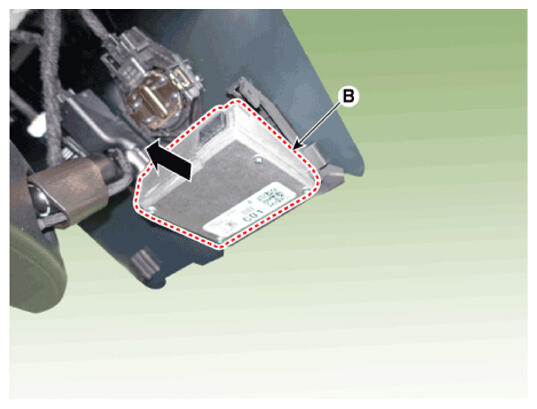

  5. Separate the fixed points (A) of coupler, remove the front view camera (B).
G16778097Courtesy of HYUNDAI MOTOR AMERICA
G16778098Courtesy of HYUNDAI MOTOR AMERICA
