Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

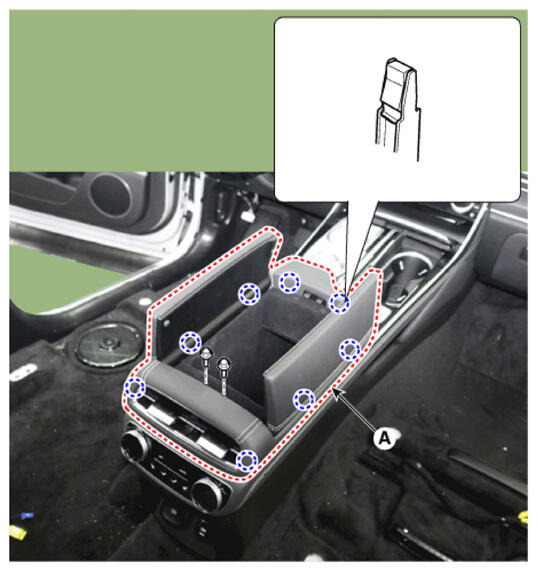

  2. Remove the upper console assembly (A) after loosening mounting bolts.
    G16774382Courtesy of HYUNDAI MOTOR AMERICA

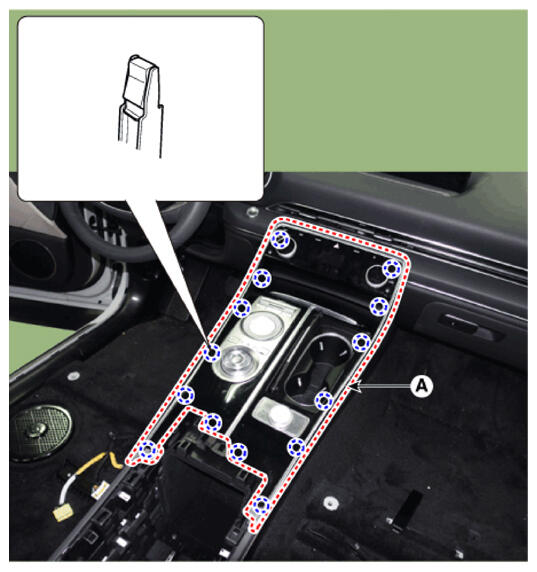

  3. Using a remover, remove the console upper cover (A).
    G16774383Courtesy of HYUNDAI MOTOR AMERICA

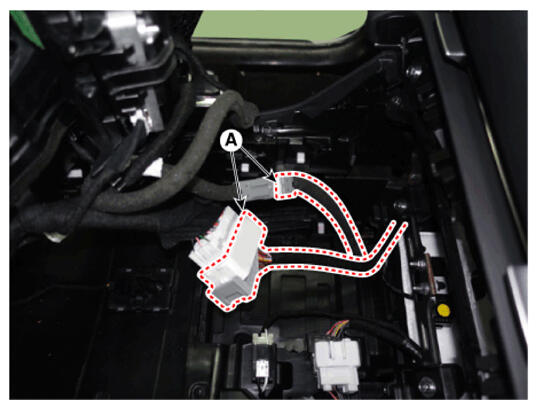

  4. Disconnect the console upper cover connector (A).
    G16774384Courtesy of HYUNDAI MOTOR AMERICA

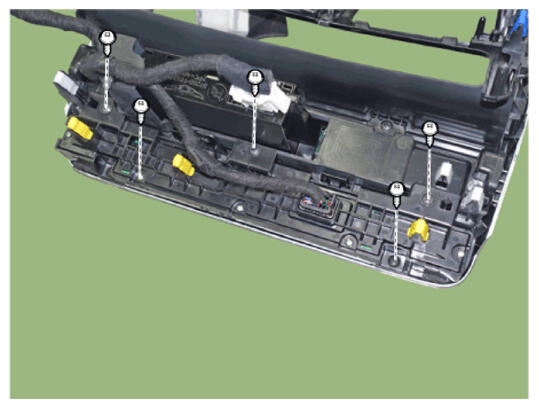

  5. Disconnect the keyboard connector and then remove the AVN keyboard assembly after loosening mounting screws.
G16774385Courtesy of HYUNDAI MOTOR AMERICA
