Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad garnish [RH].

    (Refer to Body - "CRASH PAD GARNISH ")

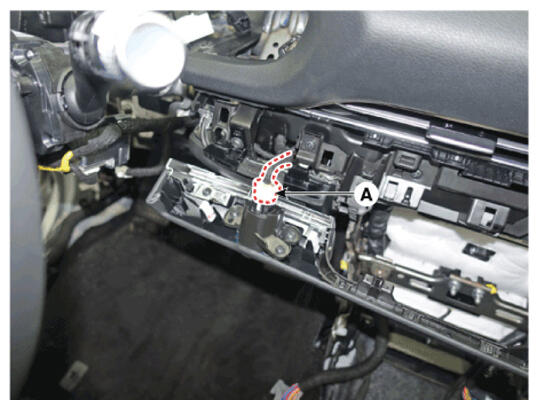

  3. Disconnect the start/stop button connector (A).
    G16774988Courtesy of HYUNDAI MOTOR AMERICA

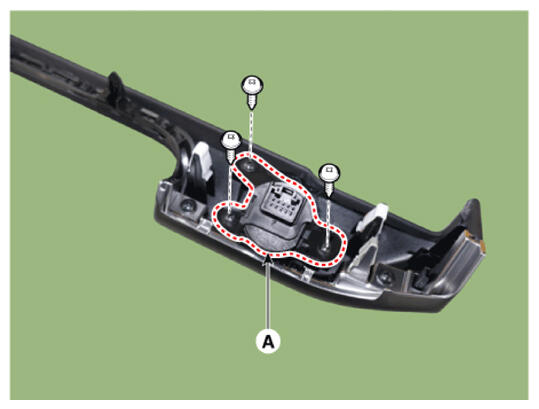

  4. Remove the start/stop button (A) after removing the screws.
G16774989Courtesy of HYUNDAI MOTOR AMERICA
