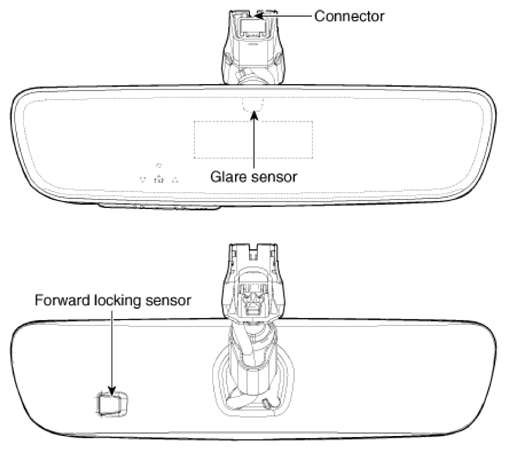

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

Connector	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2	-
	3	-
	4	OEC (+)
	5	-
	6	IGN
	7	Reverse inhibit
	8	Ground
	9	OEC (-)
	10	-
