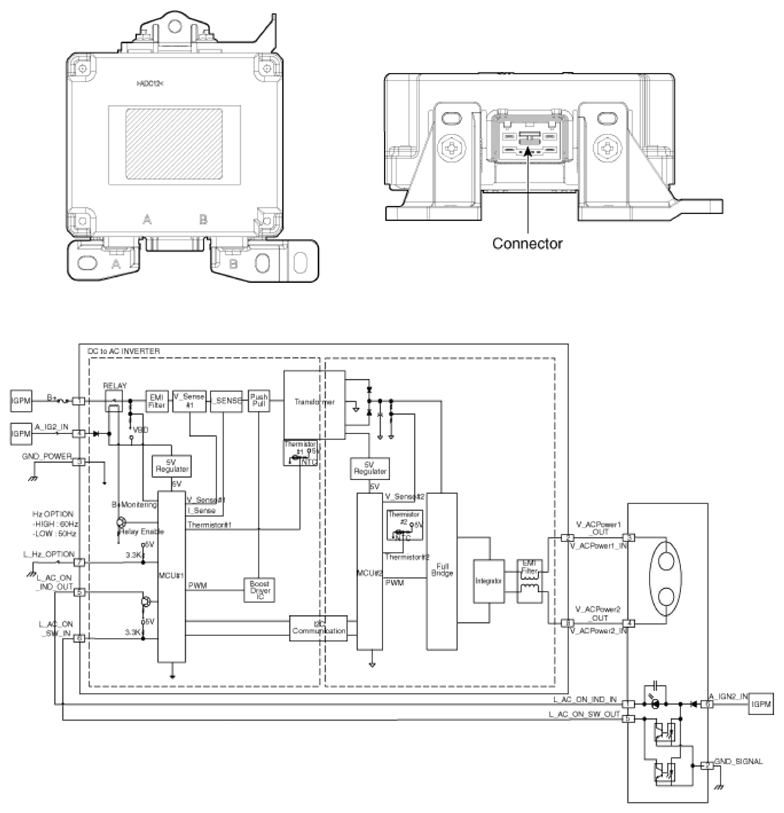

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

Connector	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Battery (+)
	2	AC Power 1 Output
	3	Ground
	4	IGN2
	5	AC ON Rheostat Output
	6	AC ON Switch Input
	7	Hz Option
	8	AC Power 2 Output
