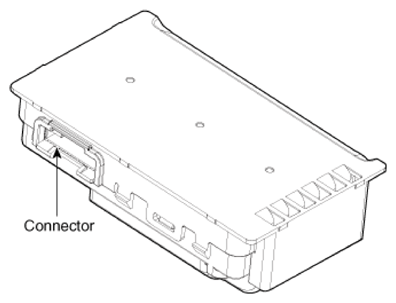

Components And Components Location: Components: [Front]

Courtesy of HYUNDAI MOTOR AMERICA

Connector	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ground (Power)
	2	ACC (Power)
	3	ILED (Amber)
	4	LED (Green)
	5	B-CAN (LOW)
	6	Li-CAN (HIGH)
	7	-
	8	IAU-CAN (LOW)
	9	IAU-CAN (HIGH)
	10	-
	11	IGN 1
	12	Battery (+)
