Diagnostic Flowchart

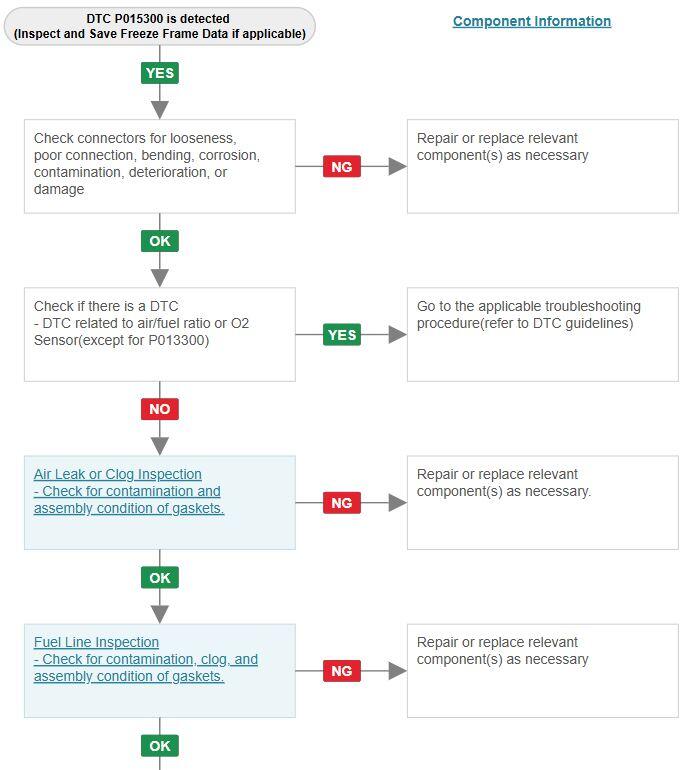

Fig 1: P0153-00 (1 Of 2)
G16779808Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: P0153-00 (2 Of 2)
G00664306Courtesy of HYUNDAI MOTOR AMERICA
