Engine Control System Diagnosis - 3.5L (7 Of 9)
>>
DTC P064A-00: Fuel Pump Control Module 'A'
>>
Troubleshooting
>>

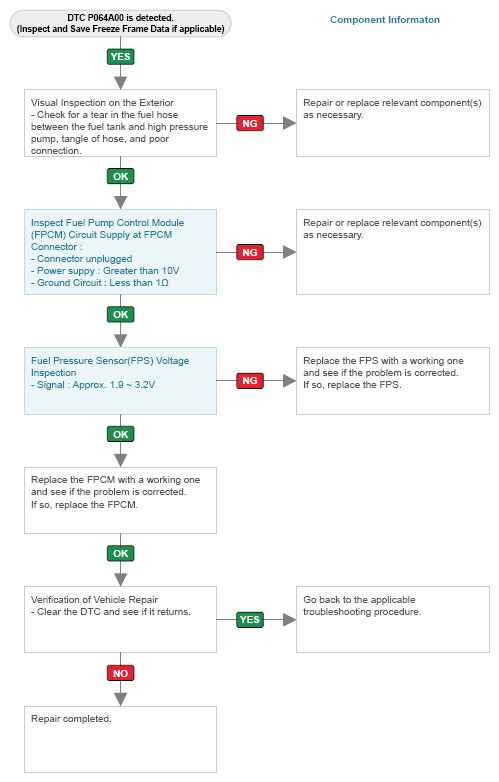

Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
