AVN-FPM Learning Mode

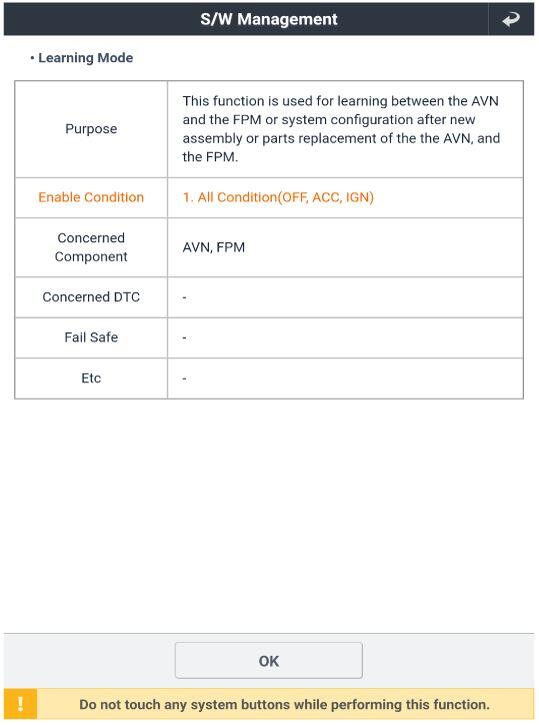

This function is used for learning between the AVN and FPM or system configuration after new assembly or parts replacement of the AVN, and the FPM.
- Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat. Start the engine (IGN ON) and turn on the diagnostic device.

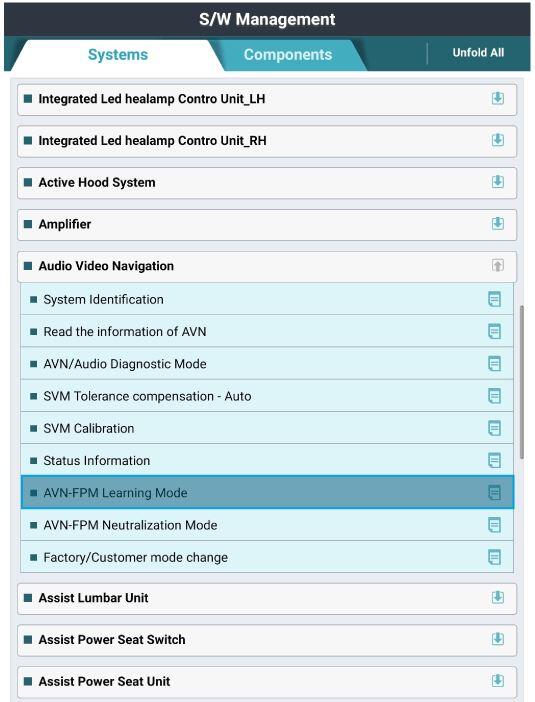

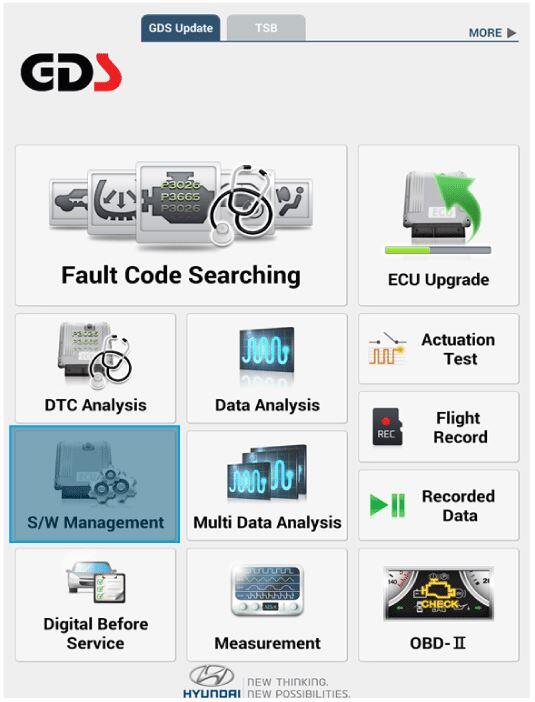

- Select the 'S/W Management' and 'Car model'.
