Driver Power Seat Module

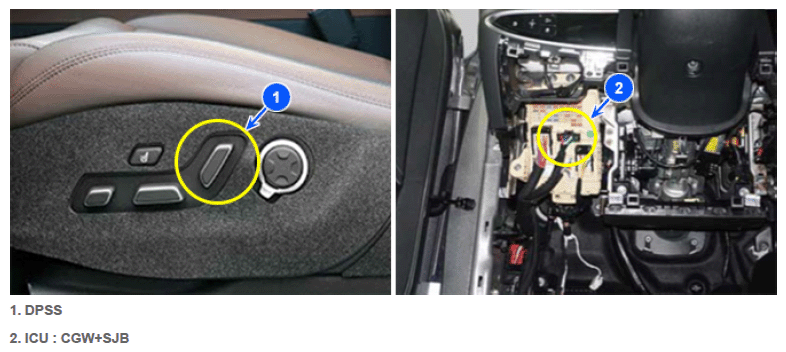

G16841520Courtesy of HYUNDAI MOTOR AMERICA

DPSS* controls the position adjustment of Driver Seat. And it is connected to ICU* to form B-CAN network of the vehicle.

Component Name_ETM Description ETM
DPSS* "DRIVER POWER SEAT SWITCH" Driver Power Seat Switch SD200-6
ICU* CGW SJB → "ICU JUNCTION BLOCK"
→ "ICU JUNCTION BLOCK JPS CONTROL MODULE"
→ "ICU JUNCTION BLOCK"		 → [CGW+SJB] Integrated Central control Unit
→ Central GateWay
→ Smart Junction Block
