Front Radar: Installation
NOTE:
- Put the vehicle on the level ground.
- Take out heavy luggage from the vehicles' seats or trunk.
- Set all tires according to the specified pressure.
- Check wheel alignment.
- Check that the front surface of the front radar is clean.

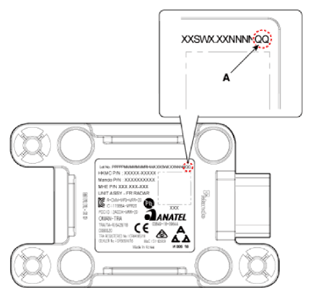

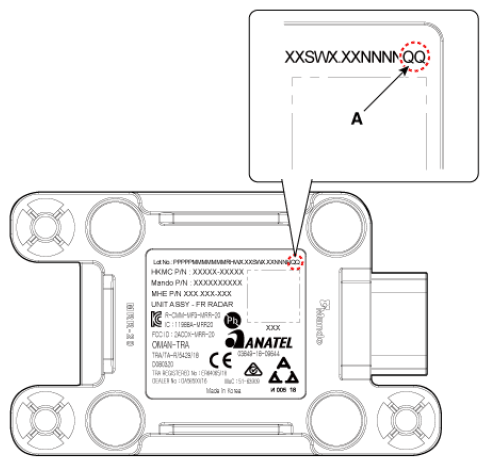

- Check the last 2 digits of Lot. No (A) on label at rear side before installing the front radar.
Information
- The meaning of Lot. No (A) is the vertical deviation angle of front radar inner side.

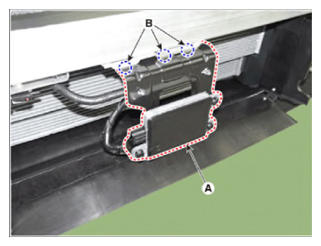

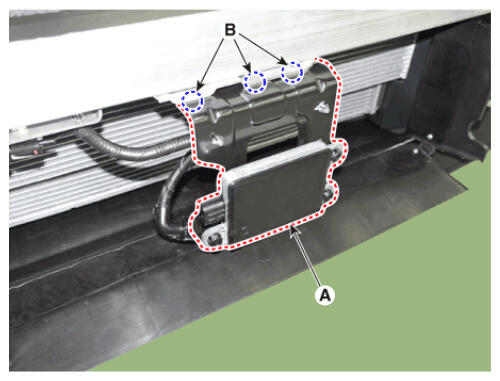

- Install the front radar (A) by tightening the nuts (B).

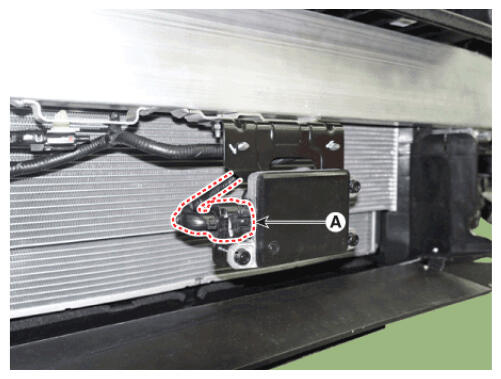

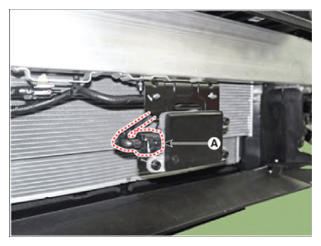

- Connect the front radar connector (A)

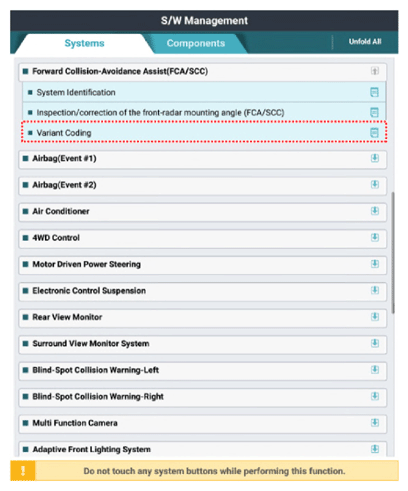

- If replaced the front radar with a new one, perform variant coding procedure by using the diagnostic tool.
- Check and align the front radar mounting angle.

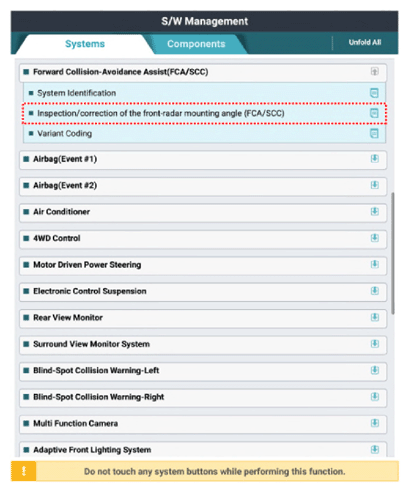

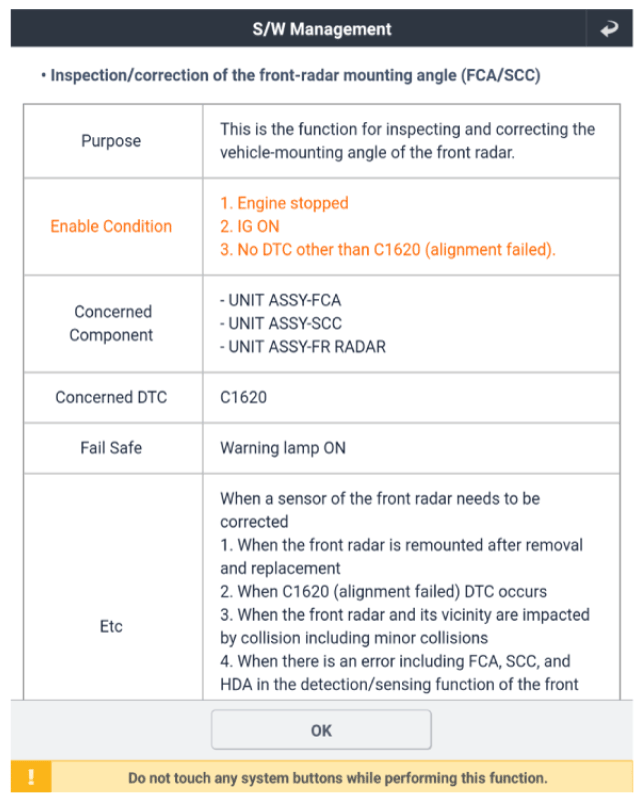

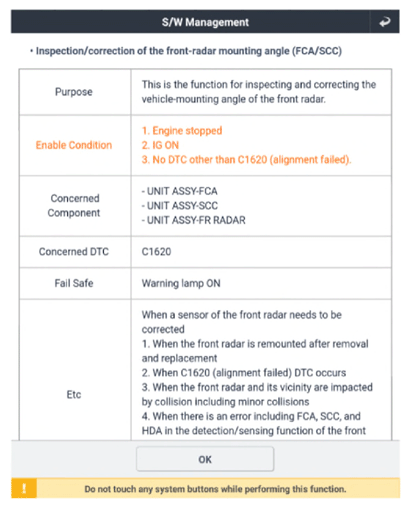

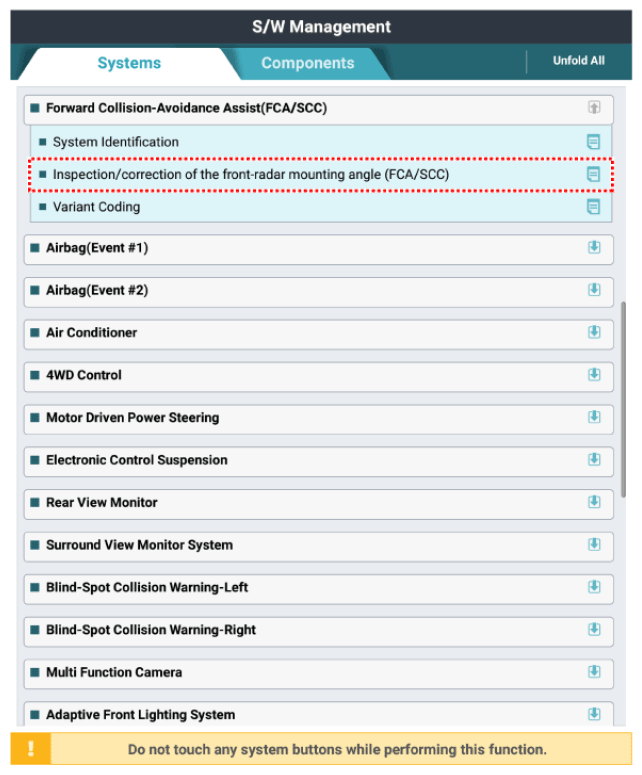

- Perform the "inspection/correction of the front-radar mounting angle" using the diagnostic tool.

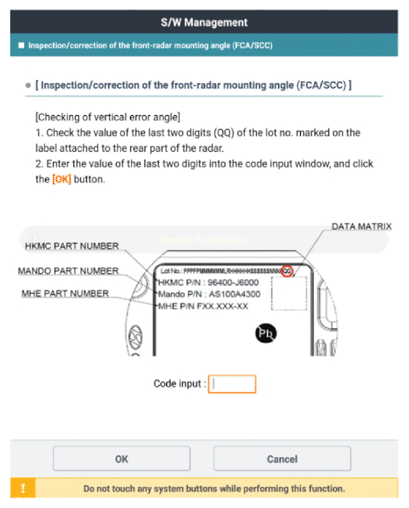

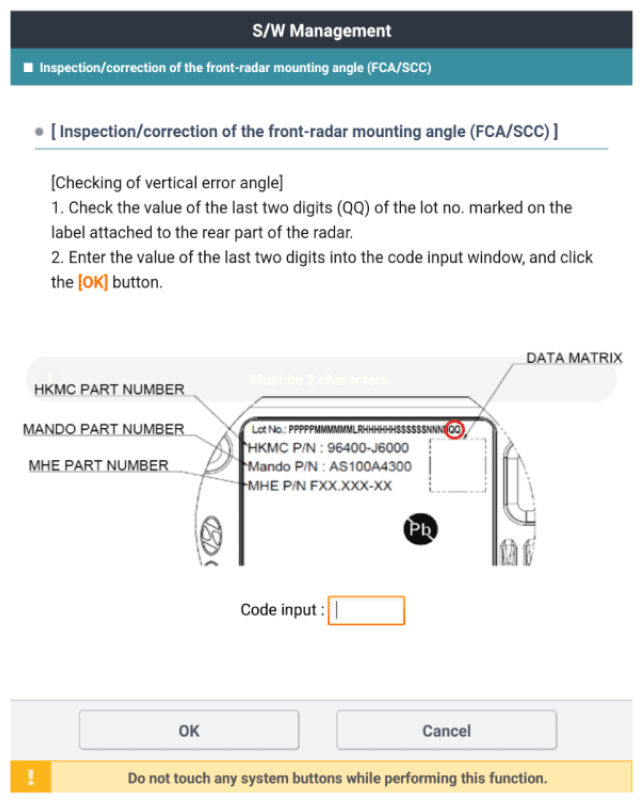

- Input 2 digits of value in the code input box, then press "OK"

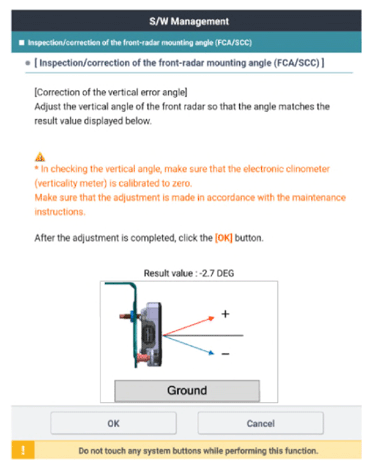

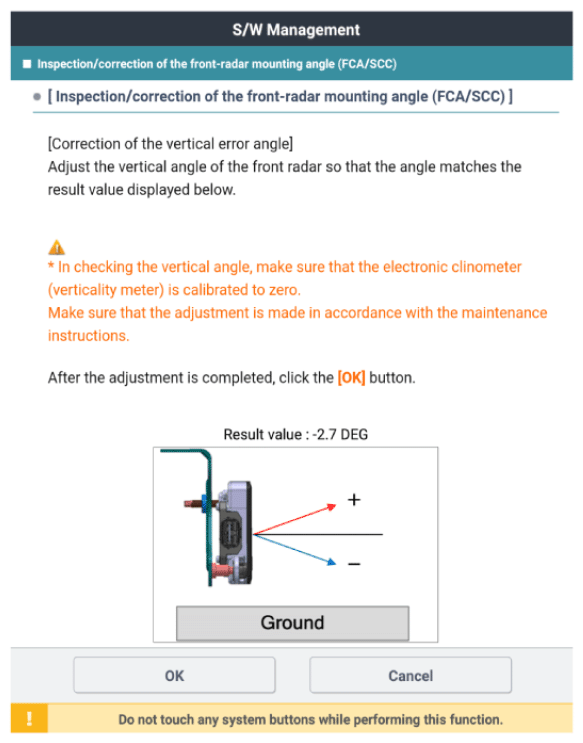

- Check the vertical angle which is compensated error on diagnostic tool.
Information

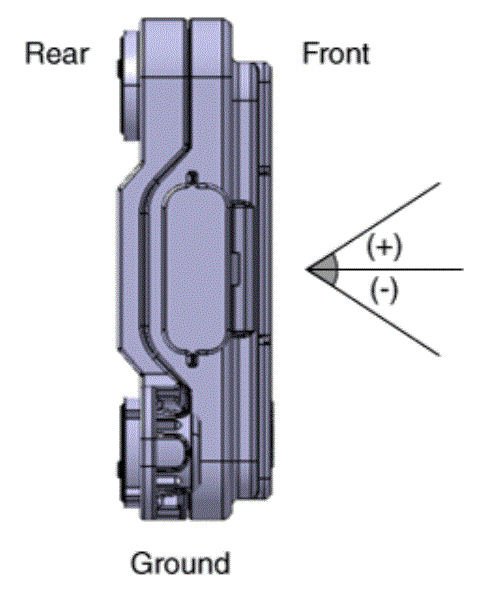

- The result value is final goal vertical angle which is compensated inner error of criteria vertical installation angle -1°.
- Check the front radar vertical angle by using the vertical protractor (tiltmeter).NOTE:
- Make sure to perform zero setting before using vertical protractor. (perform this procedure periodically)
- Be careful with +/- readings when finding true vertical using vertical protractor.

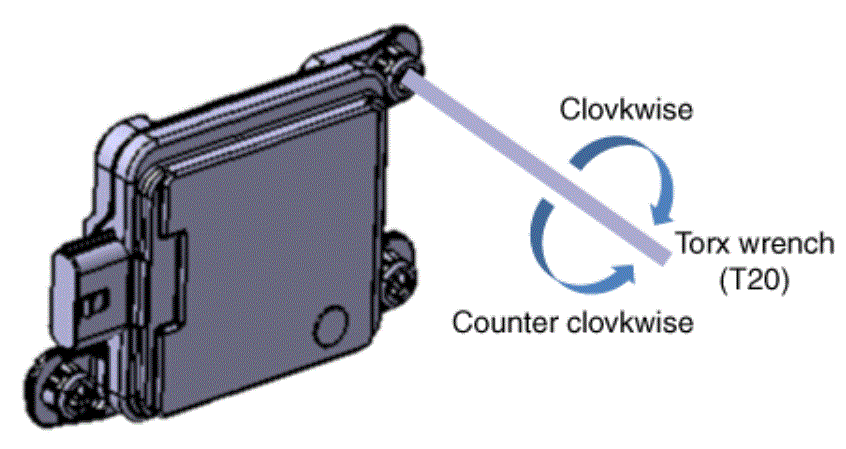

- Adjust to "target vertical angle" by turning adjusting screw of front radar.

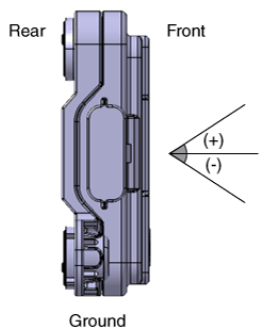

- turning clockwise: adjusting (+) angle
- turning counterclockwise: adjusting (-) angle
Number of adjustment screw rotation Correction angle Clockwise Counter clockwise 0.5 + 0.5° - 0.5° 1 + 1.0° - 1.0° 1.5 + 1.5° - 1.5° 2 + 2.0° - 2.0° 2.5 + 2.5° - 2.5° - Perform the "inspection/correction of the front-radar mounting angle" using the diagnostic tool.
- Install the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
- Perform the front radar inspection/correction procedure by using the SST.
(Refer to Front Radar - "ADJUSTMENT ")
