Liftgate Latch: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Wear gloves to protect hands from injury.

Disconnect the negative (-) battery terminal.
Remove the Liftgate lower trim.
Refer to Liftgate - "LIFTGATE TRIM ")

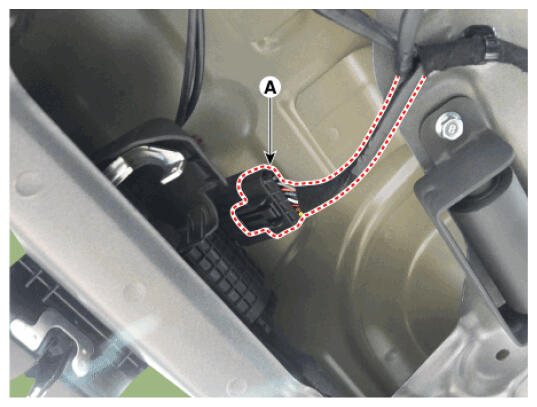

Disconnect the Liftgate latch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

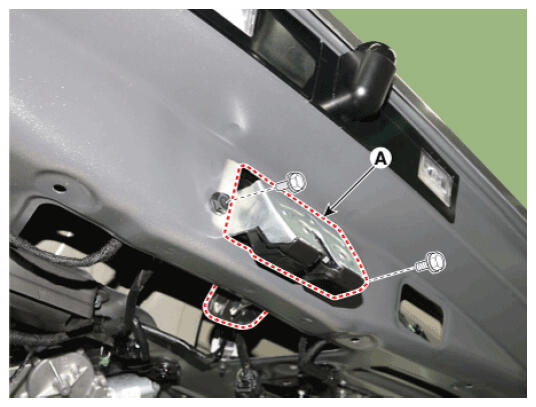

Loosen the mounting bolts, remove the liftgate latch assembly (A).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the liftgate locks/unlocks and opens/closes properly.
- Make sure the connectors are connected in properly.
