Liftgate Lift: Replacement

Information

Take care to not let the liftgate fall on you as the lifts are removed. Have a helper hold the liftgate open, or use a secure method to hold it open.

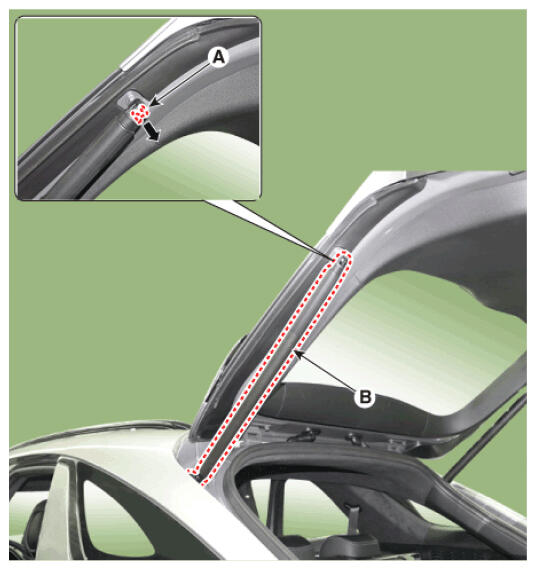

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter and remove the liftgate lifter (B).

Courtesy of HYUNDAI MOTOR AMERICA
Push the socket of the lifter into the bracket for installation.
Information
- Make sure the liftgate locks and opens properly and locks securely.
