Removal And Installation

Disconnect the (-) battery terminal.
Remove the front wheel & tire.
(Refer to Suspension System - "WHEEL ")
Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

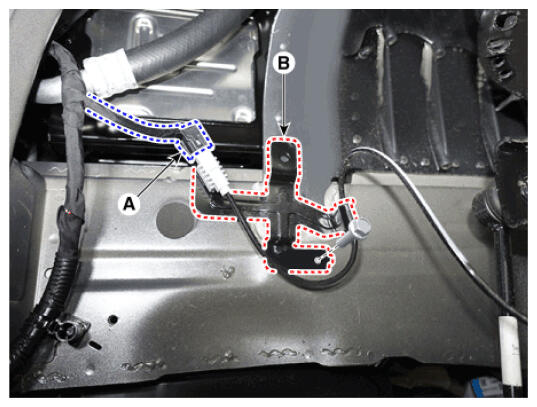

Disconnect the front wheel speed sensor connector (A)
Remove the front wheel speed sensor bracket (B) by removing the bolt.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

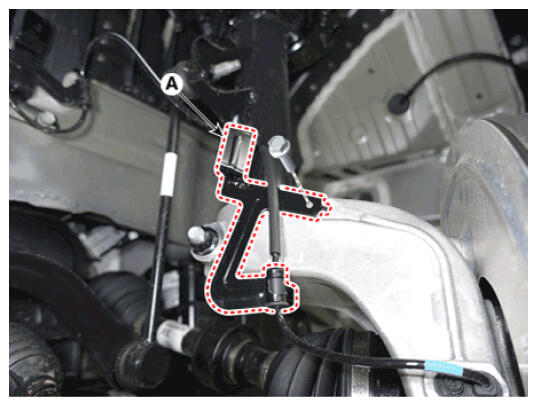

Remove the front wheel speed sensor bracket (A) by removing the bolt.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

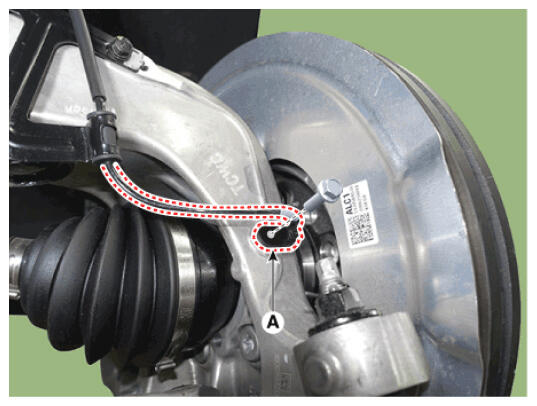

Remove the bolt and then disconnect the front wheel speed sensor (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
