Driver Airbag (DAB) Module And Clock Spring: Installation

Set the front tires straight-ahead.
Turn the ignition switch OFF.
Disconnect the battery negative cable from the battery and wait for at least three minutes before beginning the work.
Connect the clock spring harness connector and horn harness connector to the clock spring.

Factory setting for the clock spring is neutral.

If white cable is visible through the product's Neutral Check Window, then the spring is at neutral.
If white cable is not visible through the product's Neutral Check Window, then manually adjust the setting to neutral.

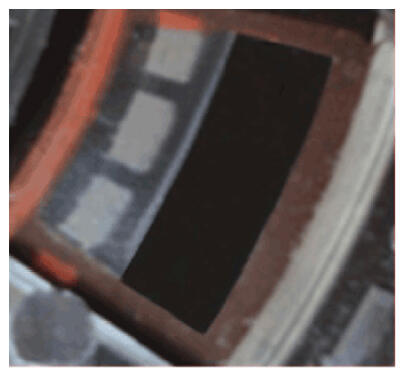

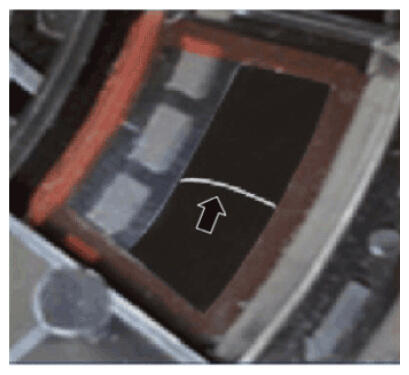

Neutral Check Window: Normal	Neutral Check Window: Fault
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
White cable is visible through Neutral Check Window	White cable is not visible through Neutral Check Window

Clock spring manual neutral setting procedure.

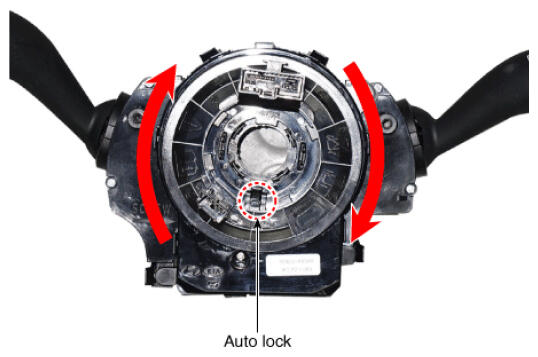

Press the Auto Lock and turn clockwise 3 rotations.

Courtesy of HYUNDAI MOTOR AMERICA

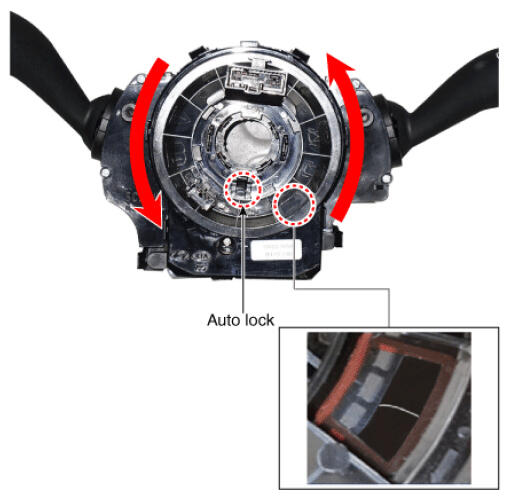

If white cable is visible through the Neutral Check Window, then the spring is set to neutral.

Courtesy of HYUNDAI MOTOR AMERICA

Install the steering wheel column shroud and the steering wheel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
Install the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Connect the Driver Airbag (DAB) module connector and horn connector, and then install the Driver Airbag (DAB) module on the steering wheel.
Connect the battery negative cable.
After installing the airbag, confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
- Make sure horn button works.
