[Clock Spring]

  1. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  2. Remove the steering wheel column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

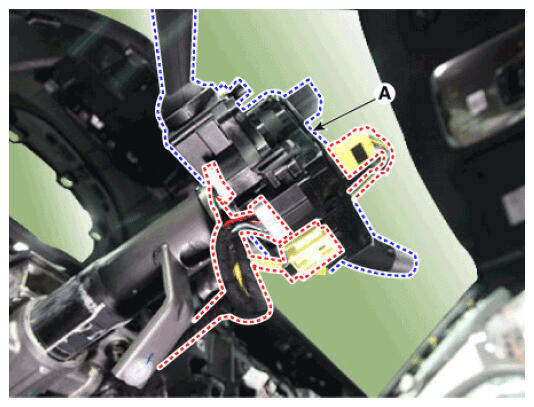

  3. Remove the multifunction switch assembly (A) after disconnecting the clock spring wiring harness and multifunction switch harness connector.
G16854850Courtesy of HYUNDAI MOTOR AMERICA
