Disassembly And Reassembly

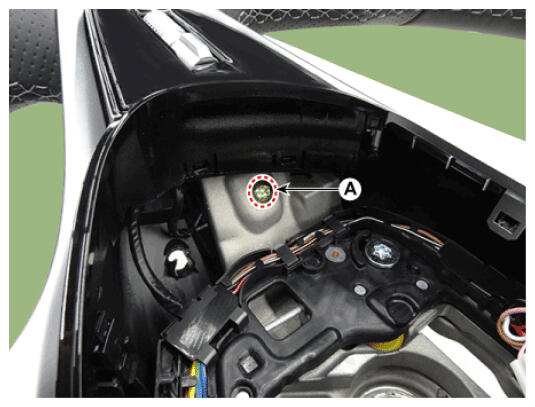

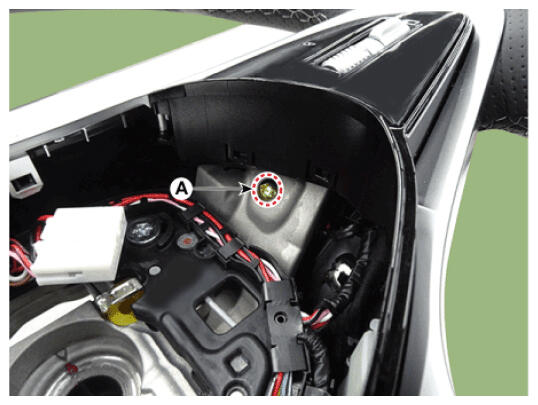

  1. Loosen the paddle shift switch mounting screws (A).
    G16854760Courtesy of HYUNDAI MOTOR AMERICA
    G16854761Courtesy of HYUNDAI MOTOR AMERICA

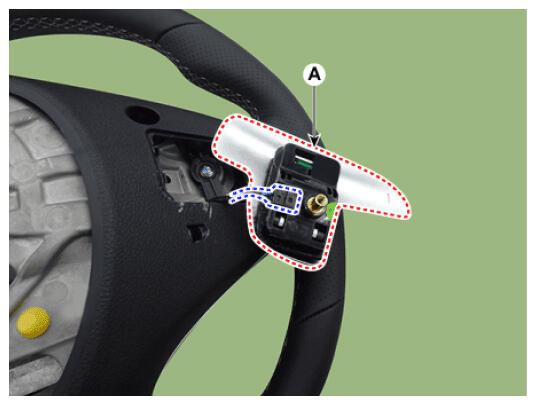

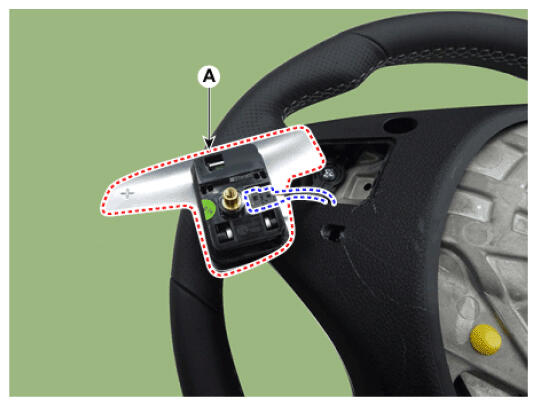

  2. Remove the paddle shift switch (A) after disconnecting the connector.
    G16854762Courtesy of HYUNDAI MOTOR AMERICA
    G16854763Courtesy of HYUNDAI MOTOR AMERICA

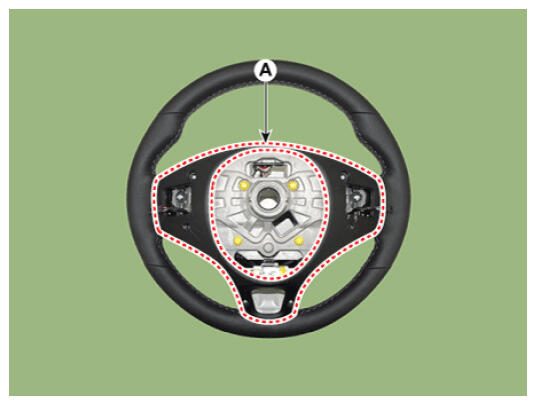

  3. Remove the lower cover (A) after loosening the screws.
    G16854764Courtesy of HYUNDAI MOTOR AMERICA

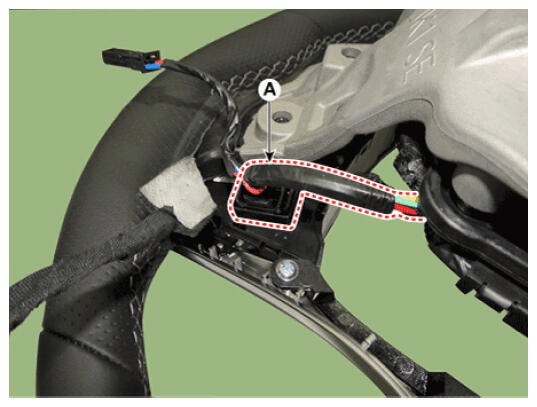

  4. Disconnect the remote control switch connector (A).
    G16854765Courtesy of HYUNDAI MOTOR AMERICA
    G16854766Courtesy of HYUNDAI MOTOR AMERICA

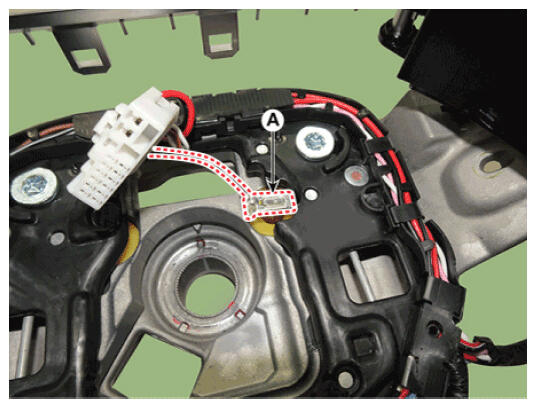

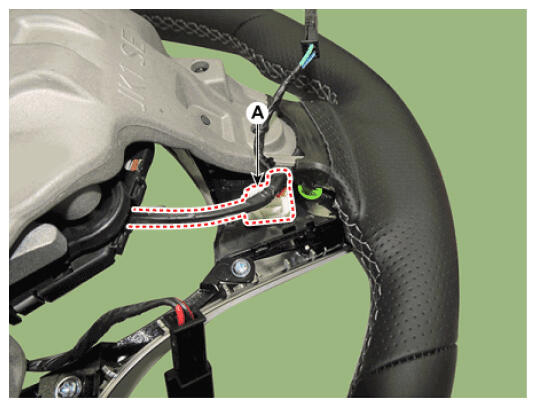

  5. Disconnect the ground connector (A).
    G16854767Courtesy of HYUNDAI MOTOR AMERICA

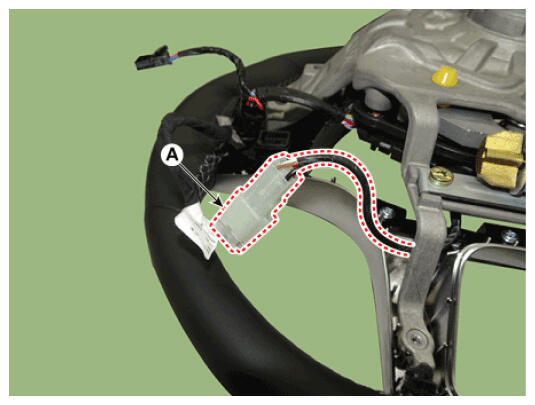

  6. Disconnect the heated steering wheel connector (A).
    G16854768Courtesy of HYUNDAI MOTOR AMERICA

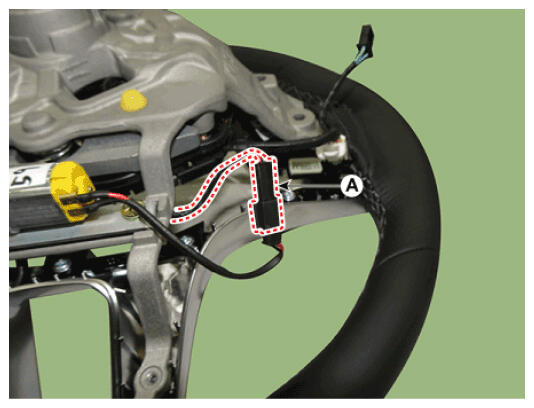

  7. Disconnect the haptic motor connector (A).
    G16854769Courtesy of HYUNDAI MOTOR AMERICA

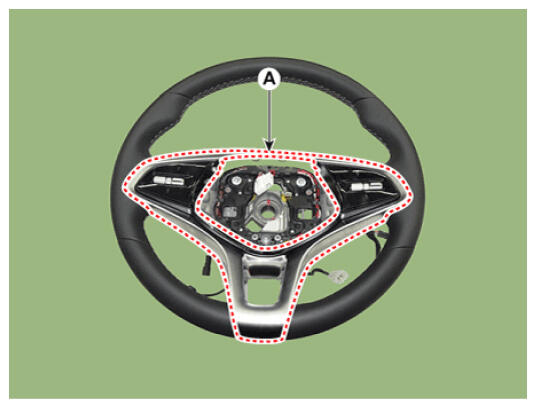

  8. Remove the remote control switch bezel (A).
    G16854770Courtesy of HYUNDAI MOTOR AMERICA

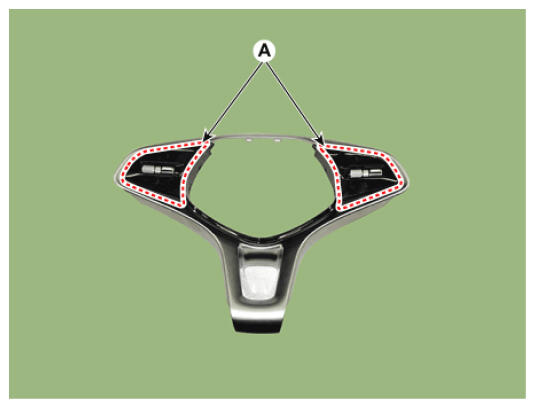

  9. Remove the remote control switch (A).
    G16854771Courtesy of HYUNDAI MOTOR AMERICA

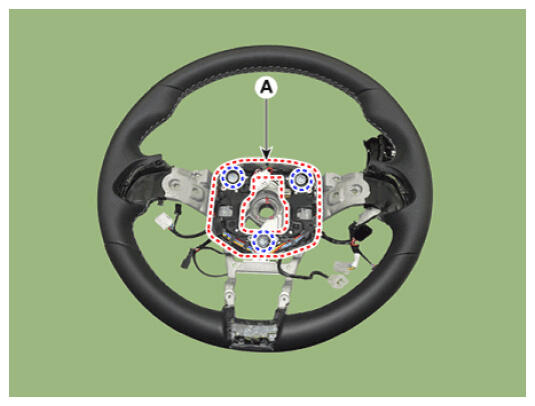

  10. Remove the horn plate & wiring harness (A) after loosening the screws.
    G16854772Courtesy of HYUNDAI MOTOR AMERICA

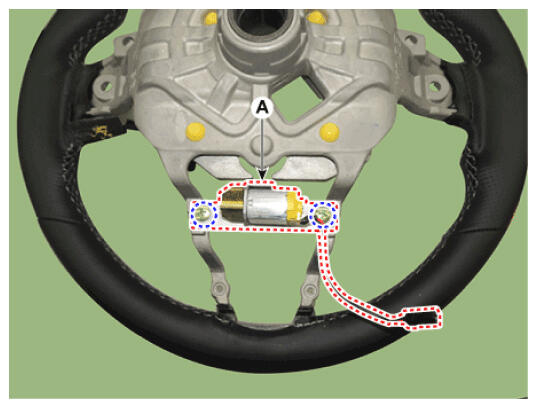

  11. Remove the haptic motor (A) after loosening the screws.
    G16854773Courtesy of HYUNDAI MOTOR AMERICA
  12. To reassembly, reverse the disassembly procedures.
