Front View Camera: Removal

  1. Disconnect the negative (-) battery terminal.

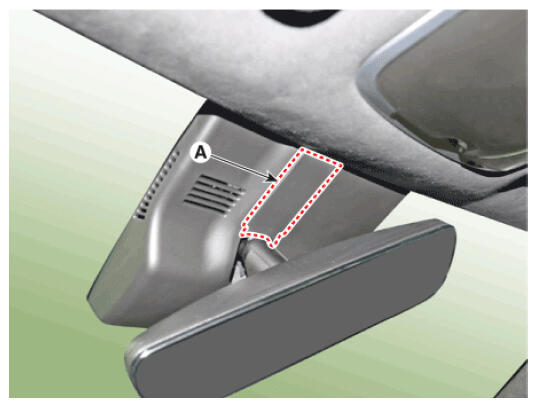

  2. Remove the inside rear view mirror cover (A).
    G16856630Courtesy of HYUNDAI MOTOR AMERICA

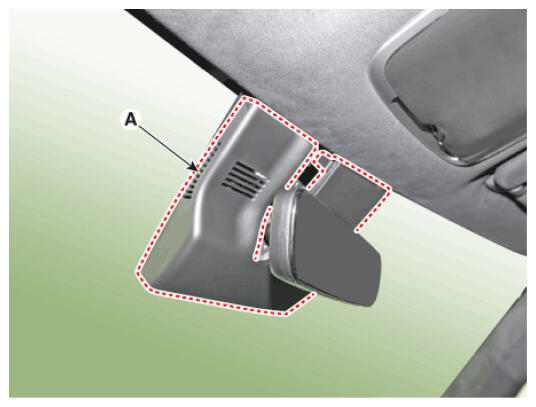

  3. Remove the rain sensor cover (A).
    G16856631Courtesy of HYUNDAI MOTOR AMERICA

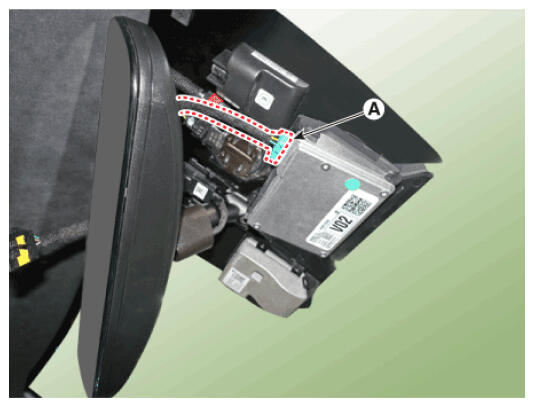

  4. Disconnect the front view camera connector (A).
    G16856632Courtesy of HYUNDAI MOTOR AMERICA

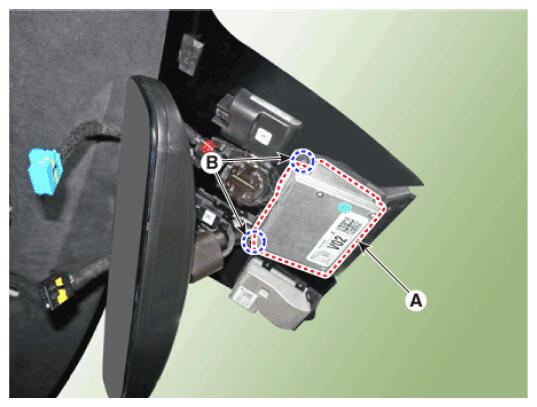

  5. Separate the fixed points (B) of coupler, remove the front view camera (A).
    NOTE:
    • Be careful not to break the fixed points (B).
    G16856633Courtesy of HYUNDAI MOTOR AMERICA
