Checking Components

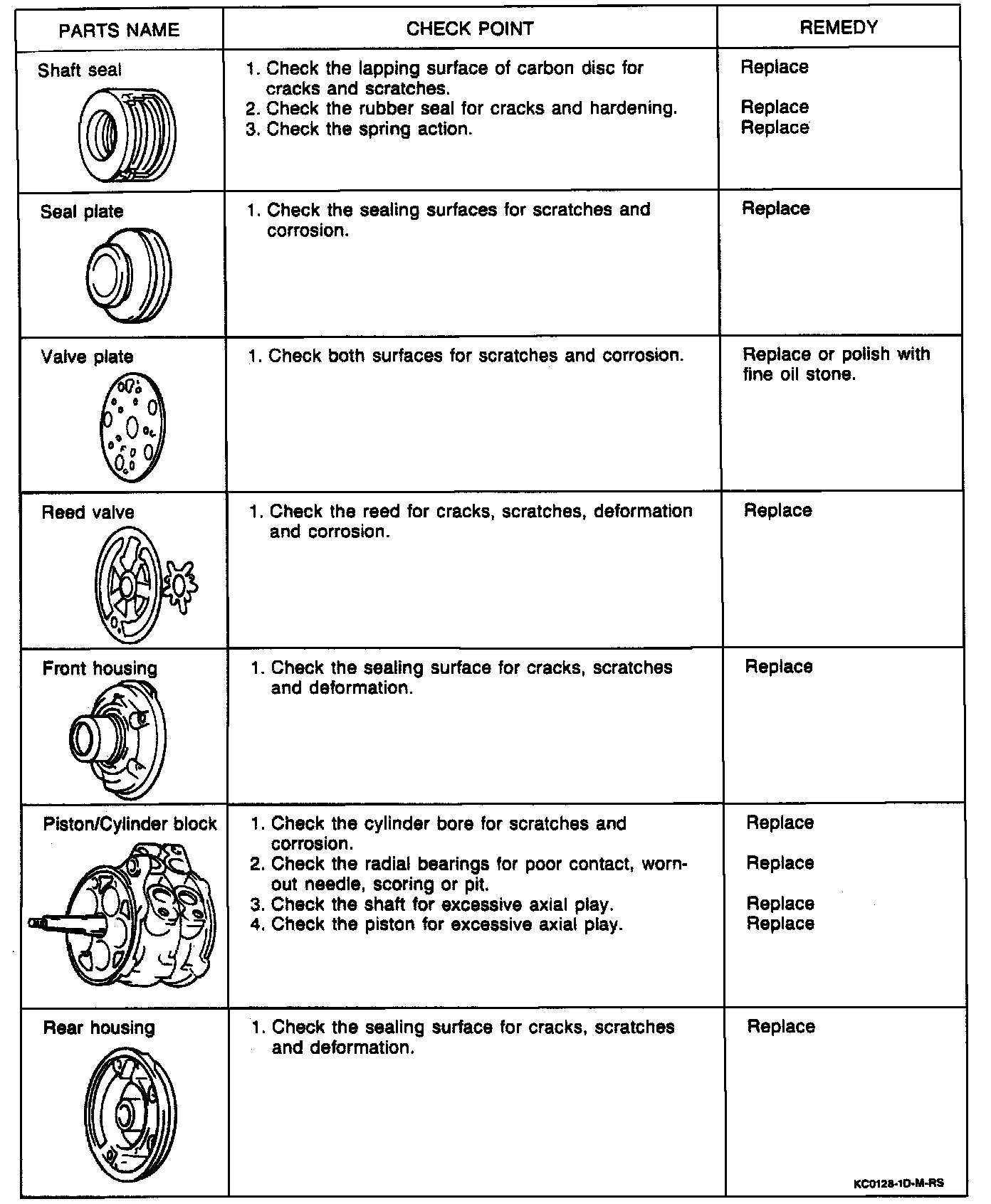

Component Check List:






Clean all parts with cleaning solvent and apply compressor oil on all parts (refer to illustration).
