Front Wiper Switch
NOTE:
Before testing, ensure fuses, circuit breakers, relays and grounds are good.
- Remove 2 small square covers on top, rear of meter hood. Remove 2 retaining screws located underneath covers. Remove 4 retaining screws underneath meter hood, above steering column. Pull meter hood assembly outward enough to disconnect wiper switch harness connector.

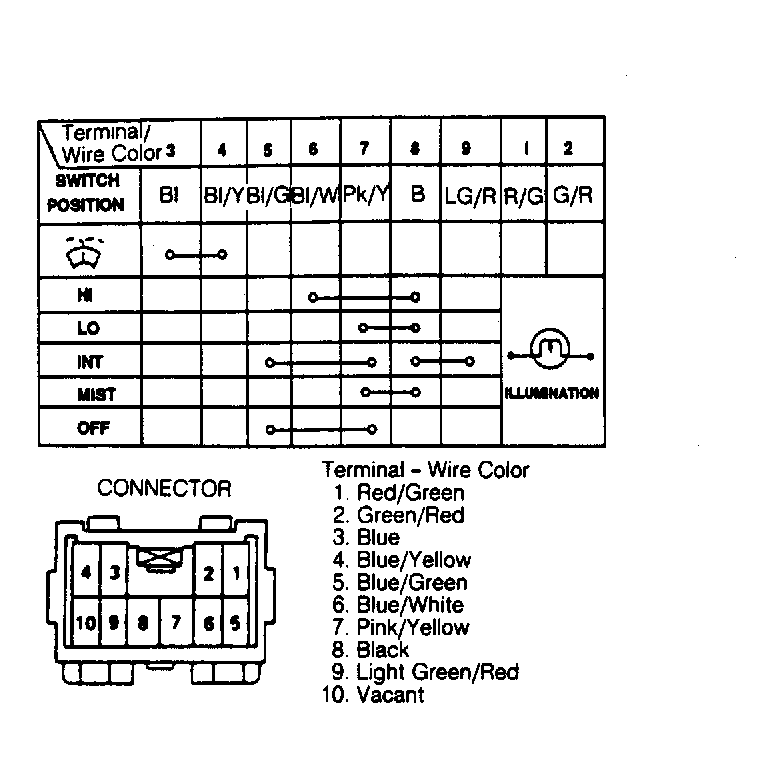

- Using ohmmeter, check wiper switch positions for continuity by probing between related terminals of wiper switch connector. See Fig 1 . Replace wiper switch assembly as required.
