Torque Specifications

Cylinder Head Bolts

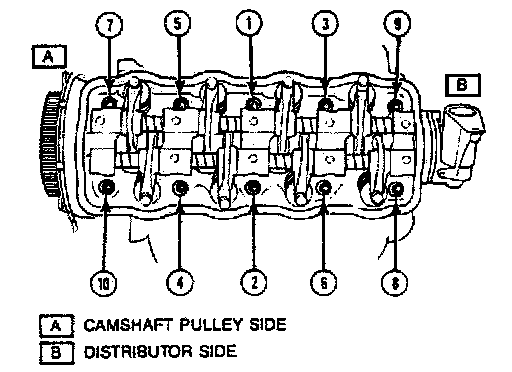

In the sequence shown (refer to image):

^ Torque bolts to 54 lbs. ft.
