Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/T Control Module (ATCM) | Behind left side of dash, near steering column. See Figure . |
| Daytime Running Light (DRL) Controller | Behind left side of dash. |

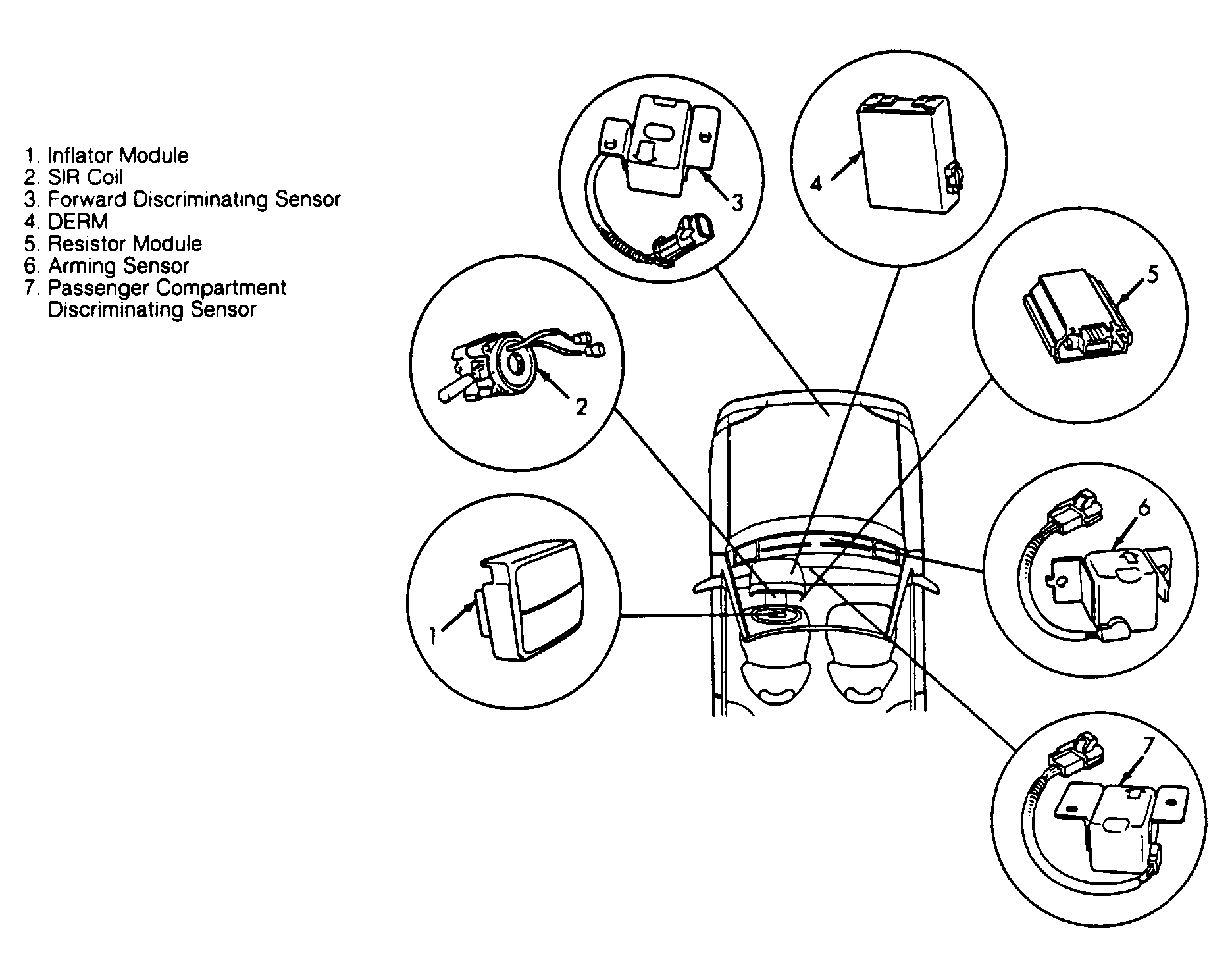

| Diagnostic Energy Reserve Module (DERM) | Behind left side of dash, right of steering column. See Figure . |
| Diode Module | Behind left side of dash, left of steering column. See Figure . |
| Electronic Control Module (ECM) | At left side of dash, behind instrument cluster. See Figure . |
| Seat Belt Controller | Behind left side of dash, left of steering column. |
| Audio Alarm Module | Behind right side of dash, below radio. |
