Engage Switch Check

Disconnect engage switch electrical connector. Using an ohmmeter, perform continuity check. See Fig 1 . If continuity is not as specified, replace engage switch.

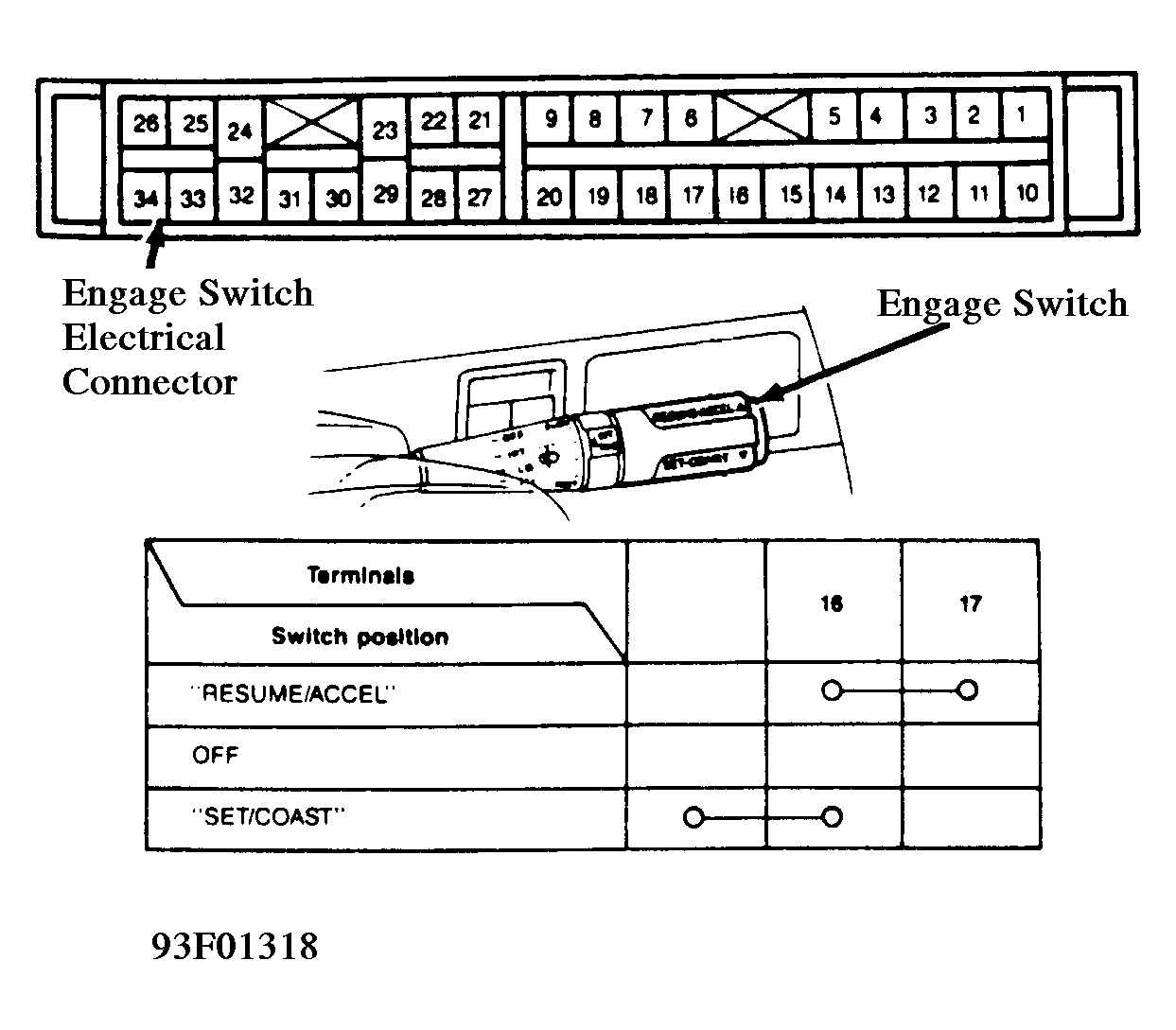

Fig 1: Checking Engage Switch

Courtesy of GENERAL MOTORS CORP.
