Parking Brake Switch Check

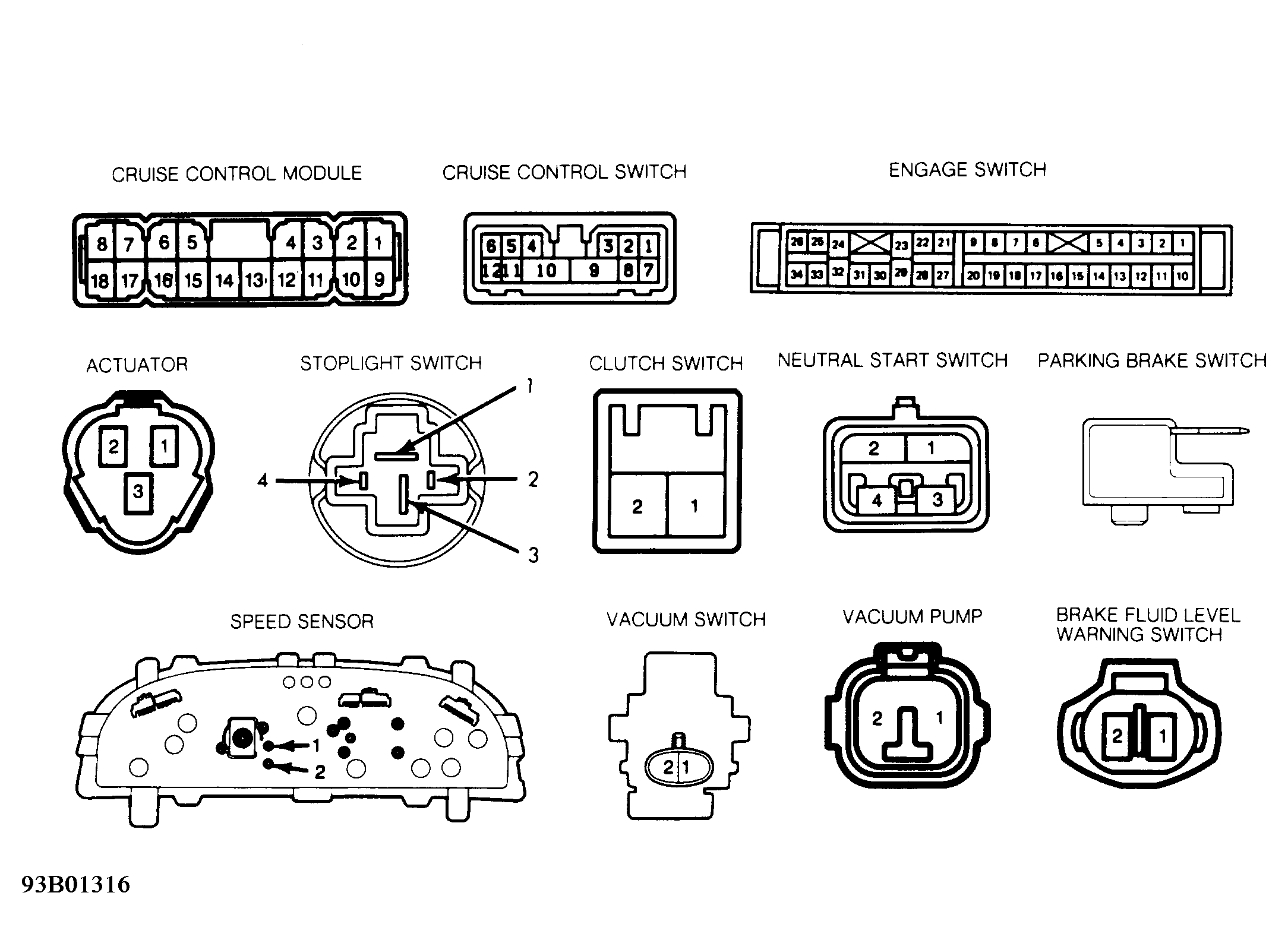

Disconnect parking brake switch electrical connector. With parking brake applied, continuity should be present between parking brake switch terminal and switch set nut. See Figure -32. With parking brake released, no continuity should be present. If continuity is not as specified, replace parking brake switch.
