Stoplight Switch Check

Disconnect stoplight switch electrical connector. Using an ohmmeter, perform continuity check. See Fig 1 . If continuity is not as specified, replace stoplight switch.

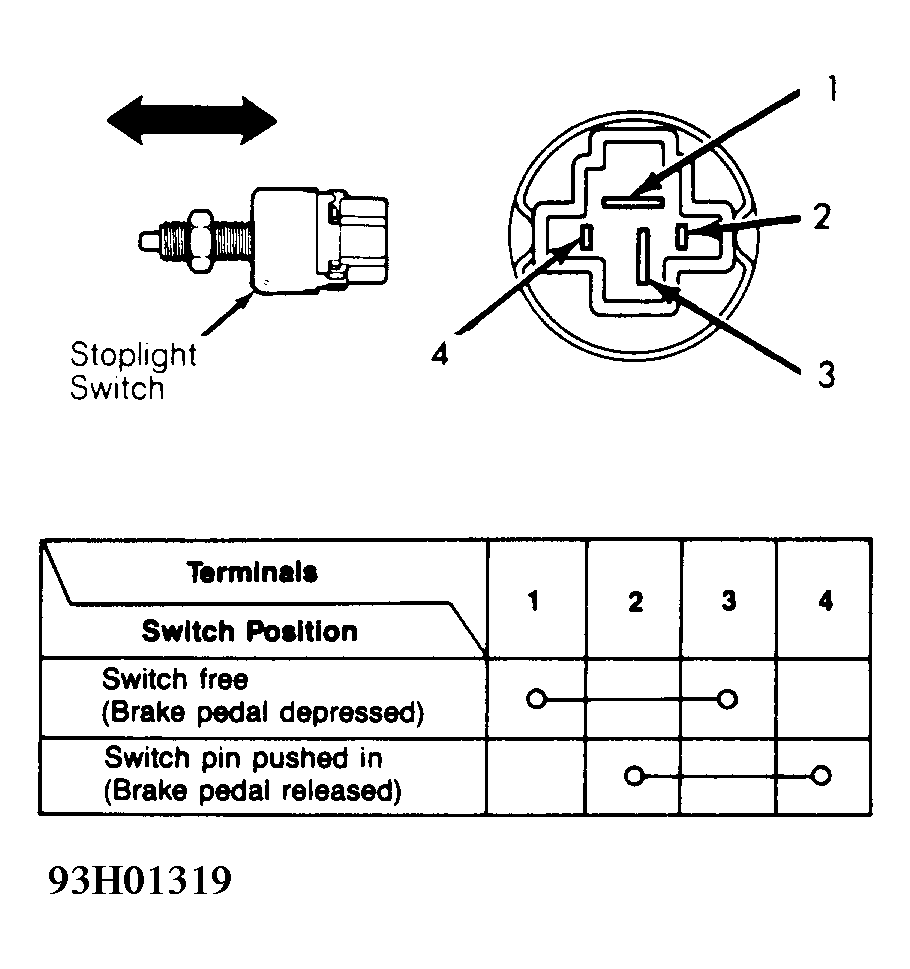

Fig 1: Checking Stoplight Switch

Courtesy of GENERAL MOTORS CORP.
