Vacuum Switch Check

Apply approximately 6.3-7 in. Hg vacuum to vacuum switch. Using an ohmmeter, no continuity should be present between vacuum switch terminals. See Fig 1 . With vacuum released, continuity should be present. If continuity is not as specified, replace vacuum switch.

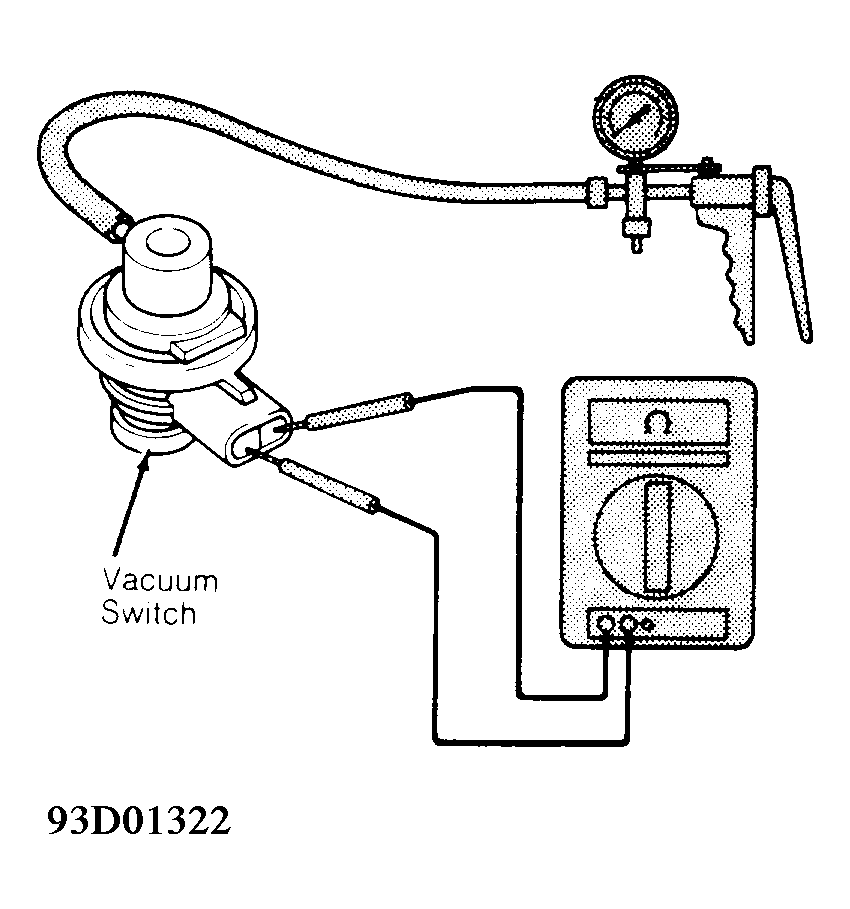

Fig 1: Checking Vacuum Switch

Courtesy of GENERAL MOTORS CORP.
