Fuse Block

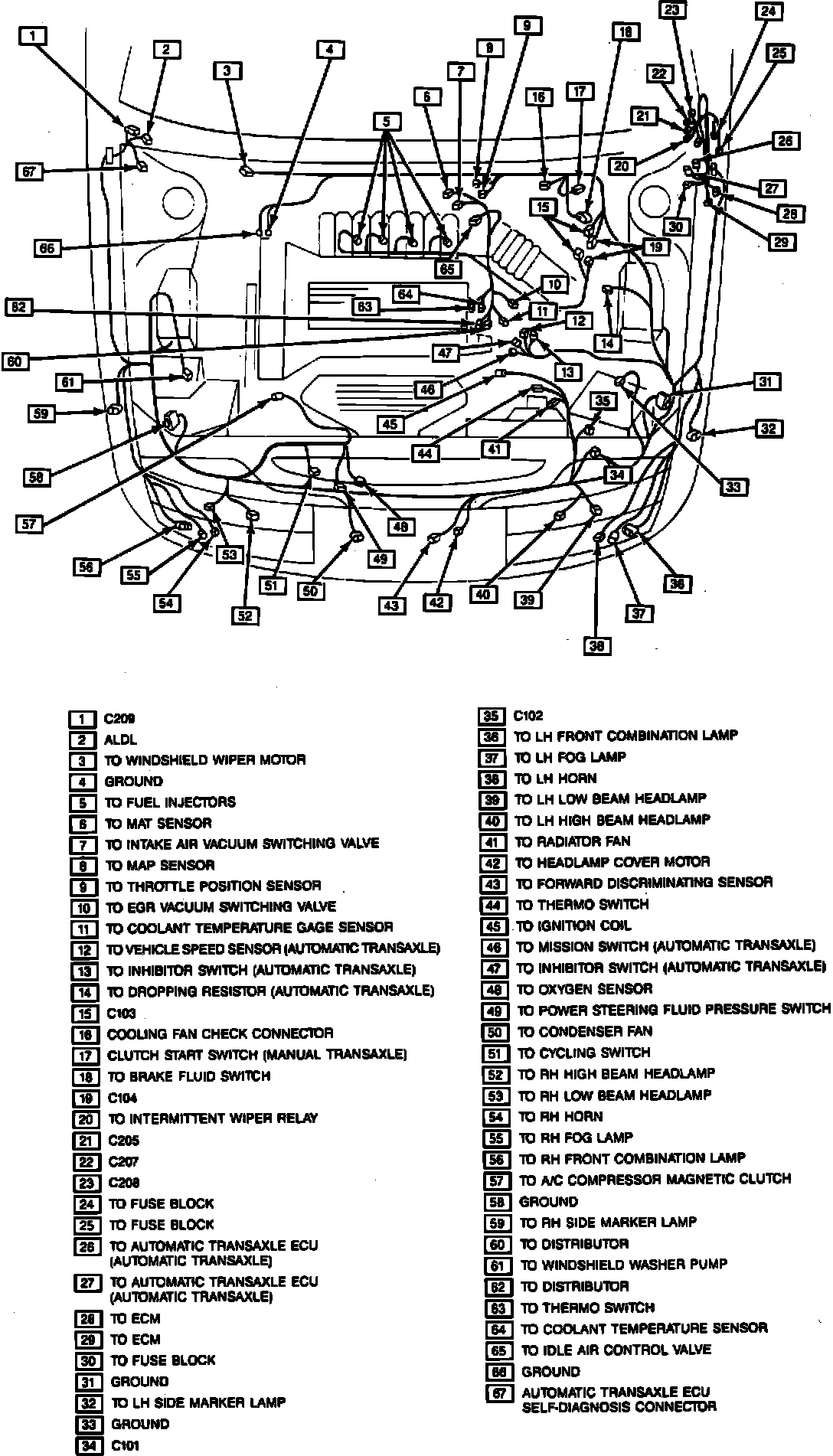

Engine Compartment Components:
Behind LH Side Of I/P, Attached To Junction Block
Applicable to: 1.6L DOHC & 1.8L Engines
