Wiper/Washer Systems: Testing

NOTE: Before testing, ensure fuses, circuit breakers, relays and grounds are good. For testing, see Fig 1 -17. To identify connectors, terminals and circuits, See appropriate chassis wiring in the WIRING DIAGRAMS Section.

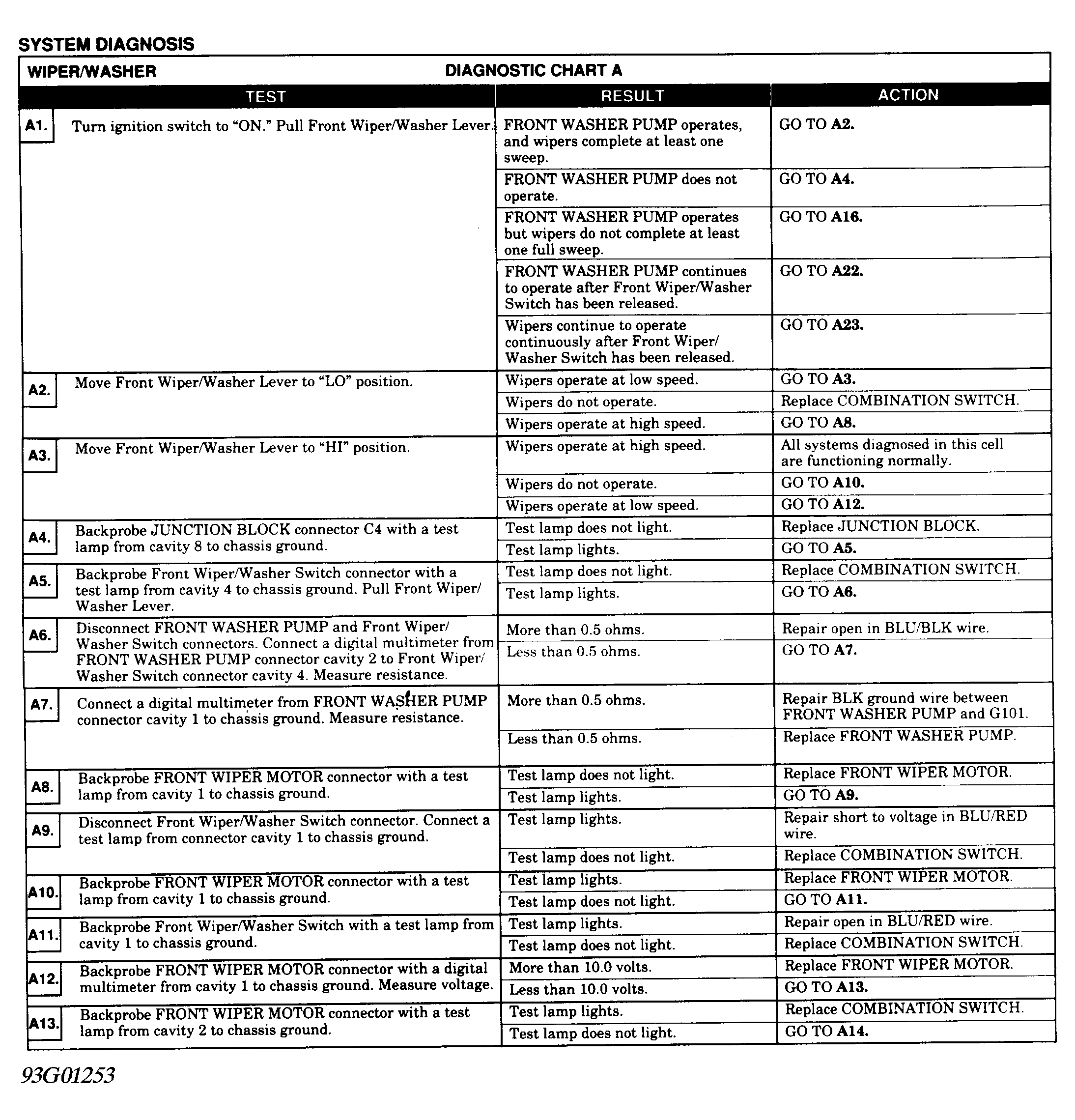

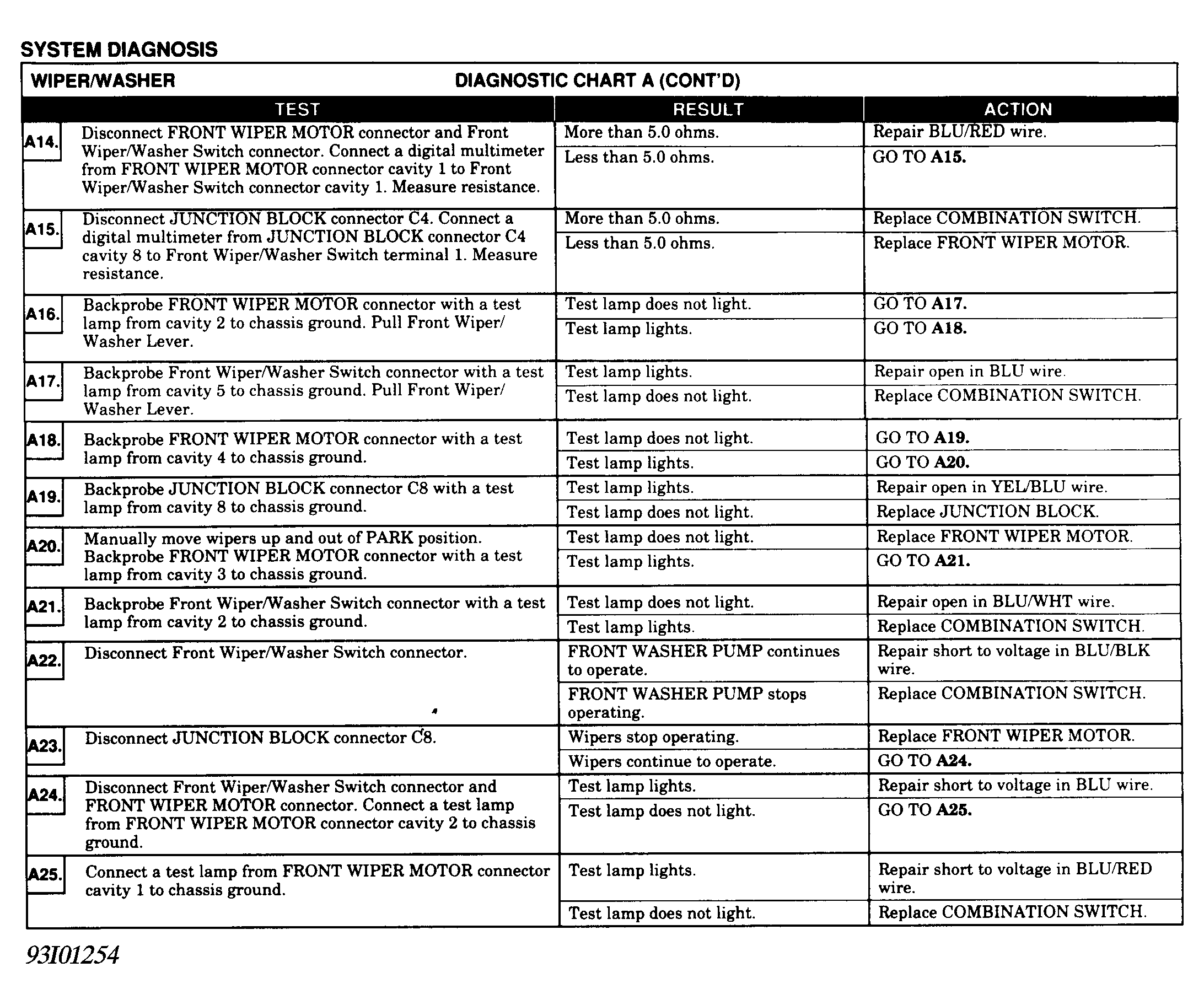

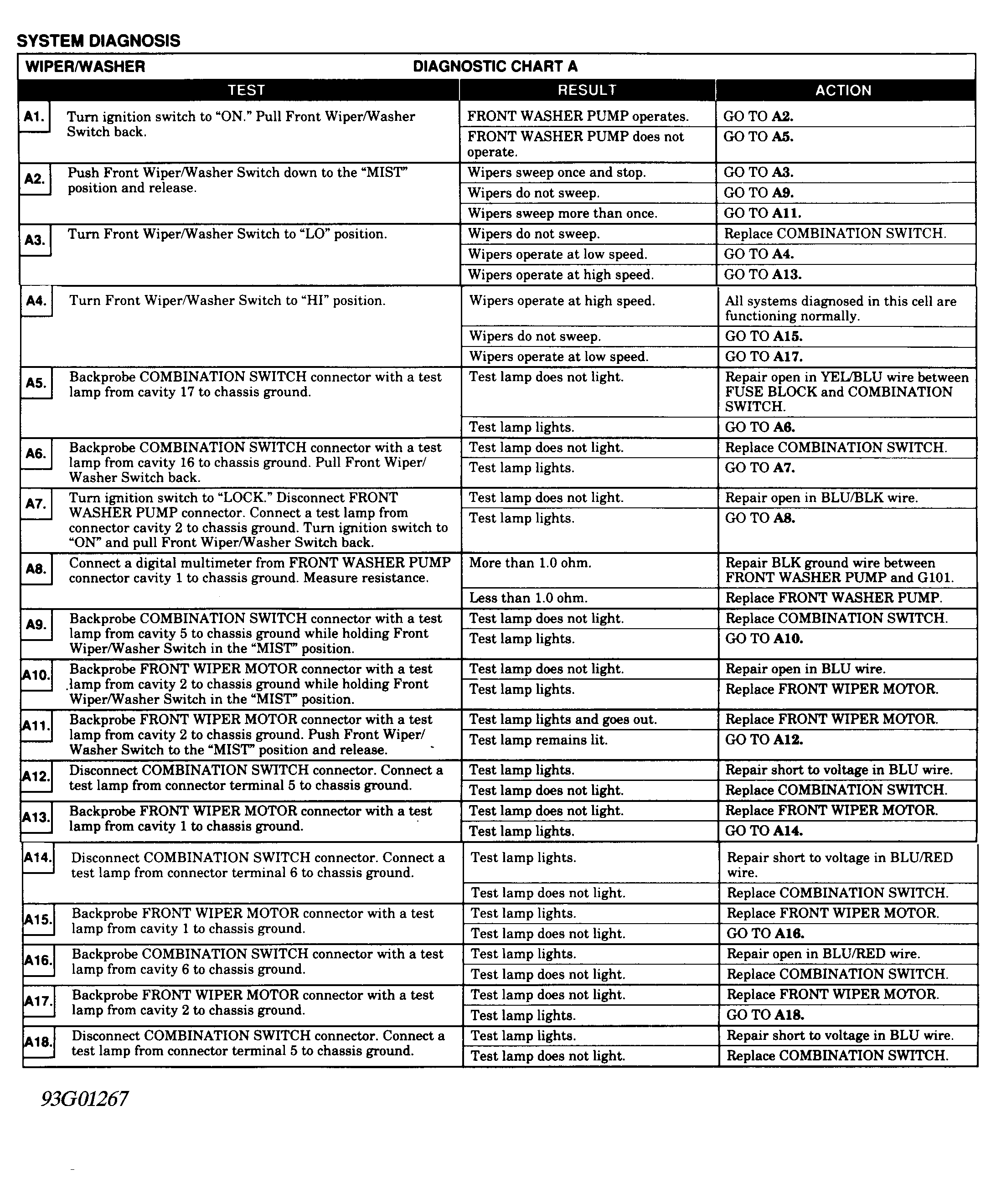

Fig 1: Standard Wiper System Testing - 1 Of 2 (Metro)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Standard Wiper System Testing - 2 Of 2 (Metro)

Courtesy of GENERAL MOTORS CORP.

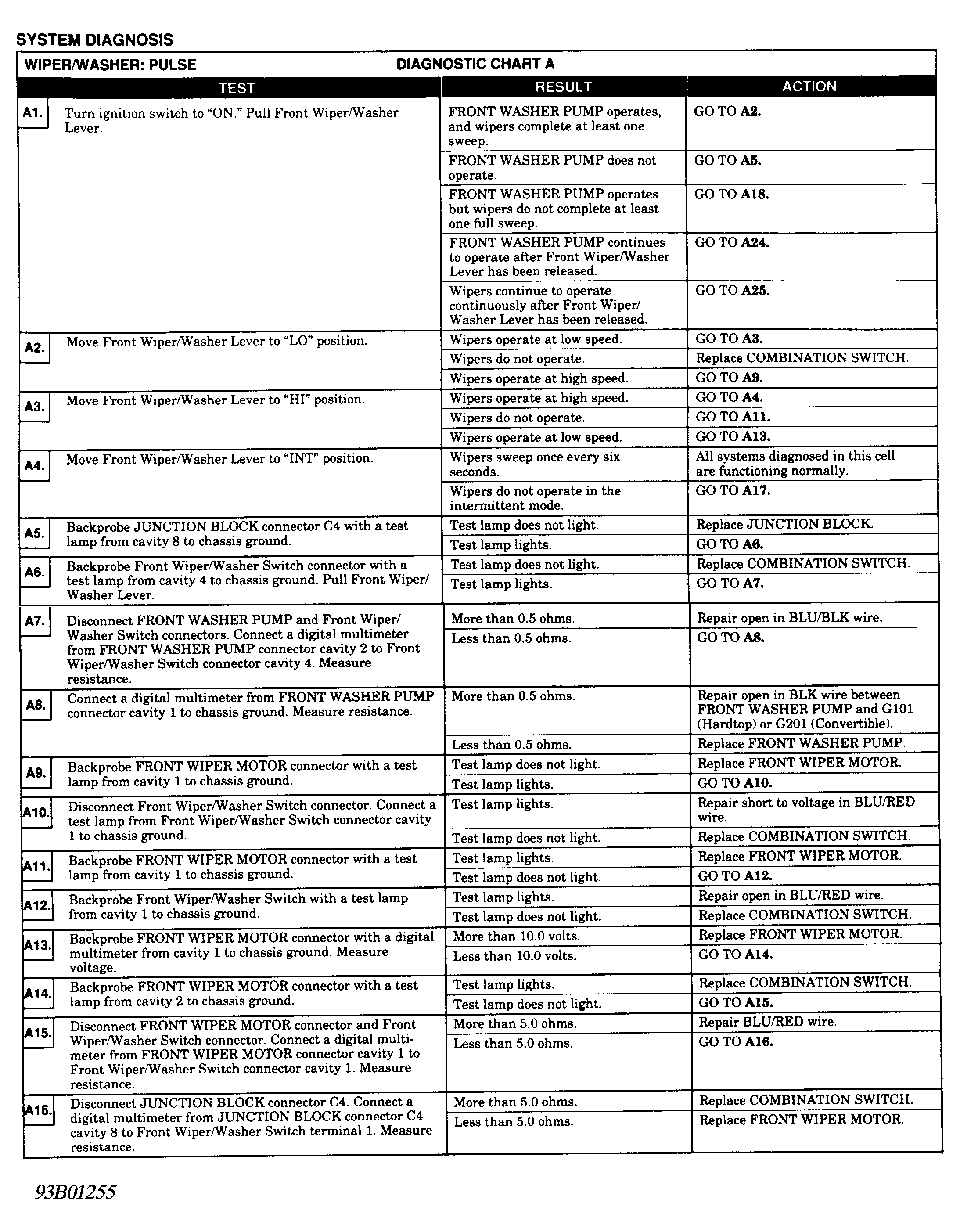

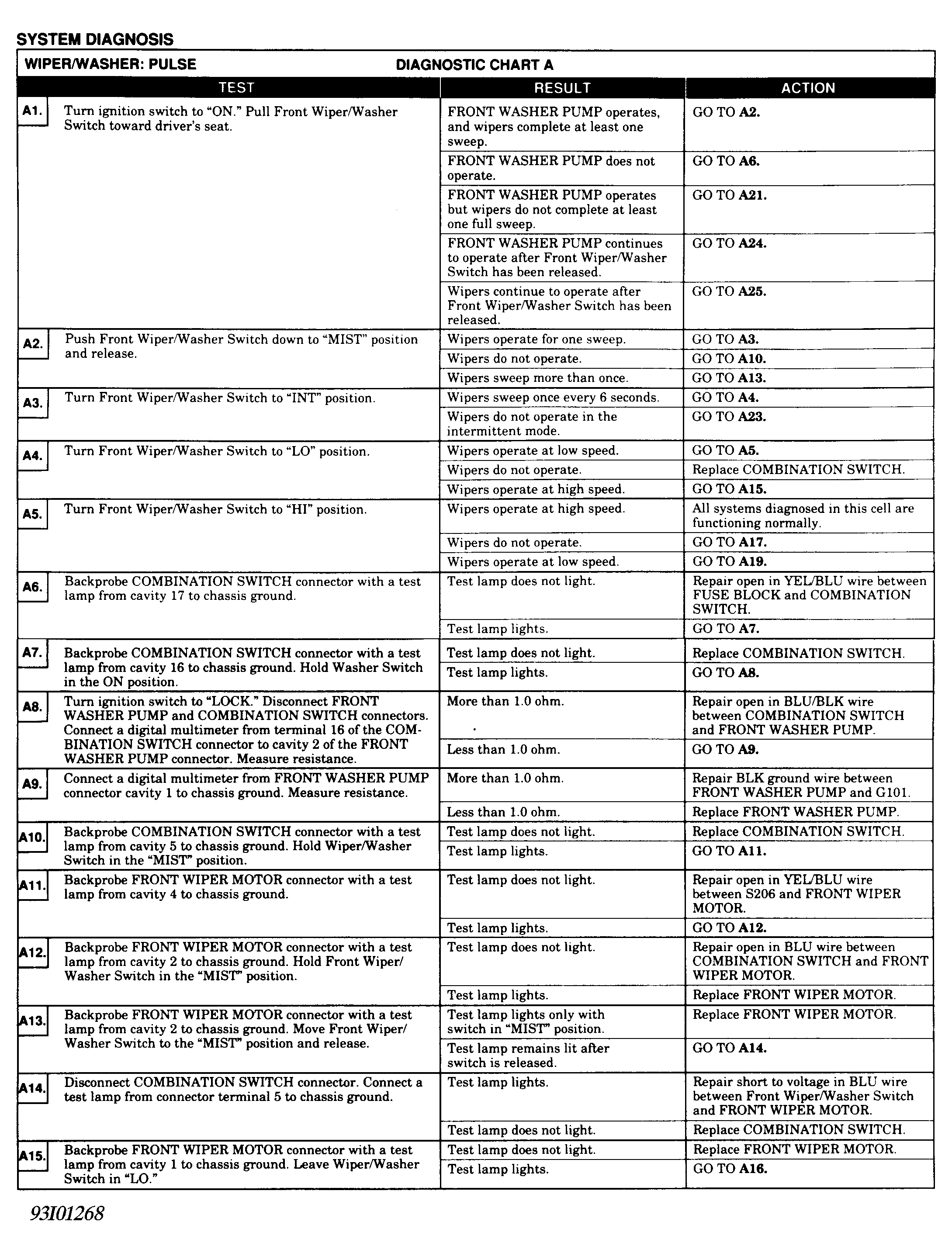

Fig 3: Pulse Wiper System Testing - 1 Of 2 (Metro)

Courtesy of GENERAL MOTORS CORP.

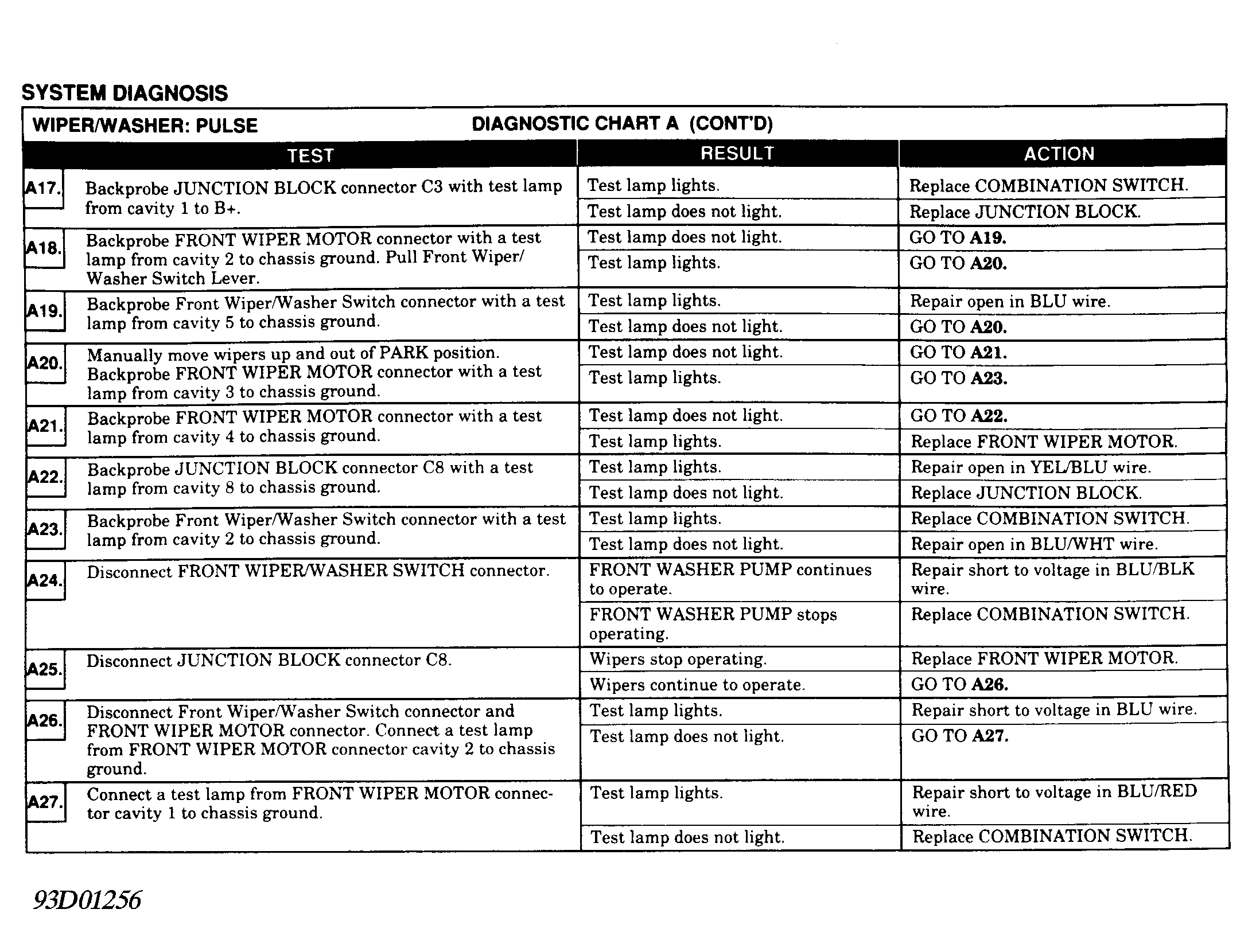

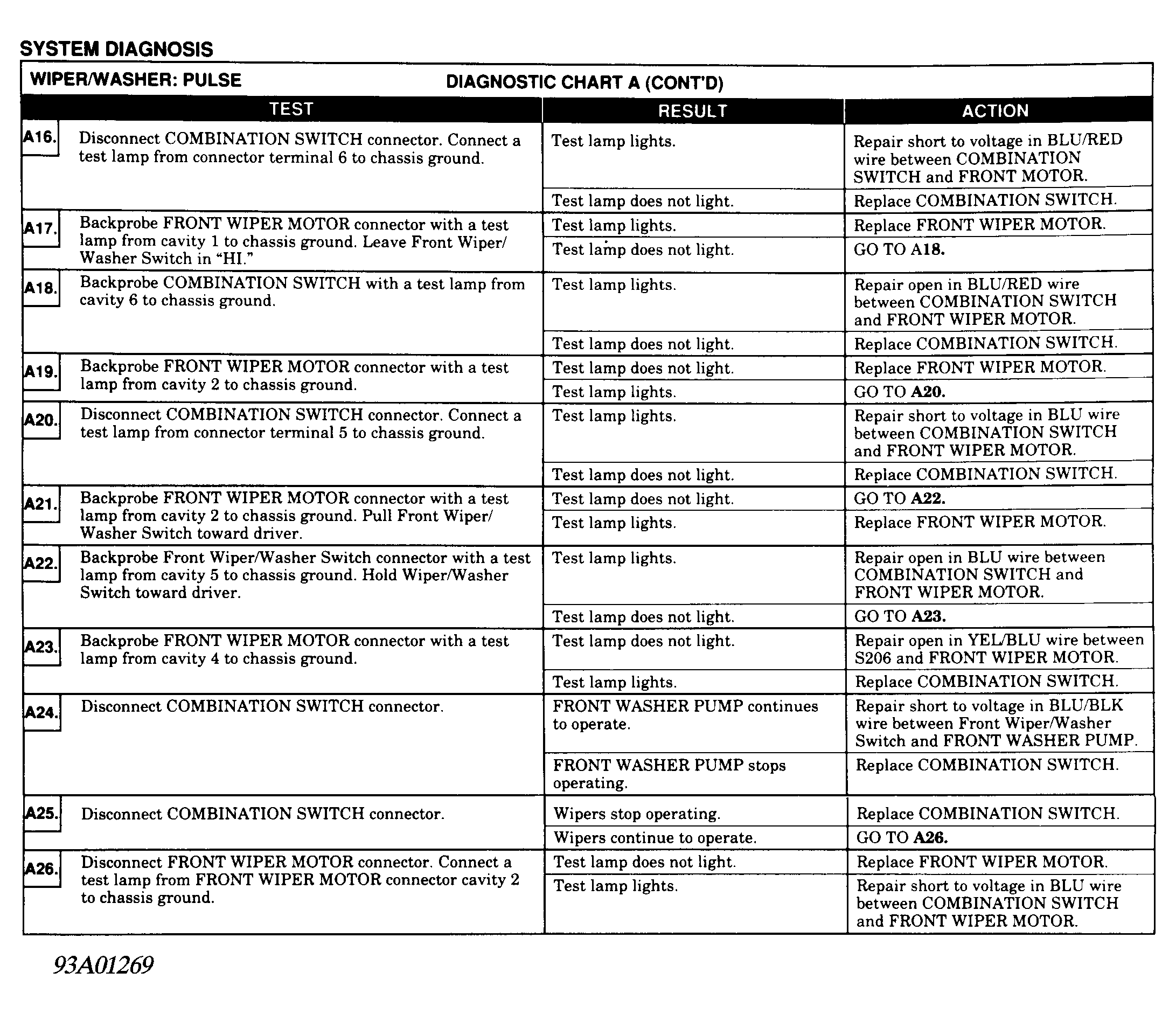

Fig 4: Pulse Wiper System Testing - 2 Of 2 (Metro)

Courtesy of GENERAL MOTORS CORP.

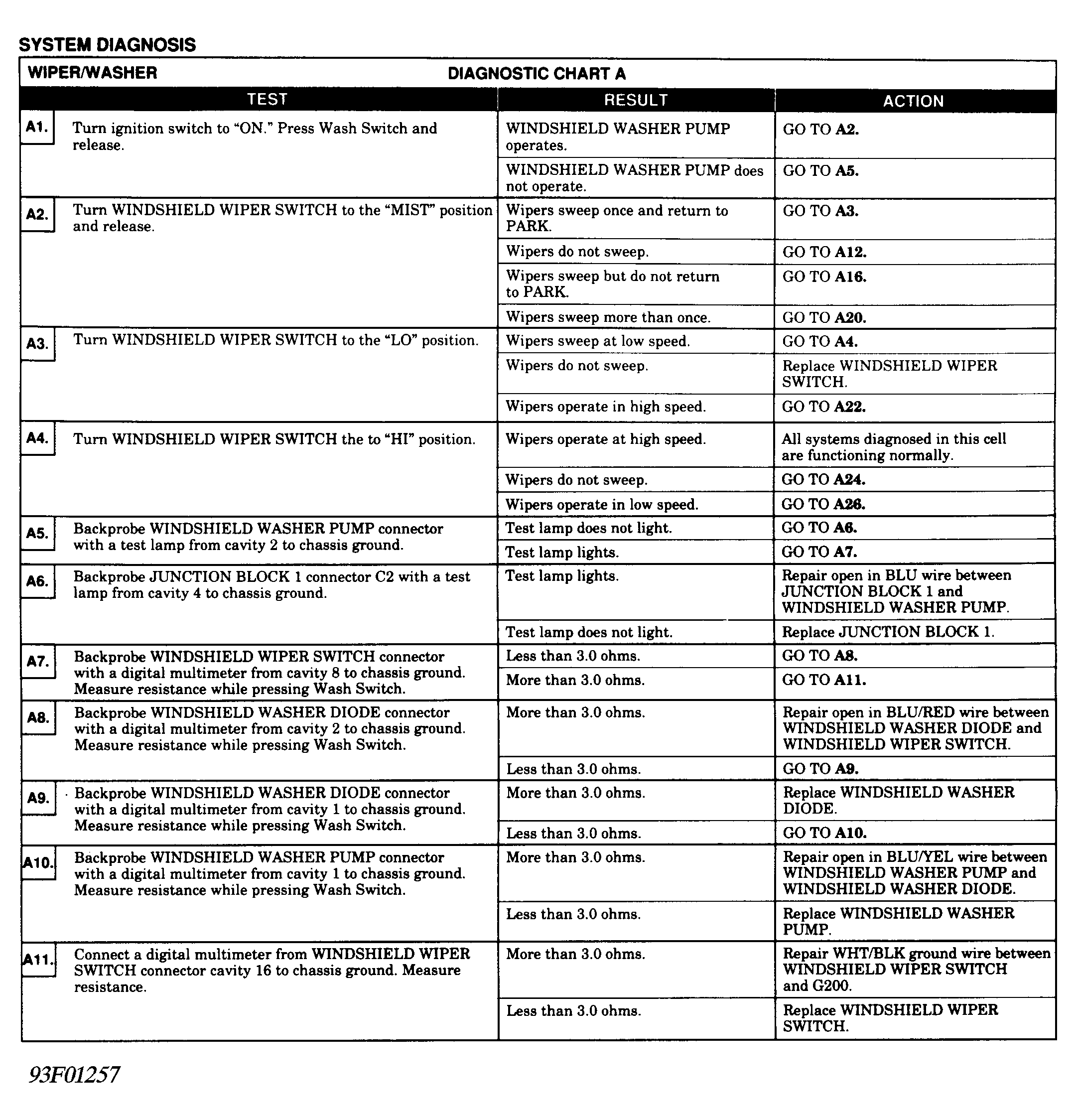

Fig 5: Standard Wiper System Testing - 1 Of 2 (Prizm)

Courtesy of GENERAL MOTORS CORP.

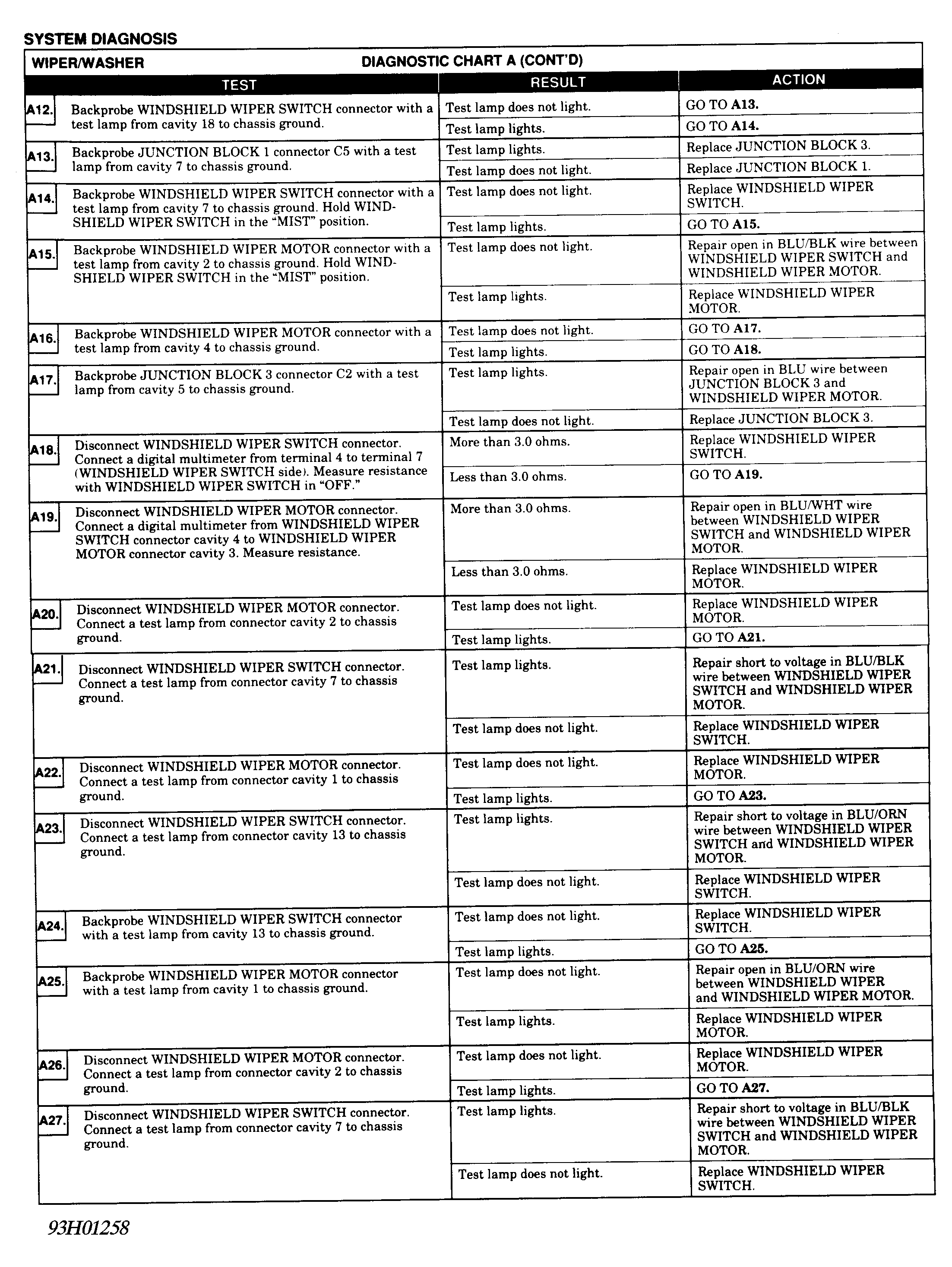

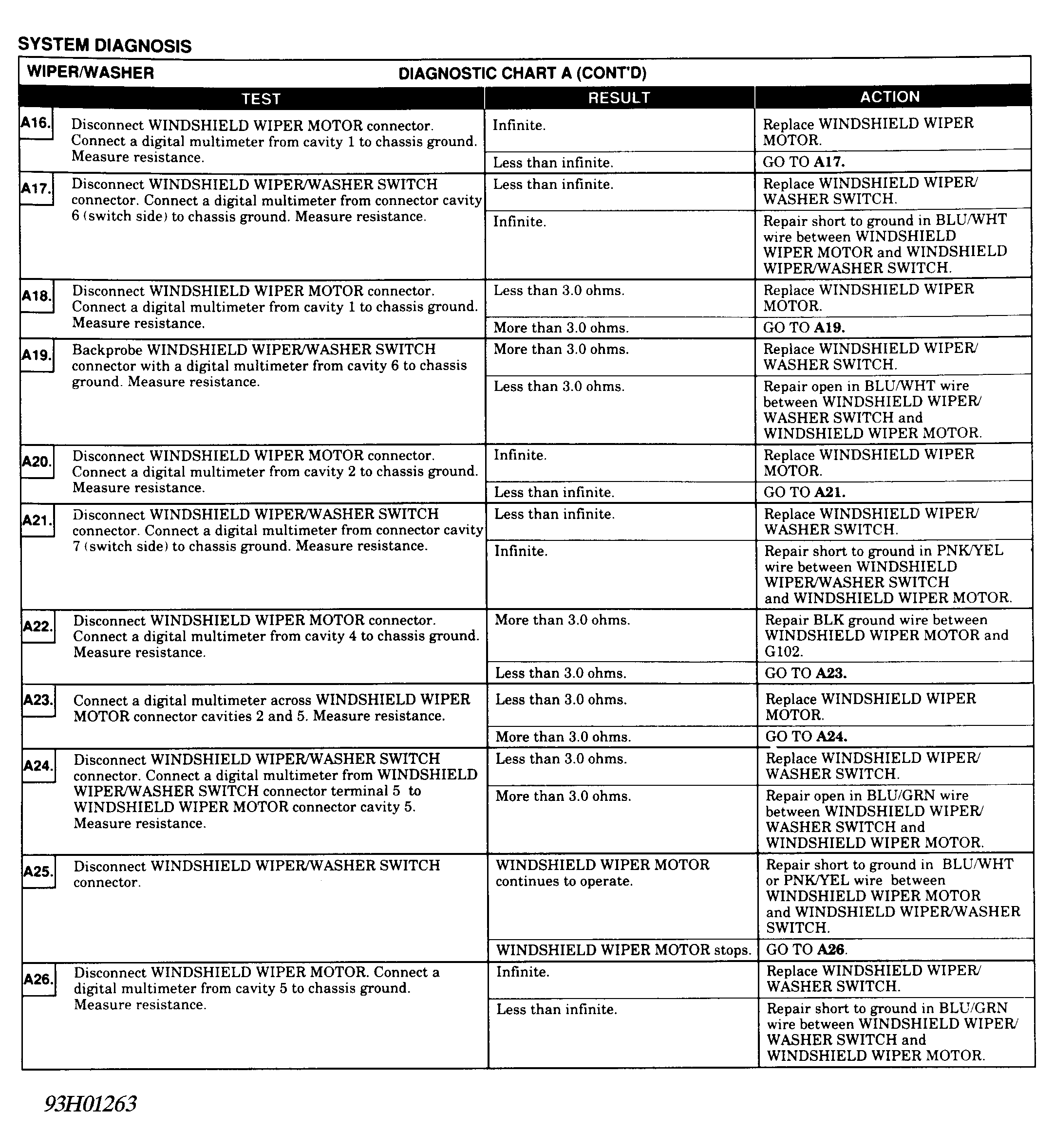

Fig 6: Standard Wiper System Testing - 2 Of 2 (Prizm)

Courtesy of GENERAL MOTORS CORP.

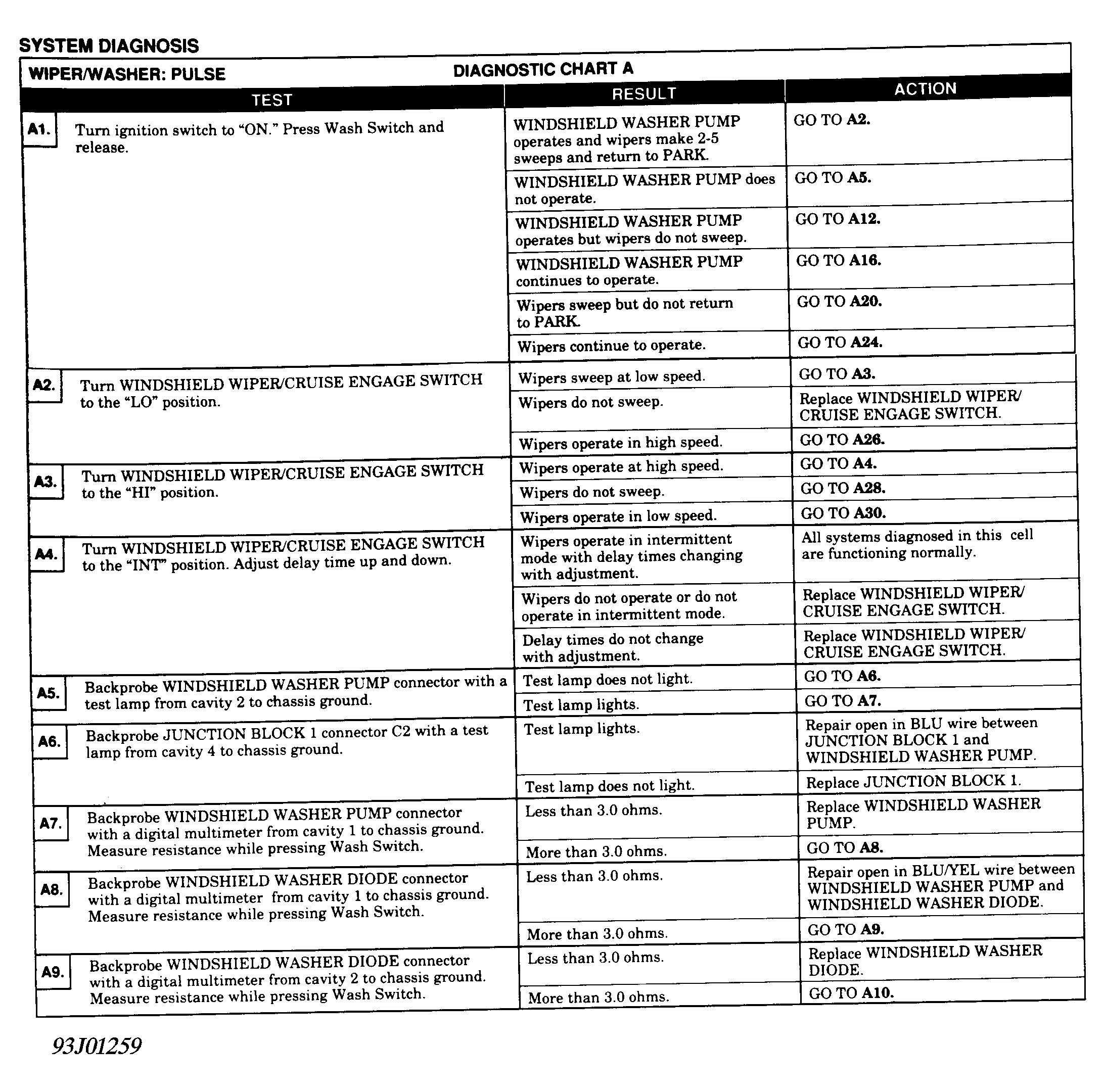

Fig 7: Pulse Wiper System Testing - 1 Of 3 (Prizm)

Courtesy of GENERAL MOTORS CORP.

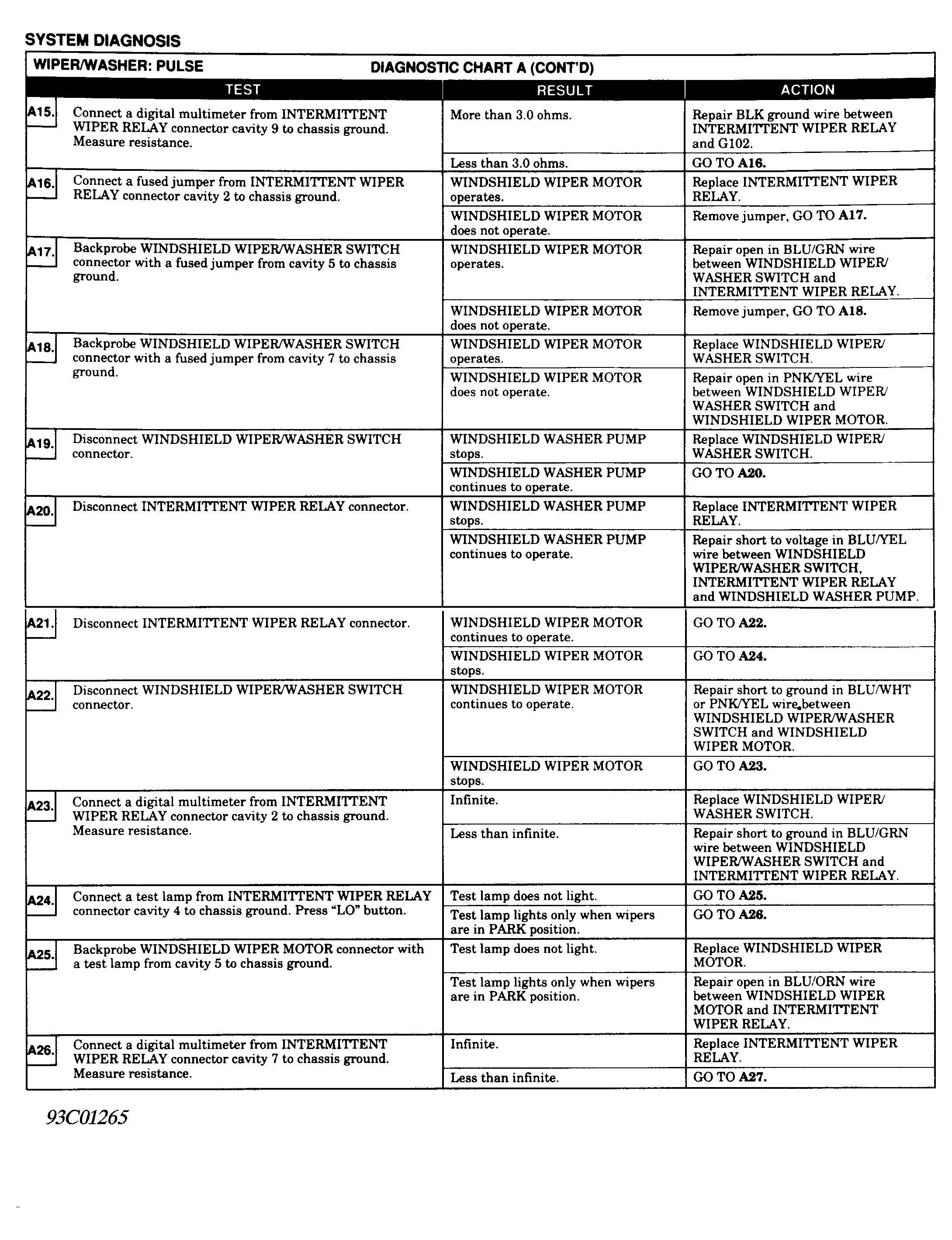

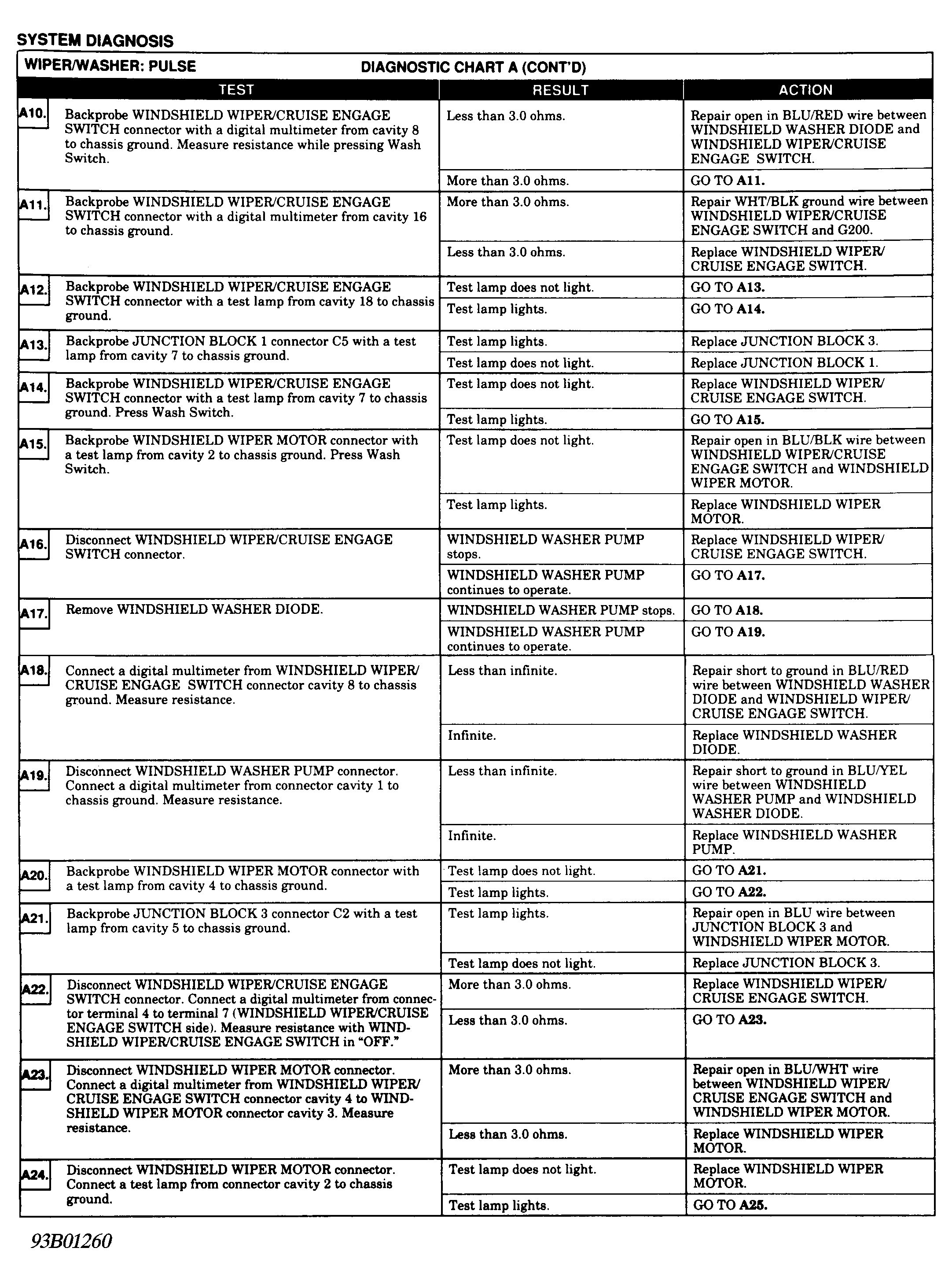

Fig 8: Pulse Wiper System Testing - 2 Of 3 (Prizm)

Courtesy of GENERAL MOTORS CORP.

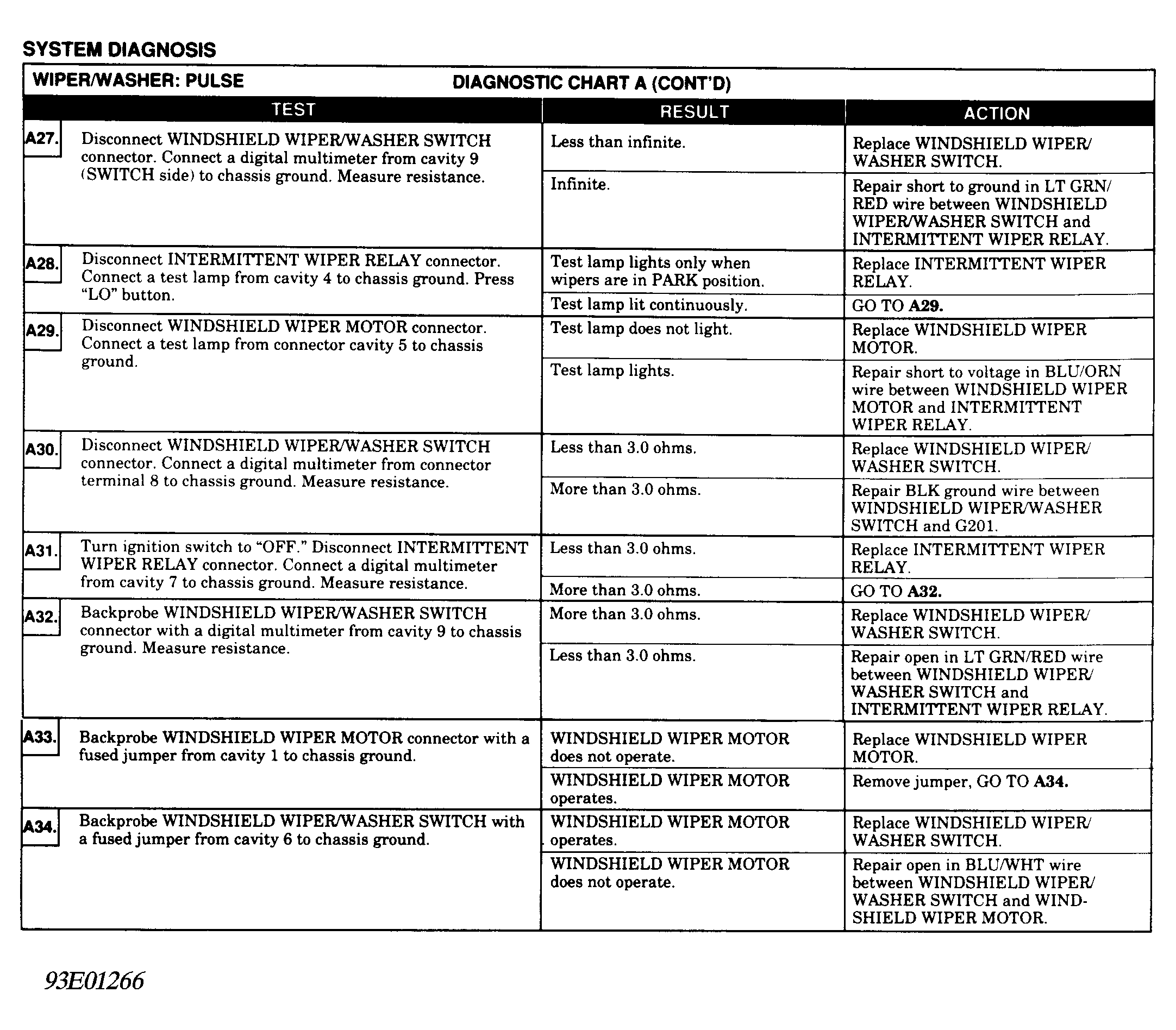

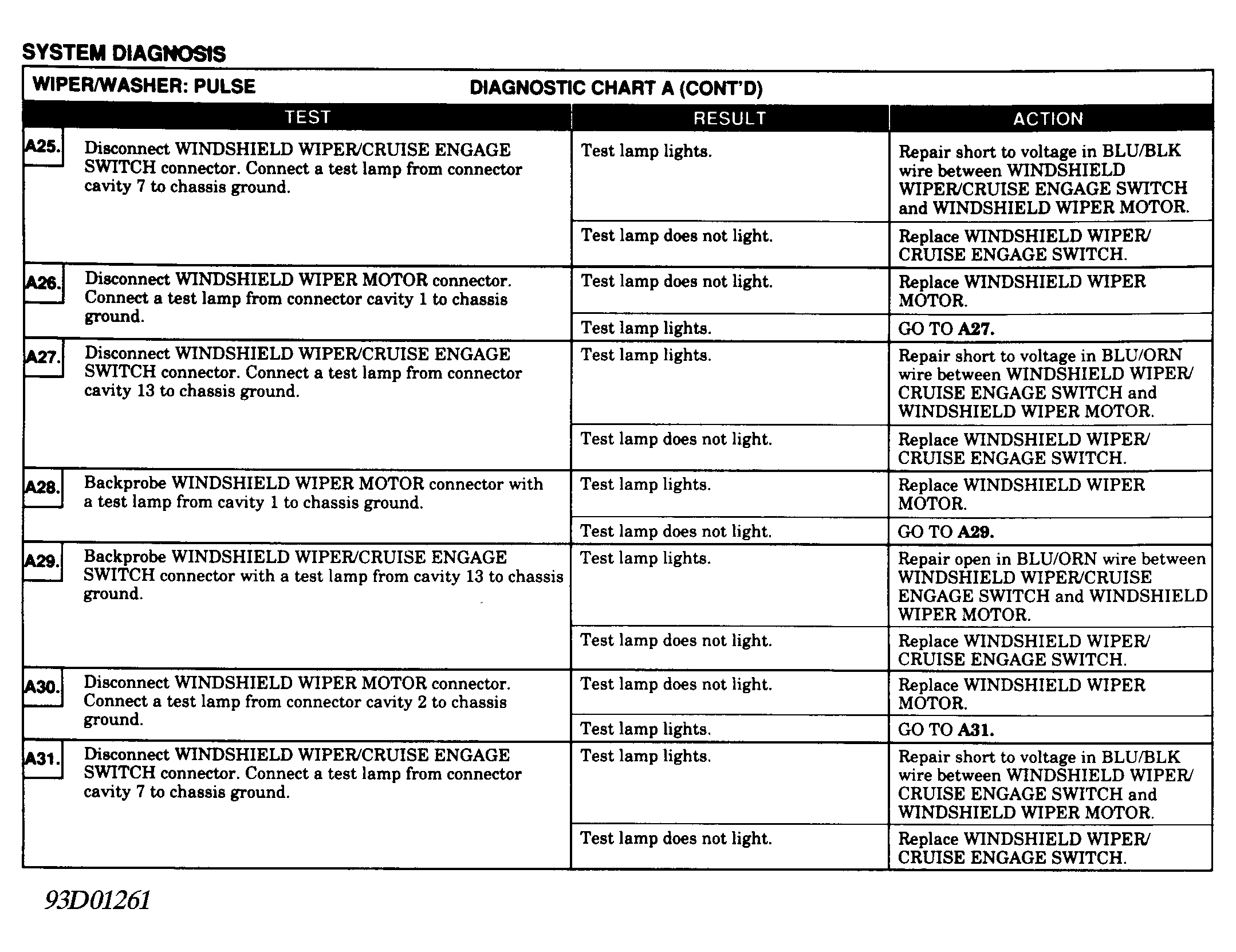

Fig 9: Pulse Wiper System Testing - 3 Of 3 (Prizm)

Courtesy of GENERAL MOTORS CORP.

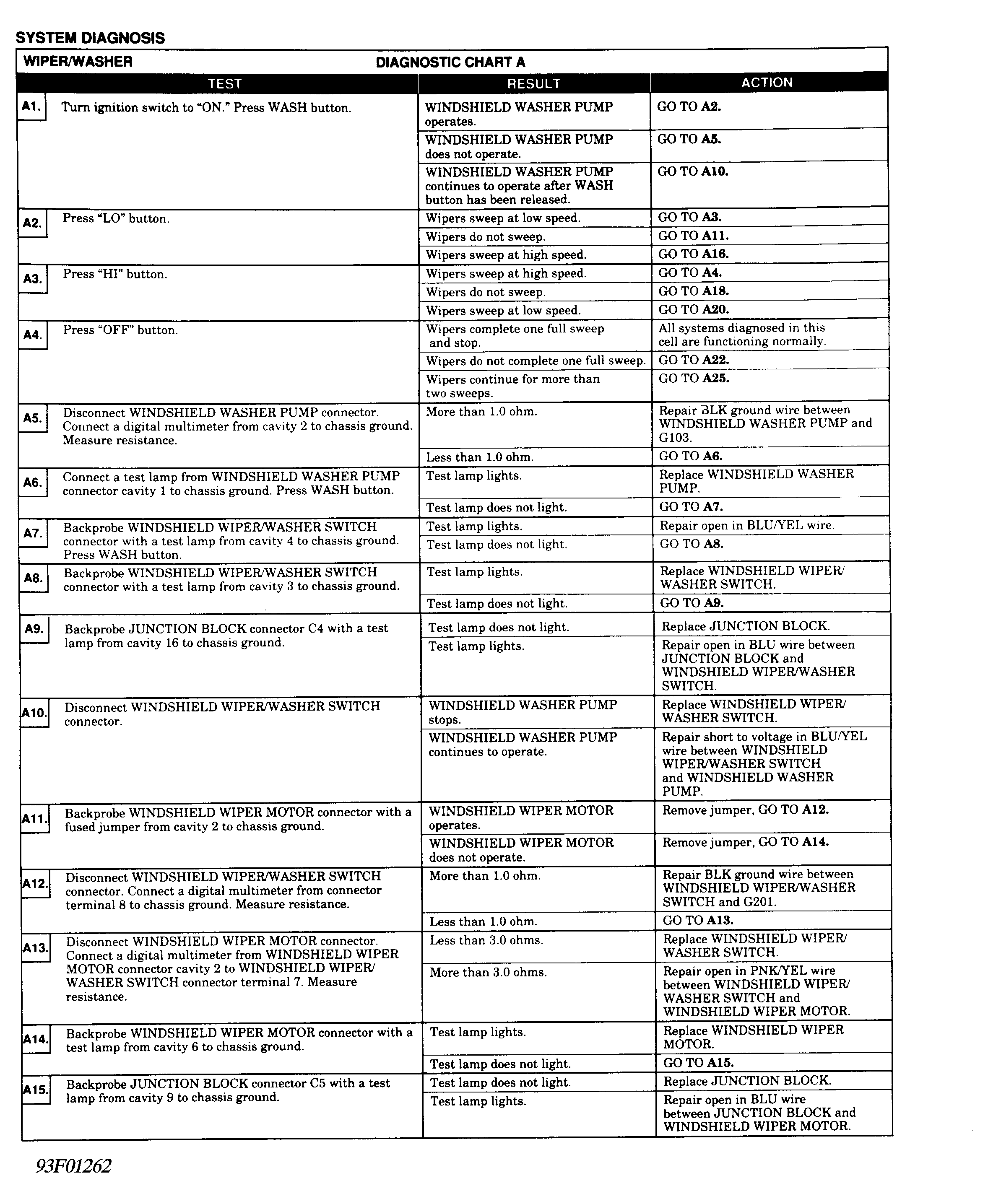

Fig 10: Standard Wiper System Testing - 1 Of 2 (Storm)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Standard Wiper System Testing - 2 Of 2 (Storm)

Courtesy of GENERAL MOTORS CORP.

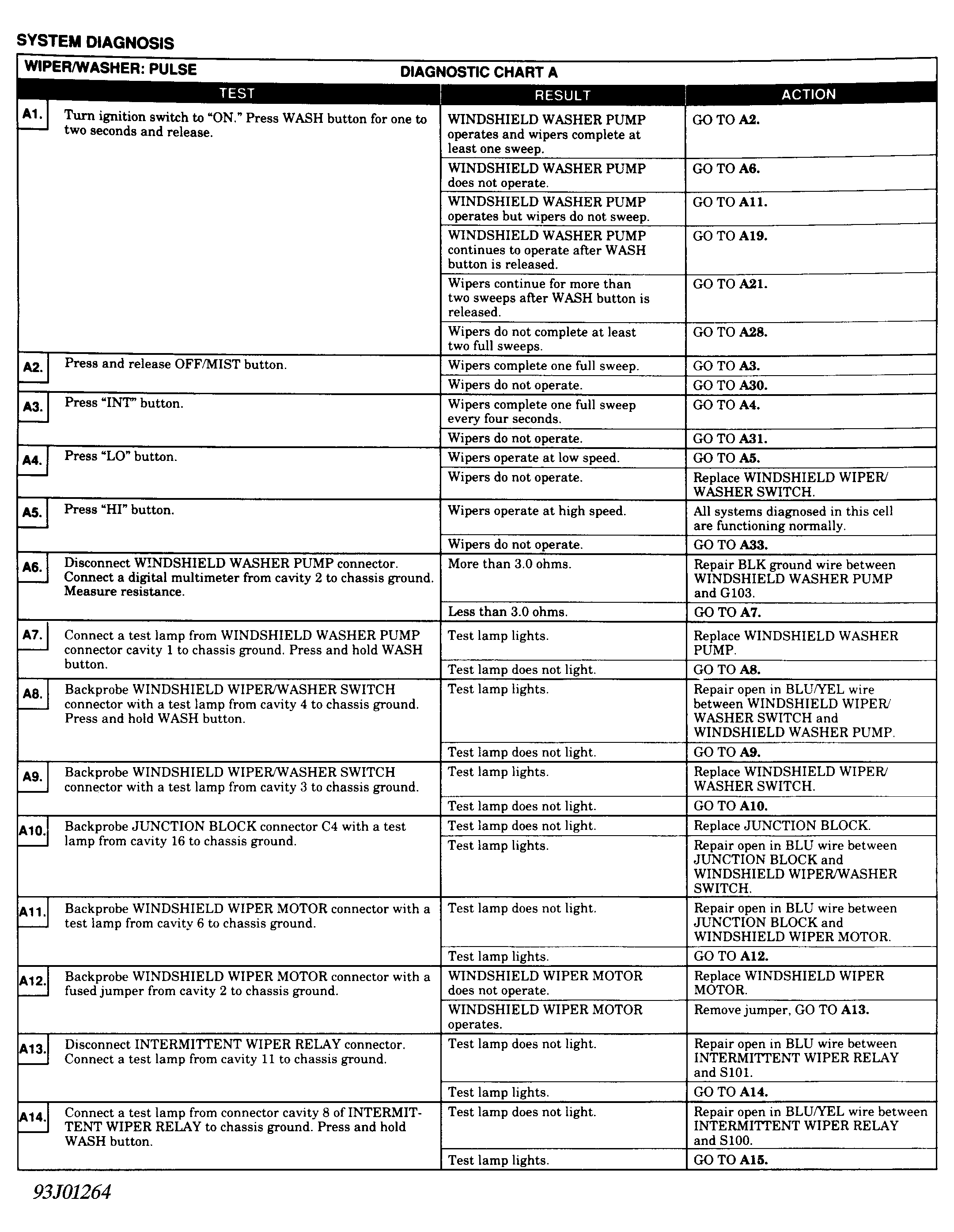

Fig 12: Pulse Wiper System Testing - 1 Of 3 (Storm)

Courtesy of GENERAL MOTORS CORP.

Fig 13: Pulse Wiper System Testing - 2 Of 3 (Storm)

Courtesy of GENERAL MOTORS CORP.

Fig 14: Pulse Wiper System Testing - 3 Of 3 (Storm)

Courtesy of GENERAL MOTORS CORP.

Fig 15: Standard Wiper System Testing (Tracker)

Courtesy of GENERAL MOTORS CORP.

Fig 16: Pulse Wiper System Testing - 1 Of 2 (Tracker)

Courtesy of GENERAL MOTORS CORP.

Fig 17: Pulse Wiper System Testing - 2 Of 2 (Tracker)

Courtesy of GENERAL MOTORS CORP.
