Geo
>>
1993
>>
Storm L4-1800cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Connector C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector C1

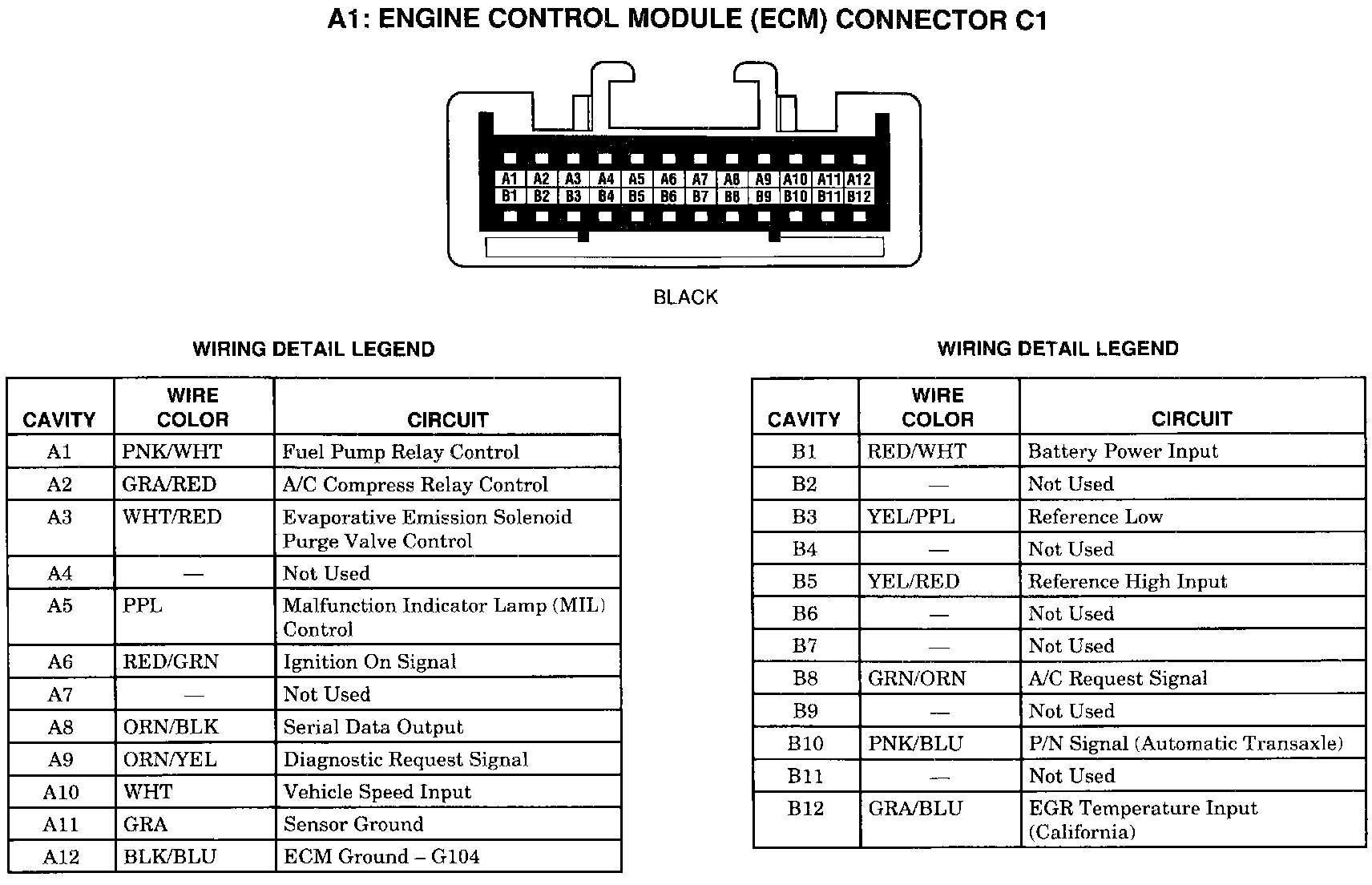

Engine Controls 1.8L VIN 8 ENGINE CONTROL MODULE CONNECTOR C1:
