Electronic/Powertrain Control Module (ECM/PCM)

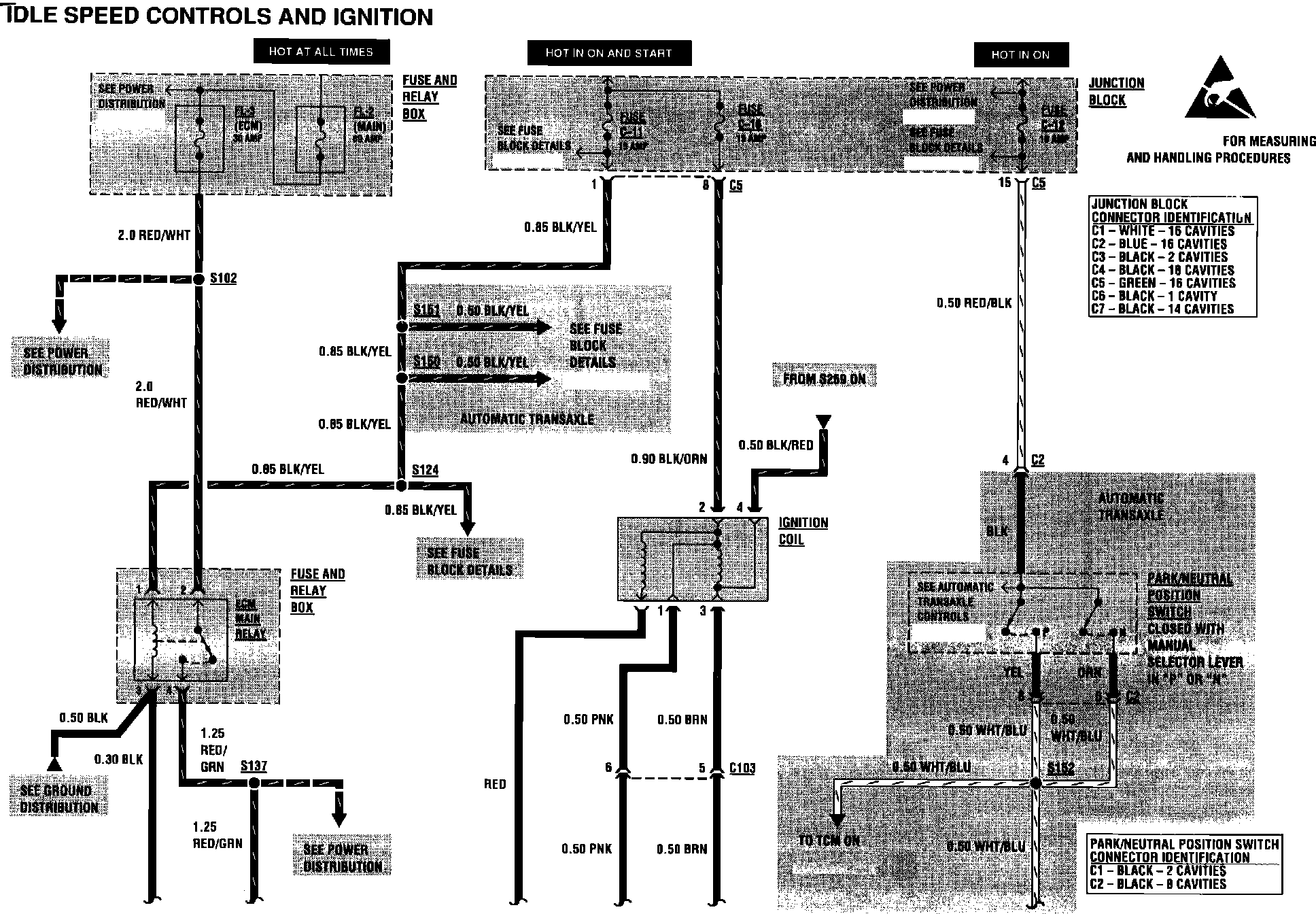

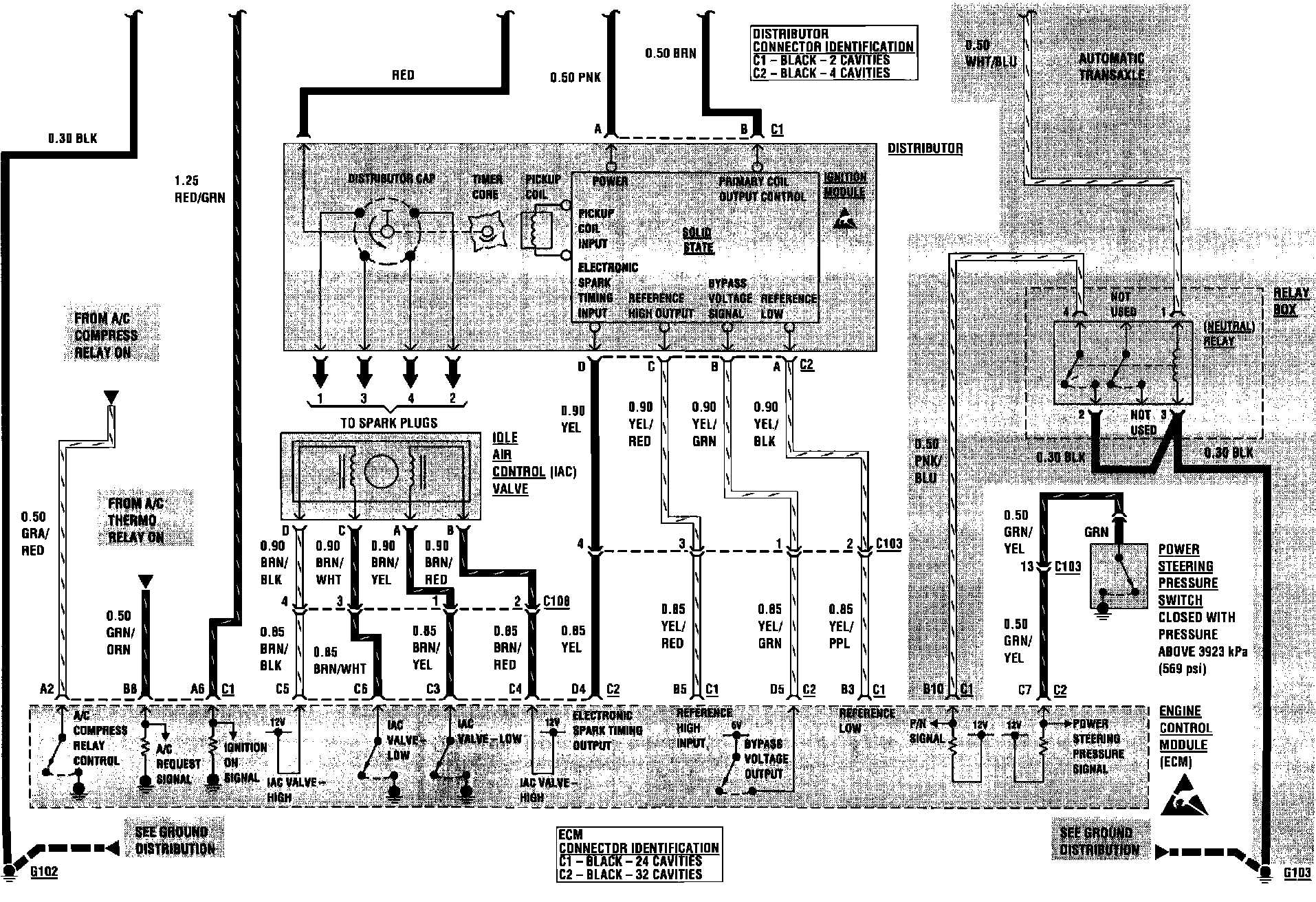

ECM Schematic:

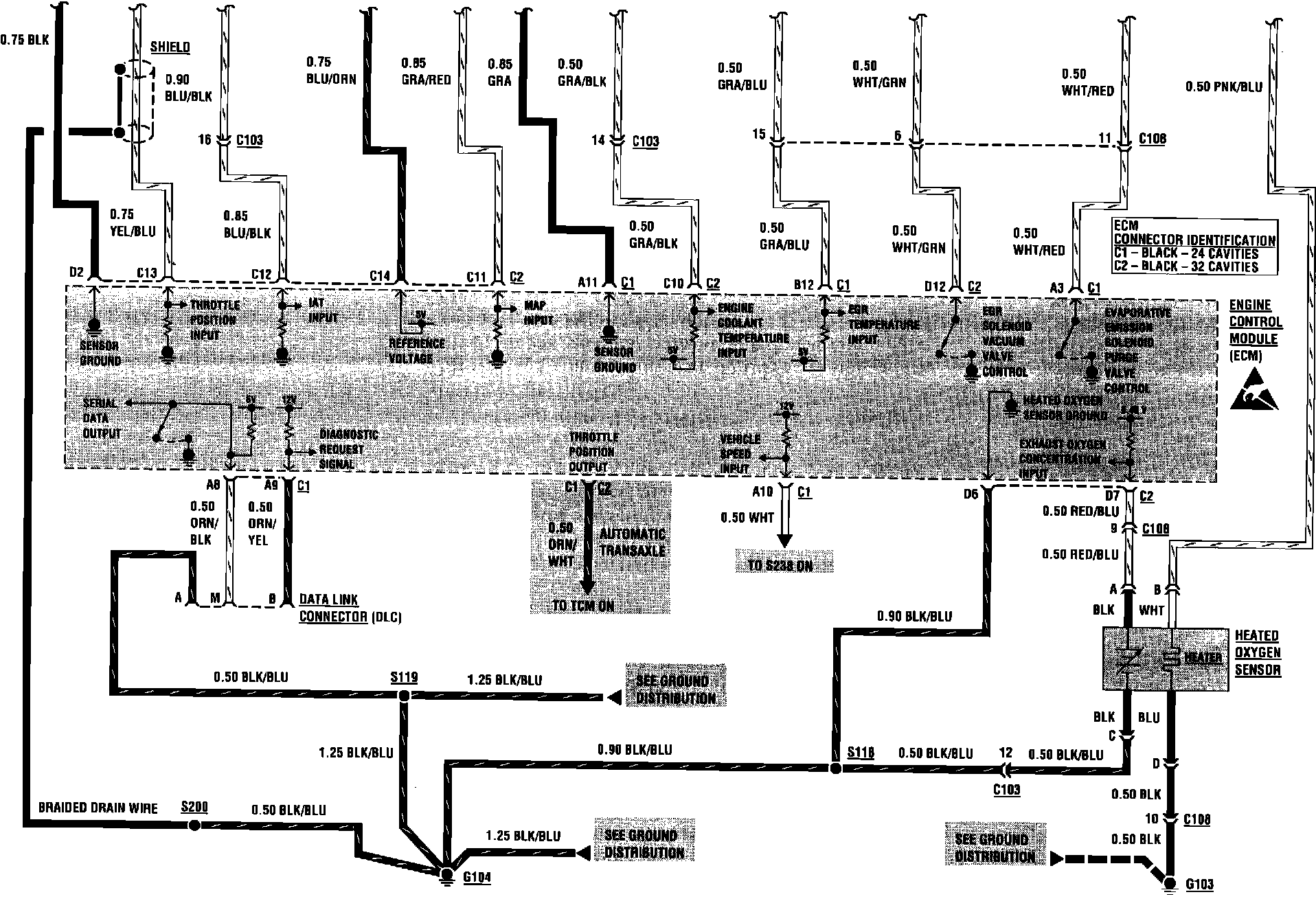

ECM Schematic:

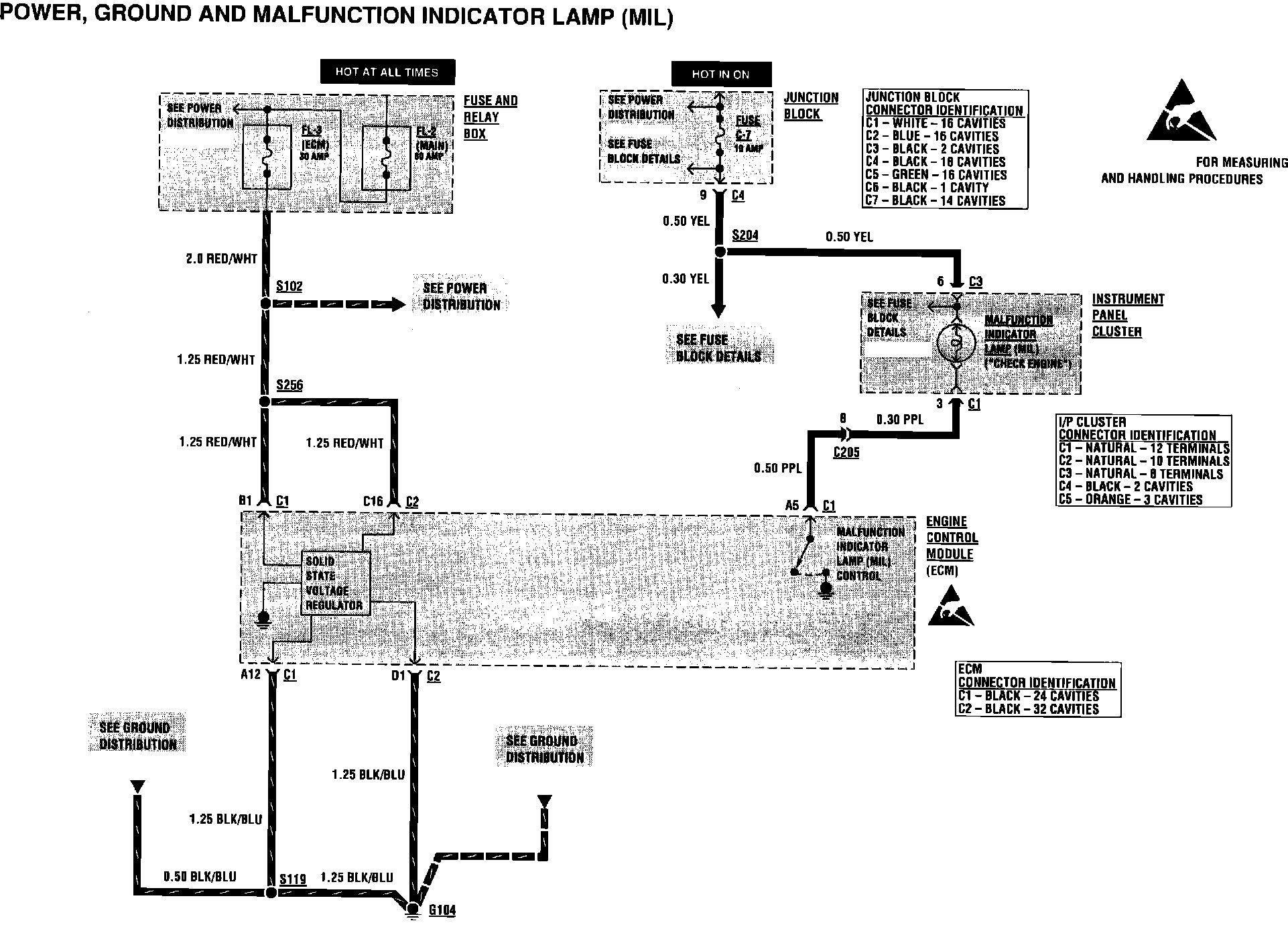

ECM Schematic:

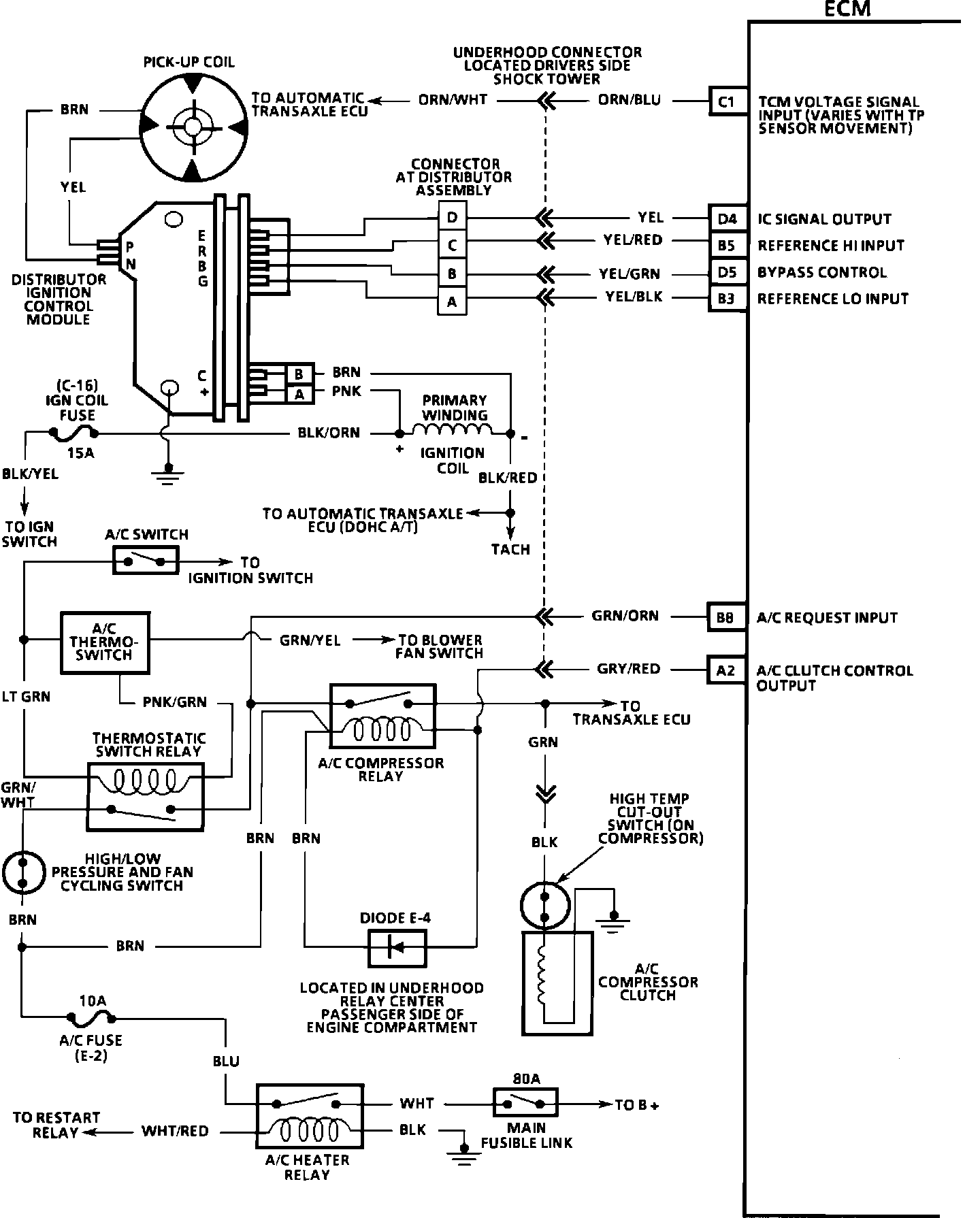

ECM Wiring Diagram:

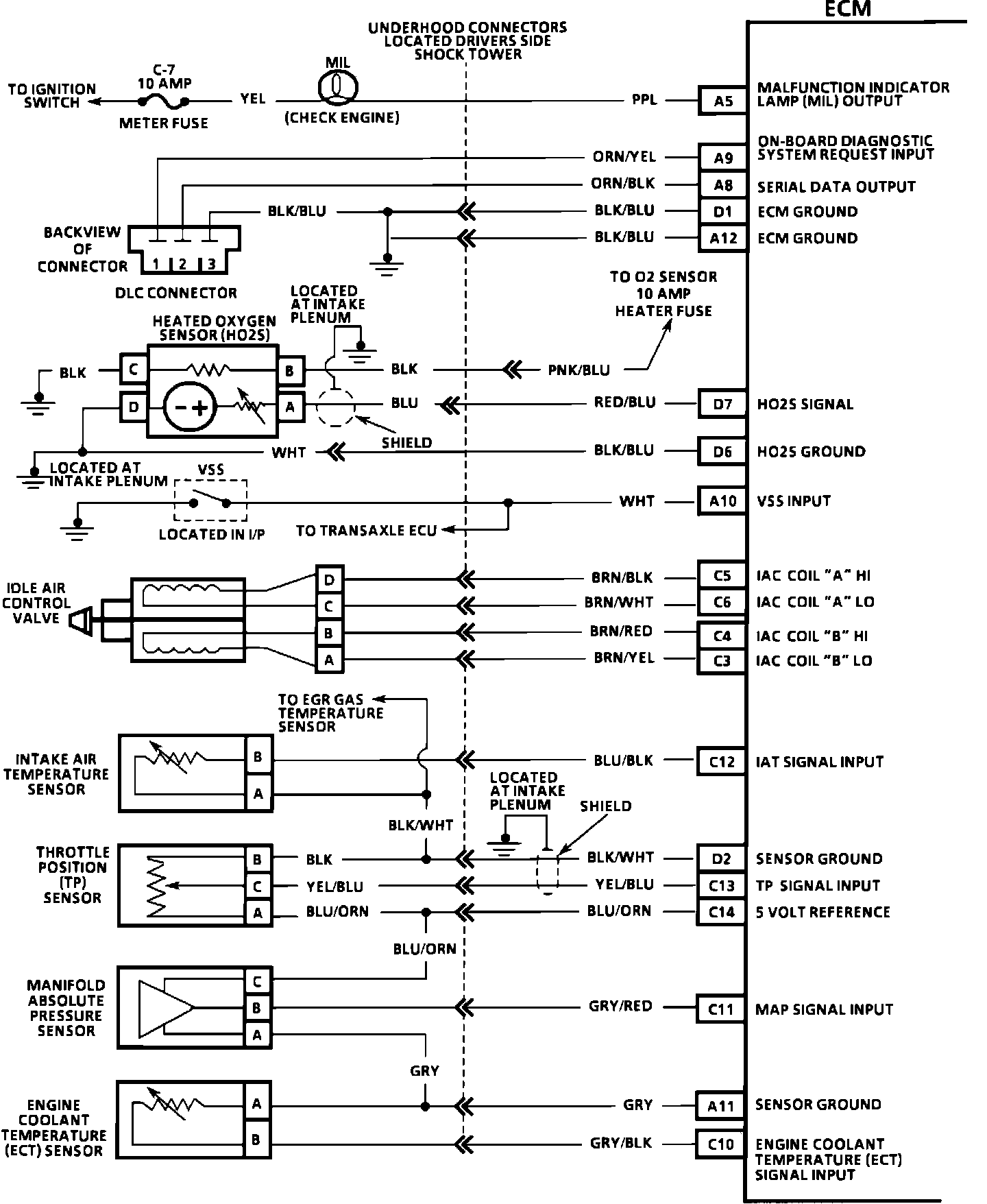

ECM Wiring Diagram:

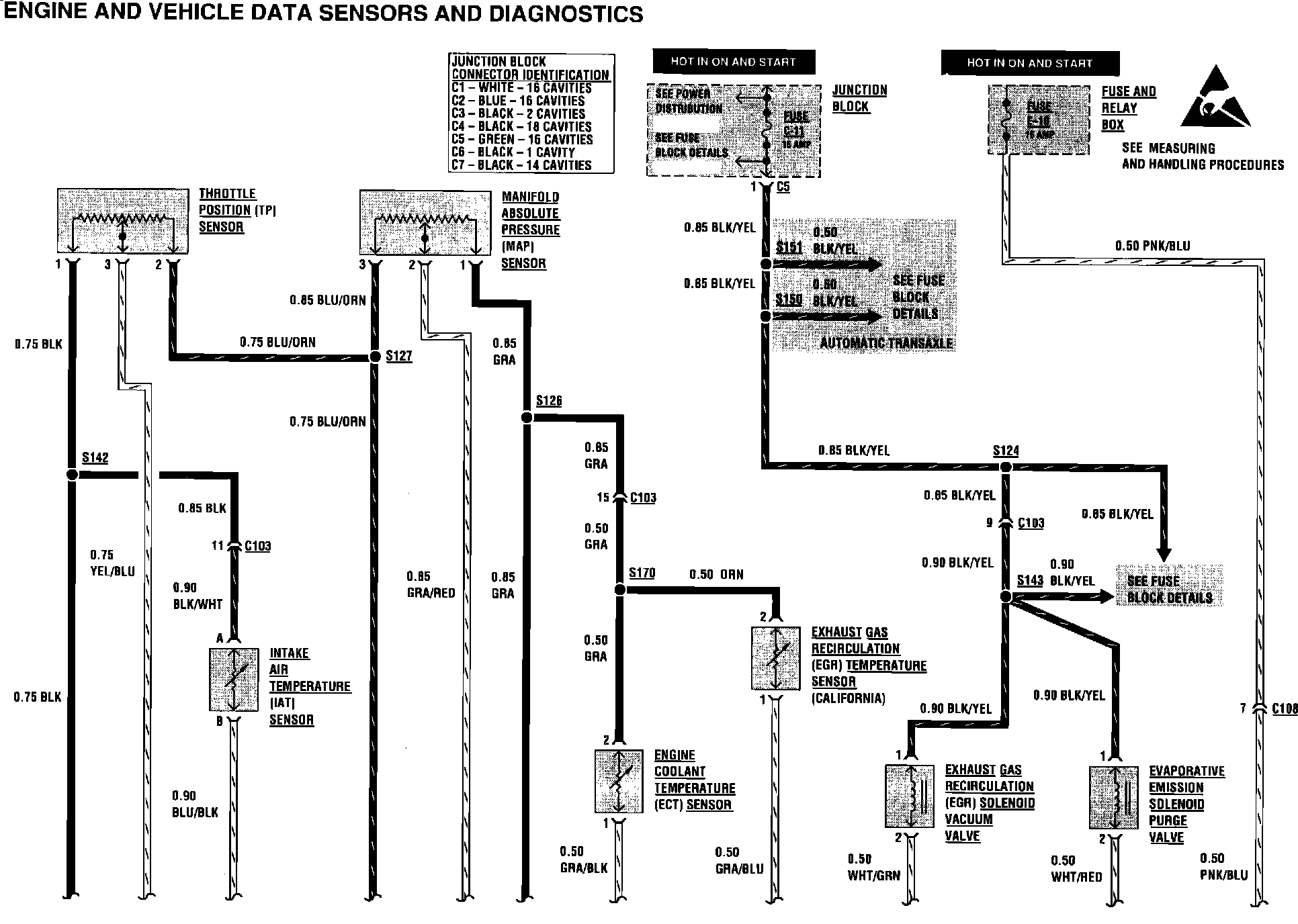

ECM Wiring Diagram:

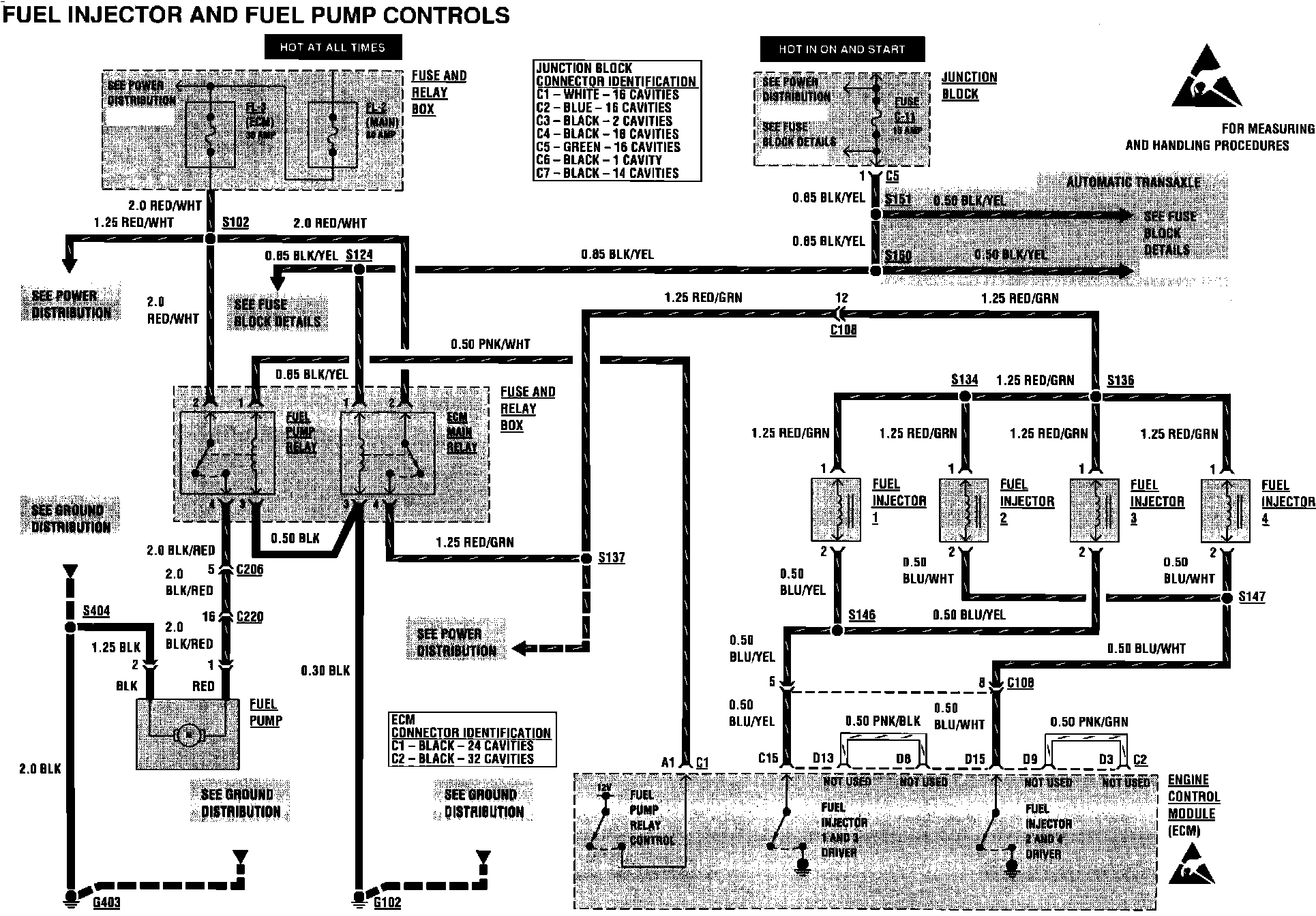

ECM Wiring Diagram:

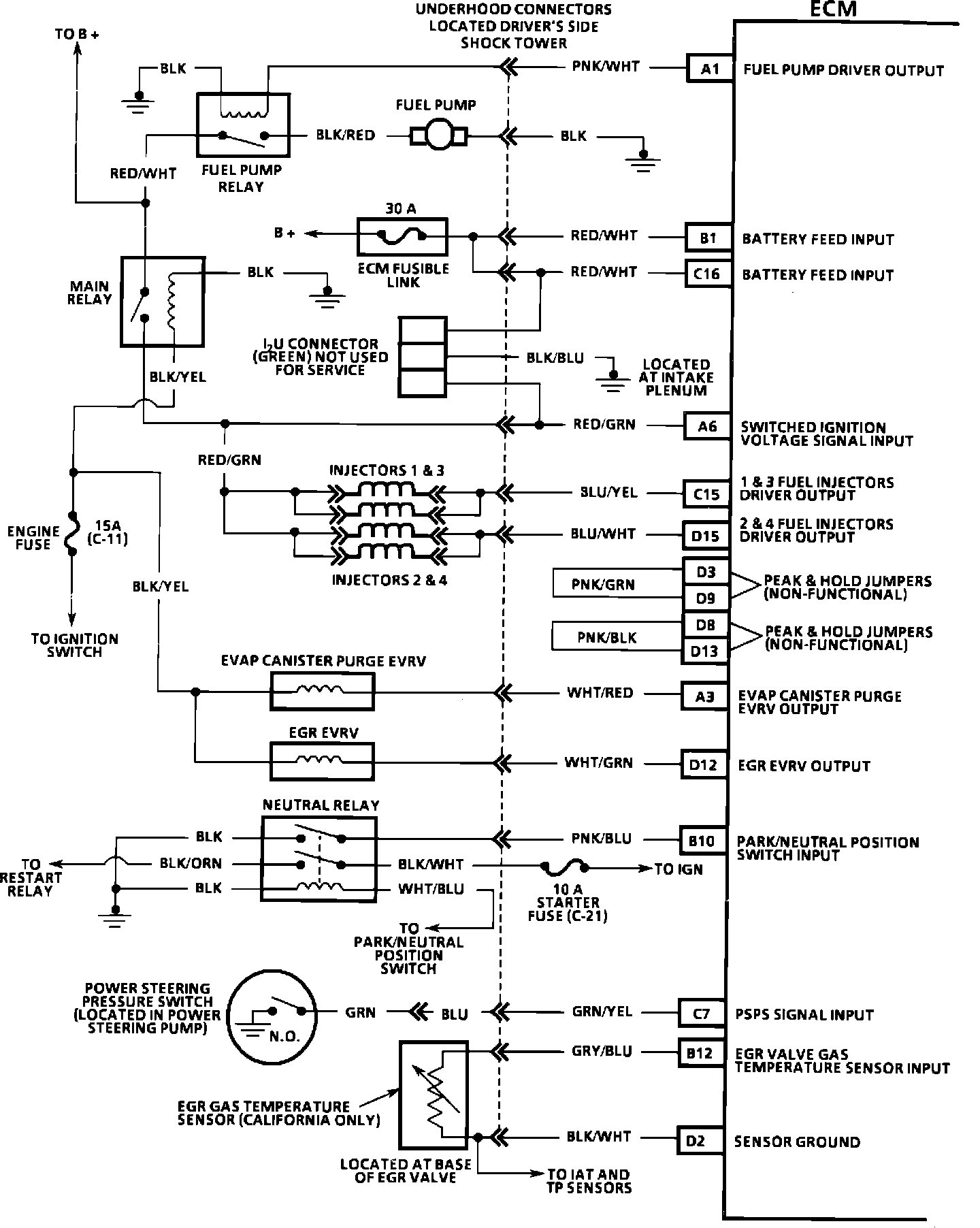

ECM Wiring Diagram:



ECM Wiring Diagram:
