Diagnostic Aids

Normal heated O2 sensor voltage is .1-.9 volt (varying) in closed loop operation.

Fig 1: Code 13 - Schematic Heated Oxygen Sensor Circuit

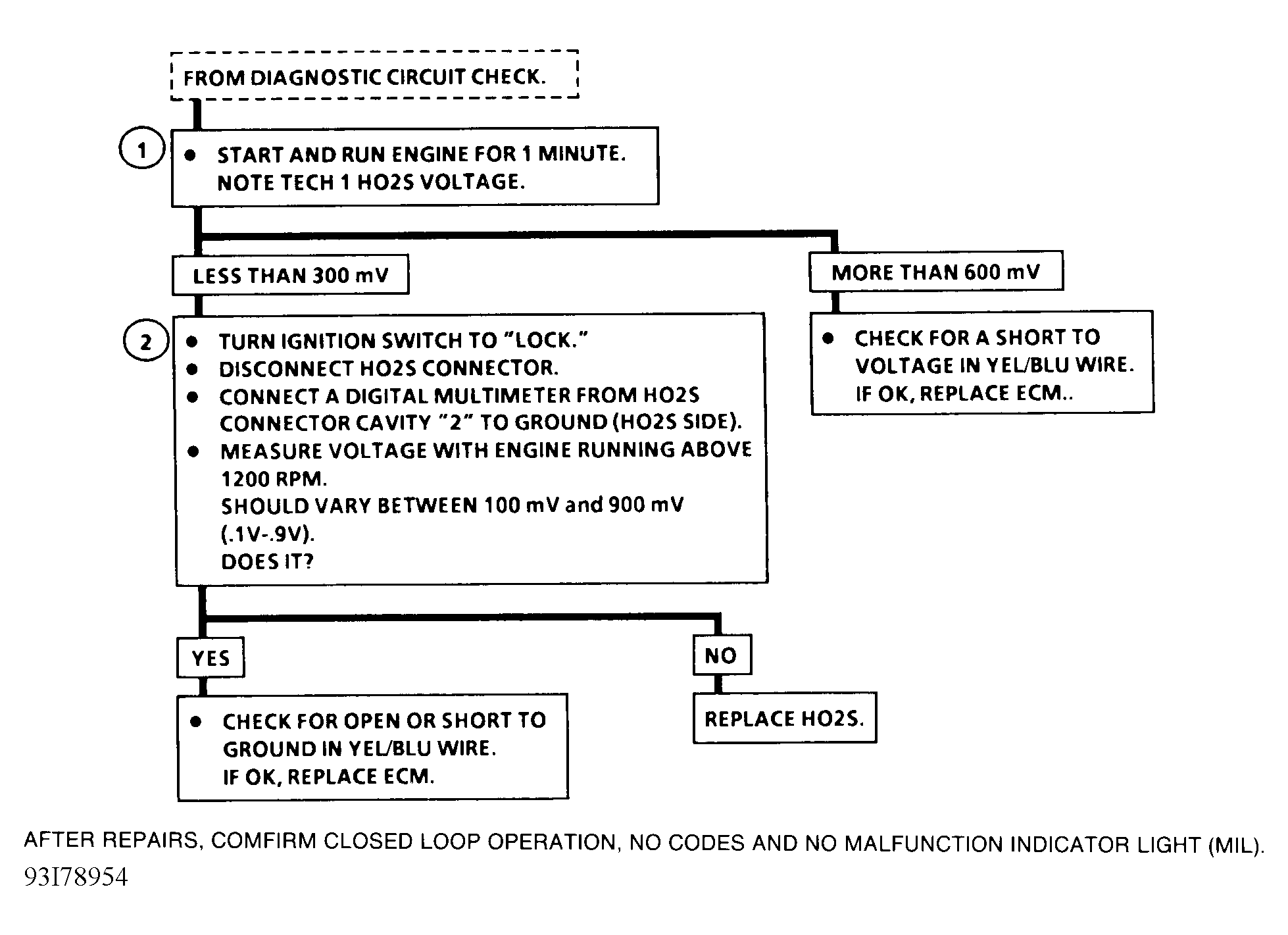

Fig 2: Code 13 - Flow Chart Heated Oxygen Sensor Circuit
