Compressor Control

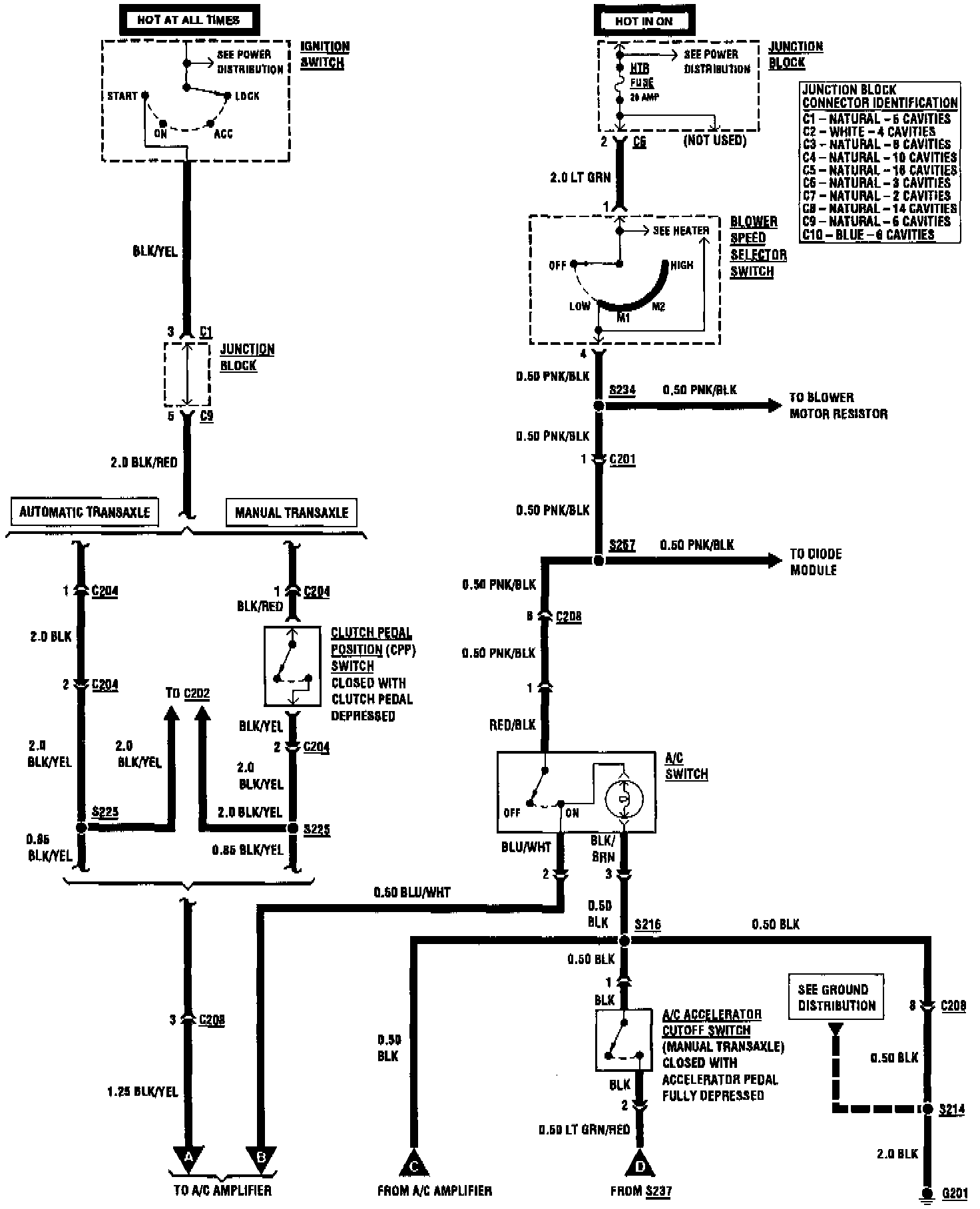

HVAC: Compressor Control - Part 1 Of 3:

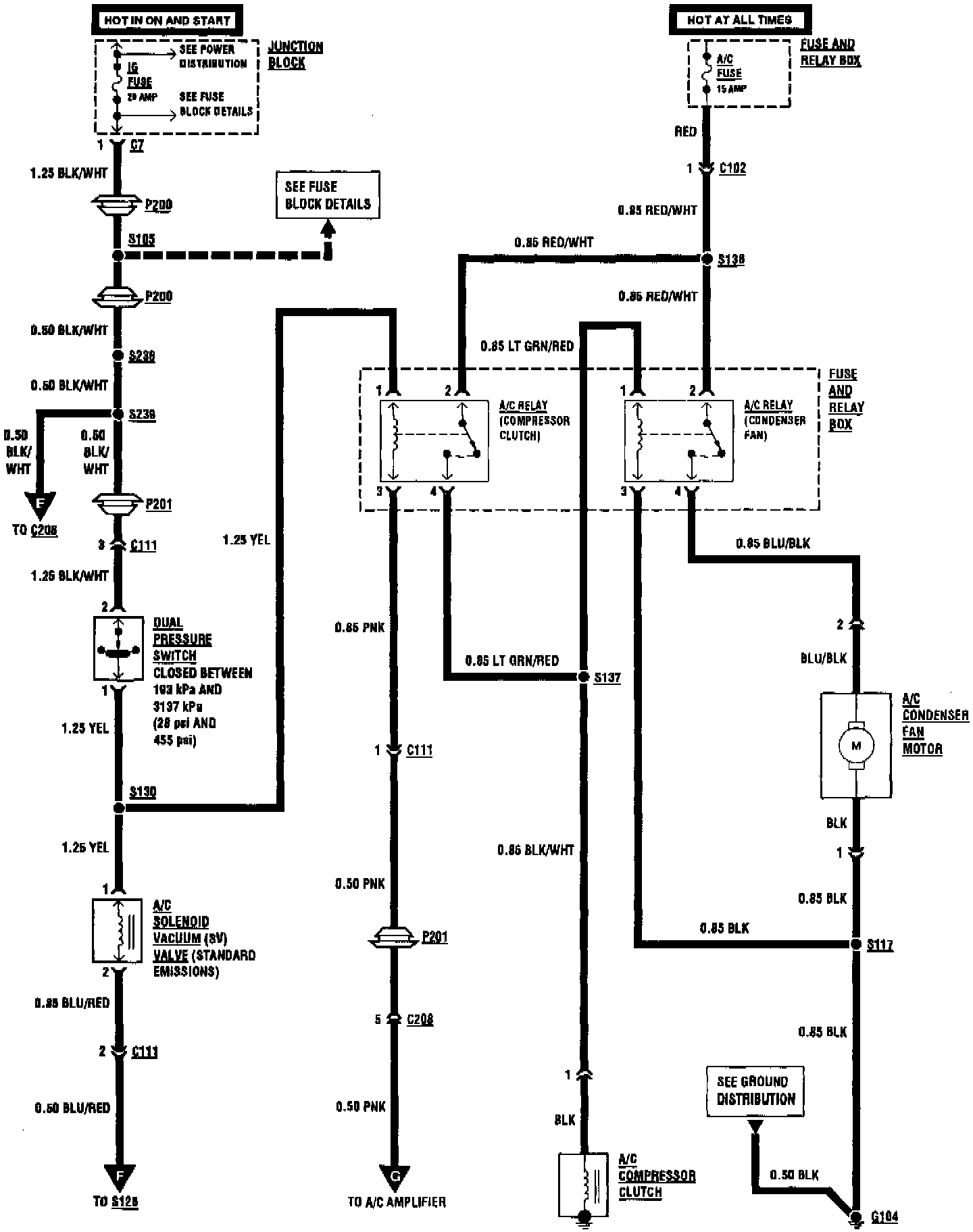

HVAC: Compressor Control - Part 2 Of 3:

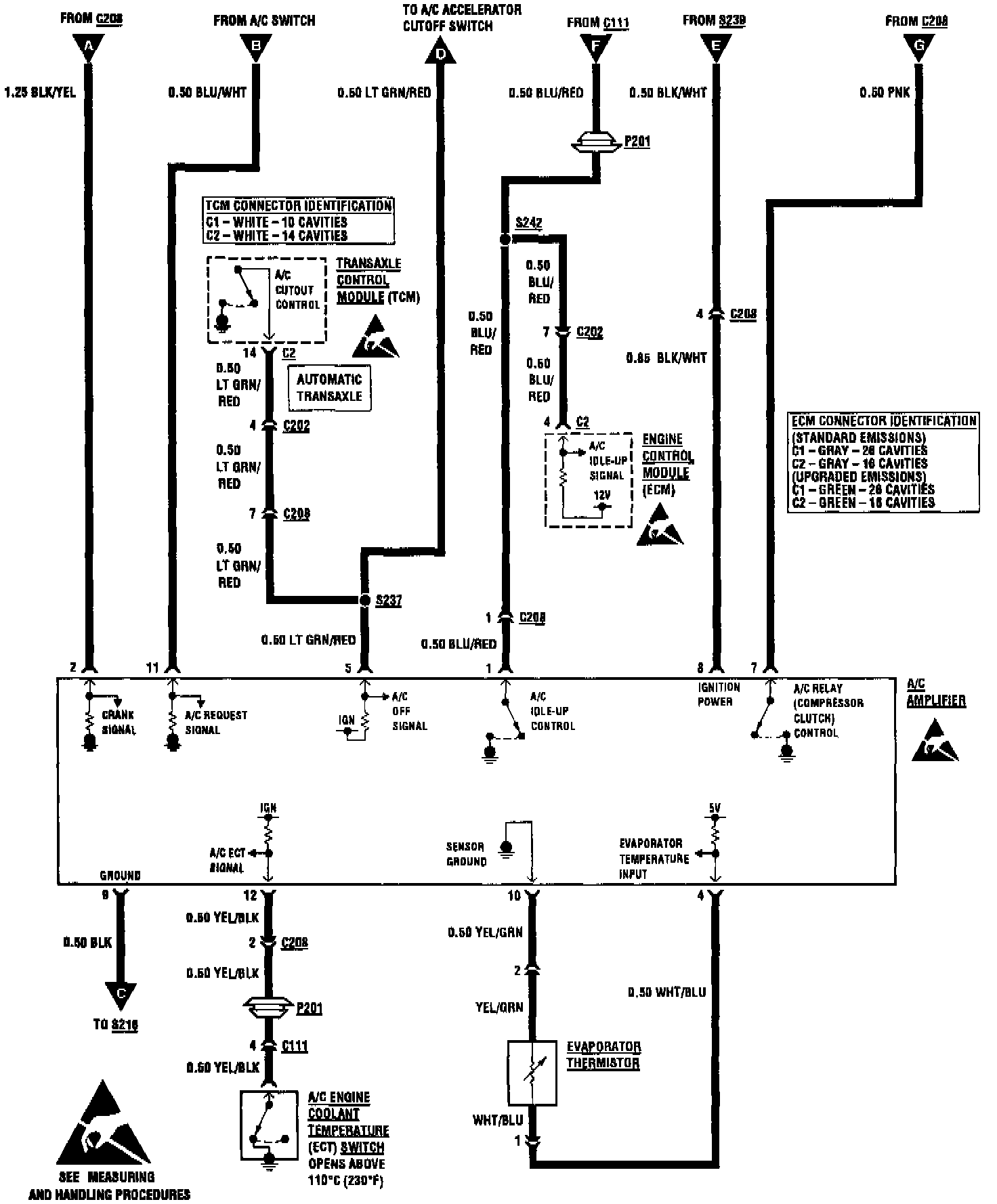

HVAC: Compressor Control - Part 3 Of 3:
