With Upgraded Emissions

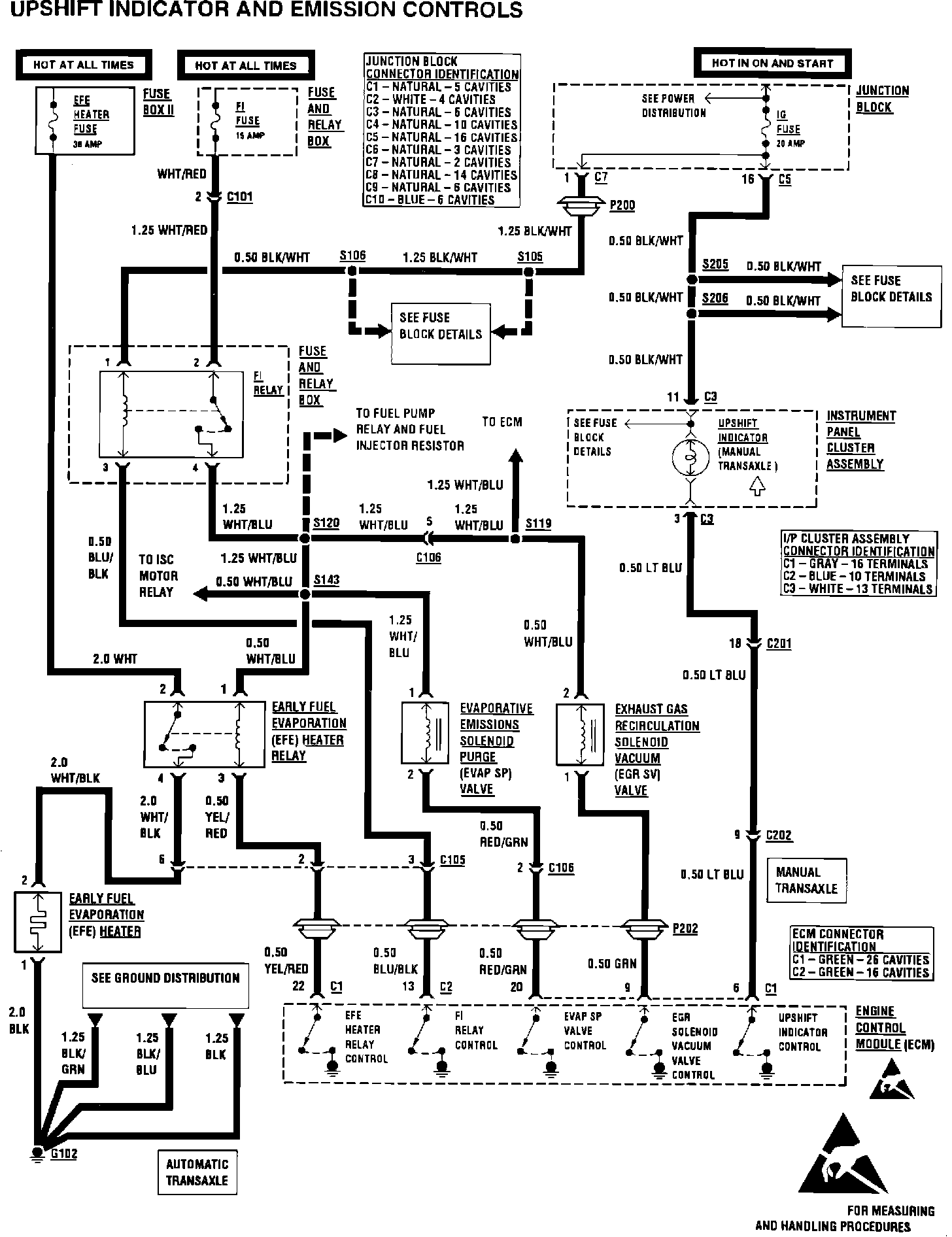

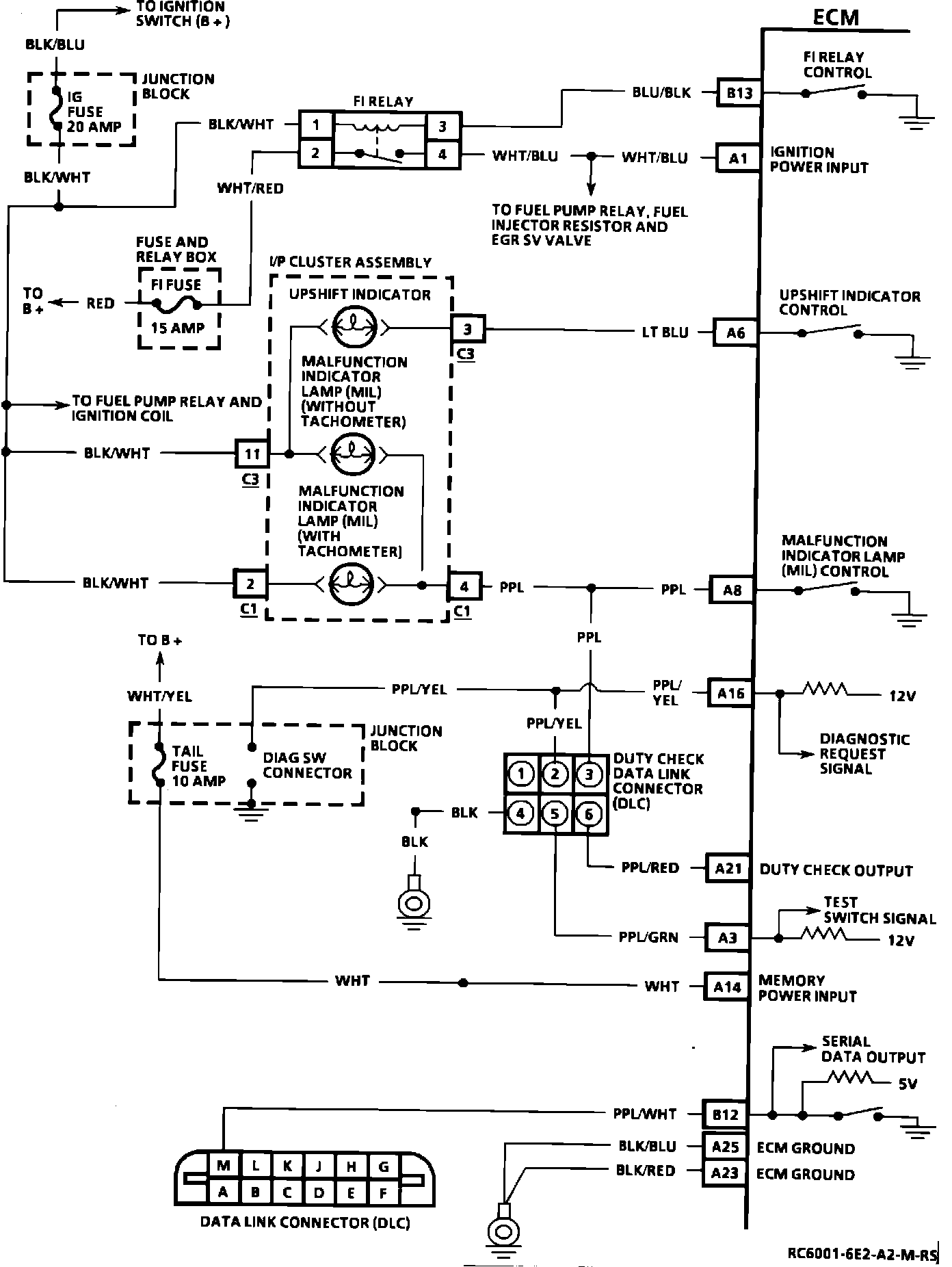

ECM Wiring 94 Metro W/ Upgraded Emissions:

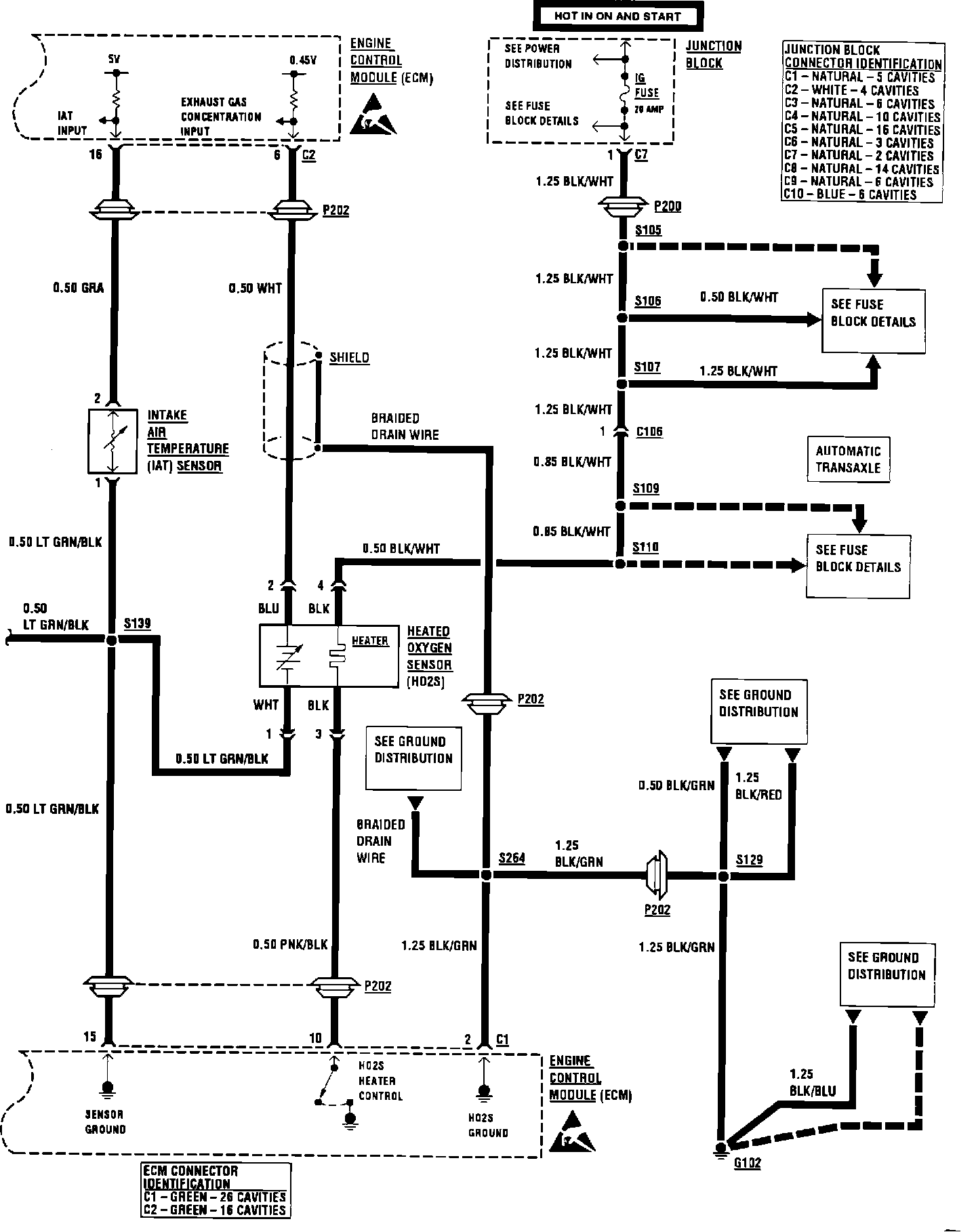

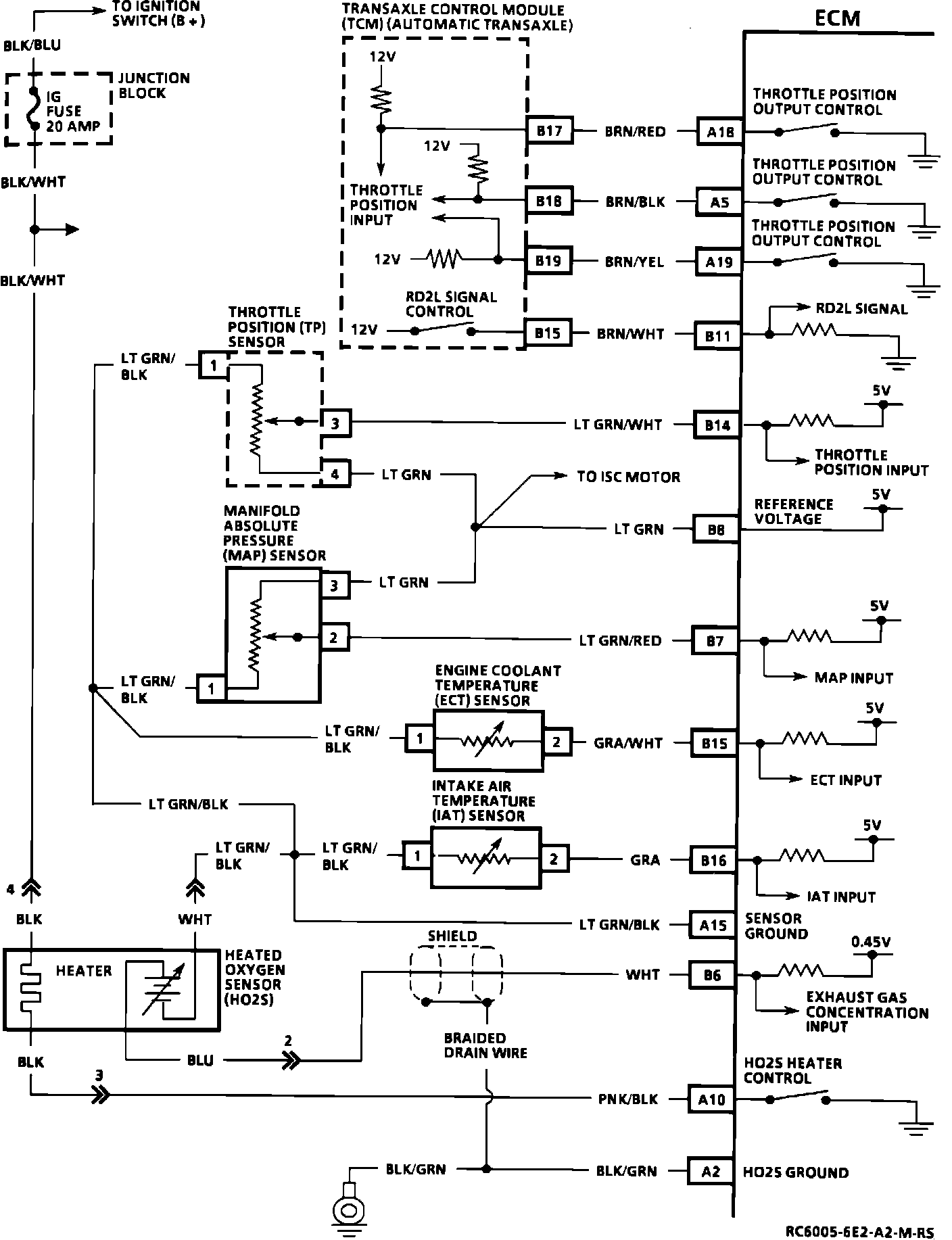

ECM Wiring 94 Metro W/ Upgraded Emissions:

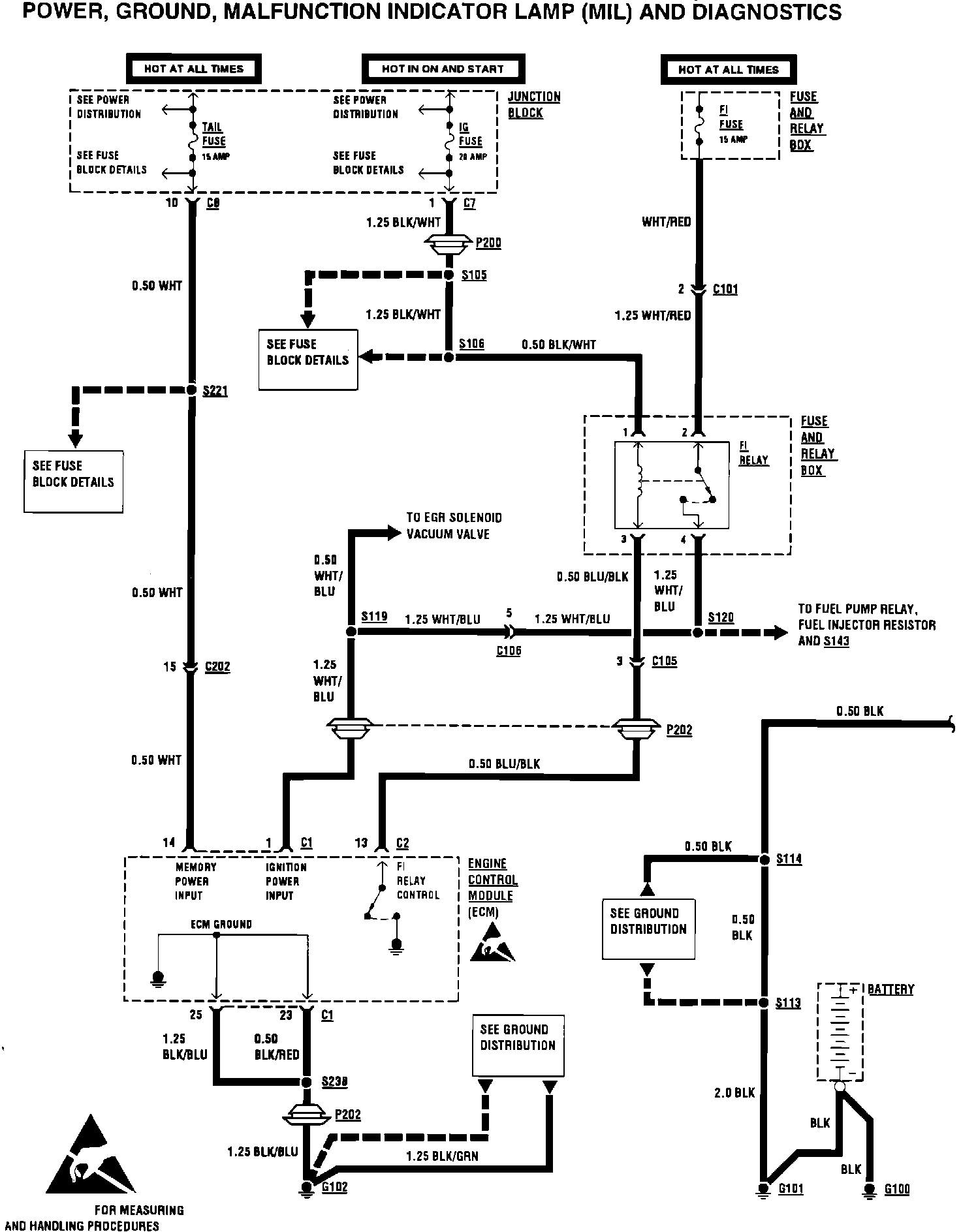

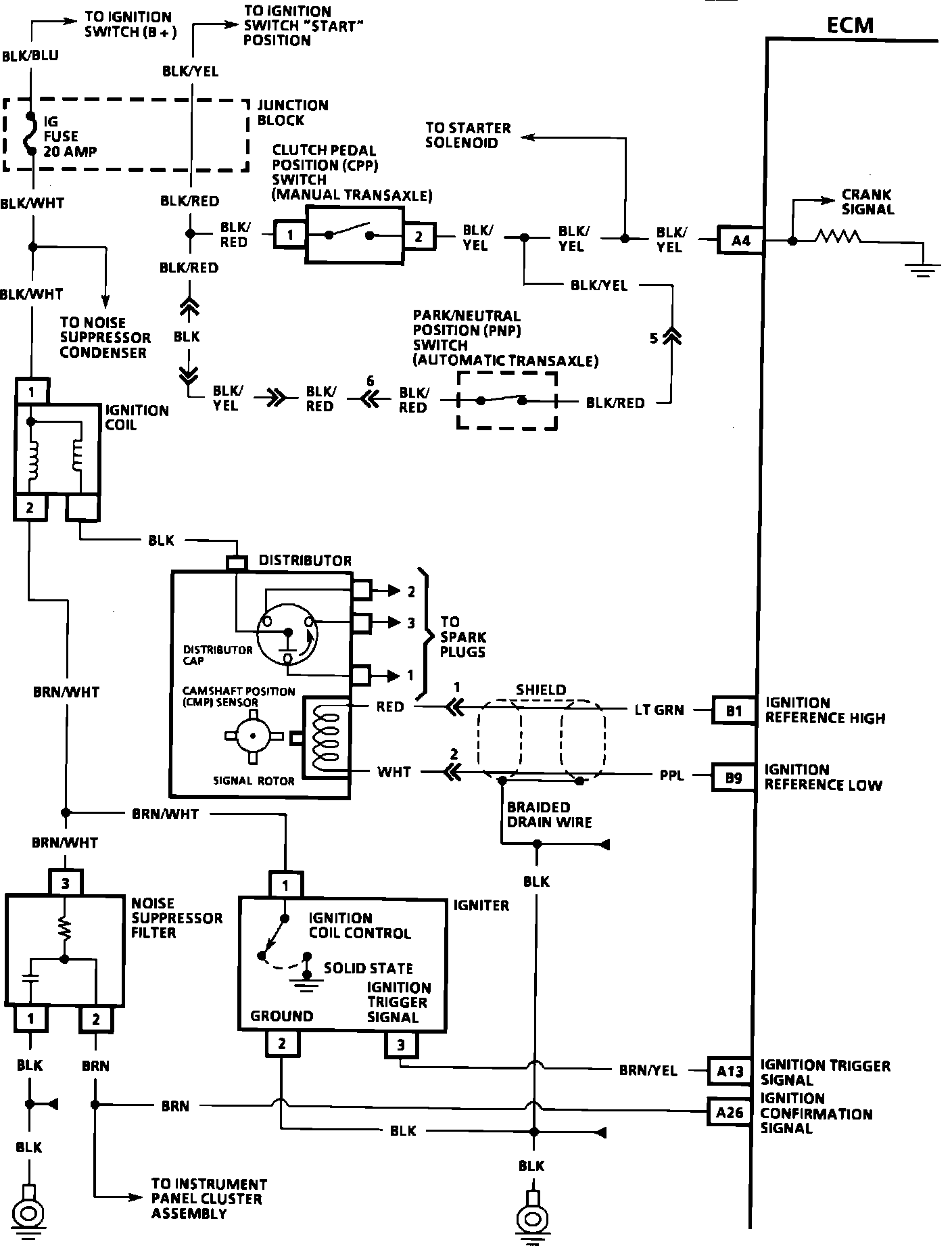

ECM Wiring 94 Metro W/ Upgraded Emissions:

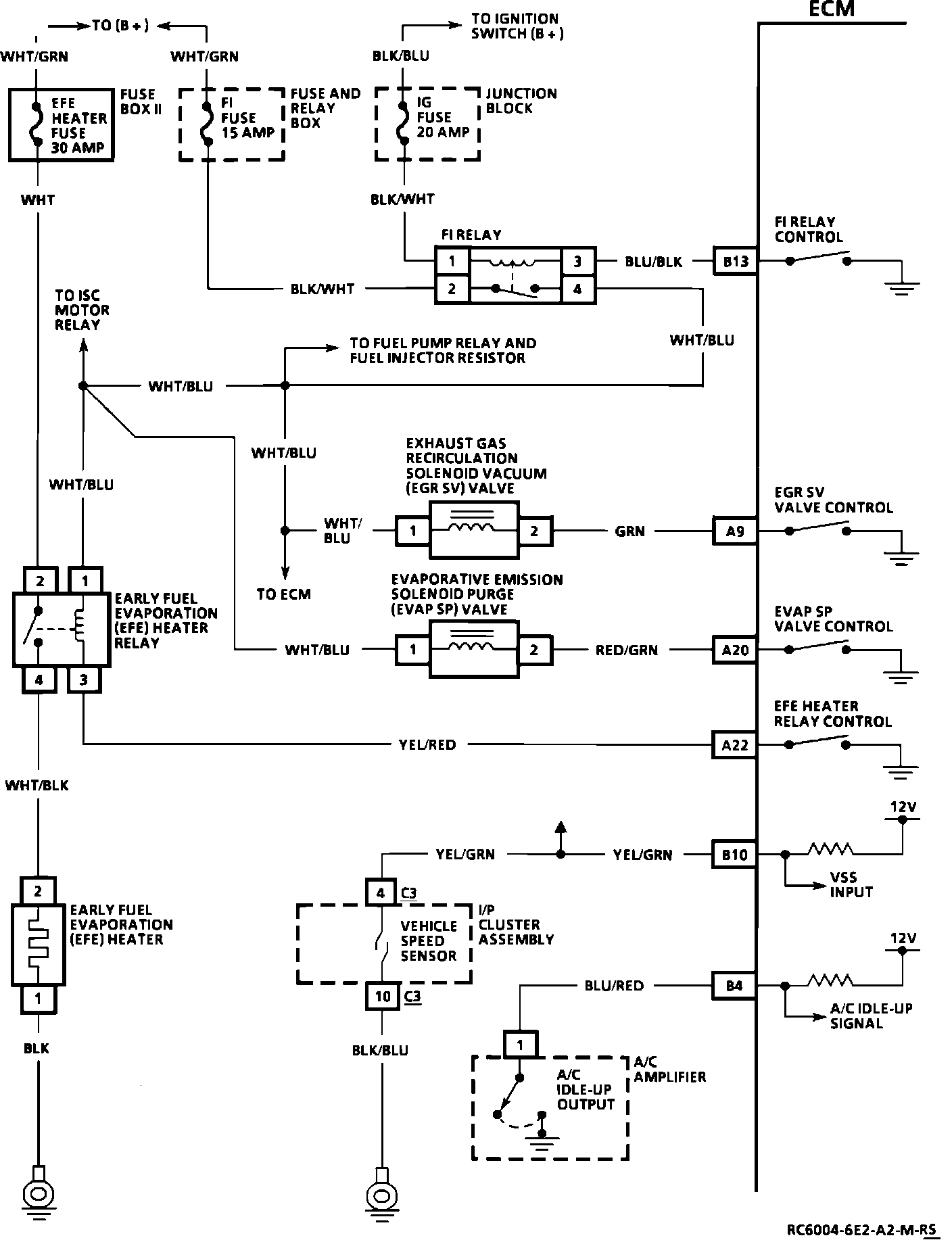

ECM Wiring 94 Metro W/ Upgraded Emissions:

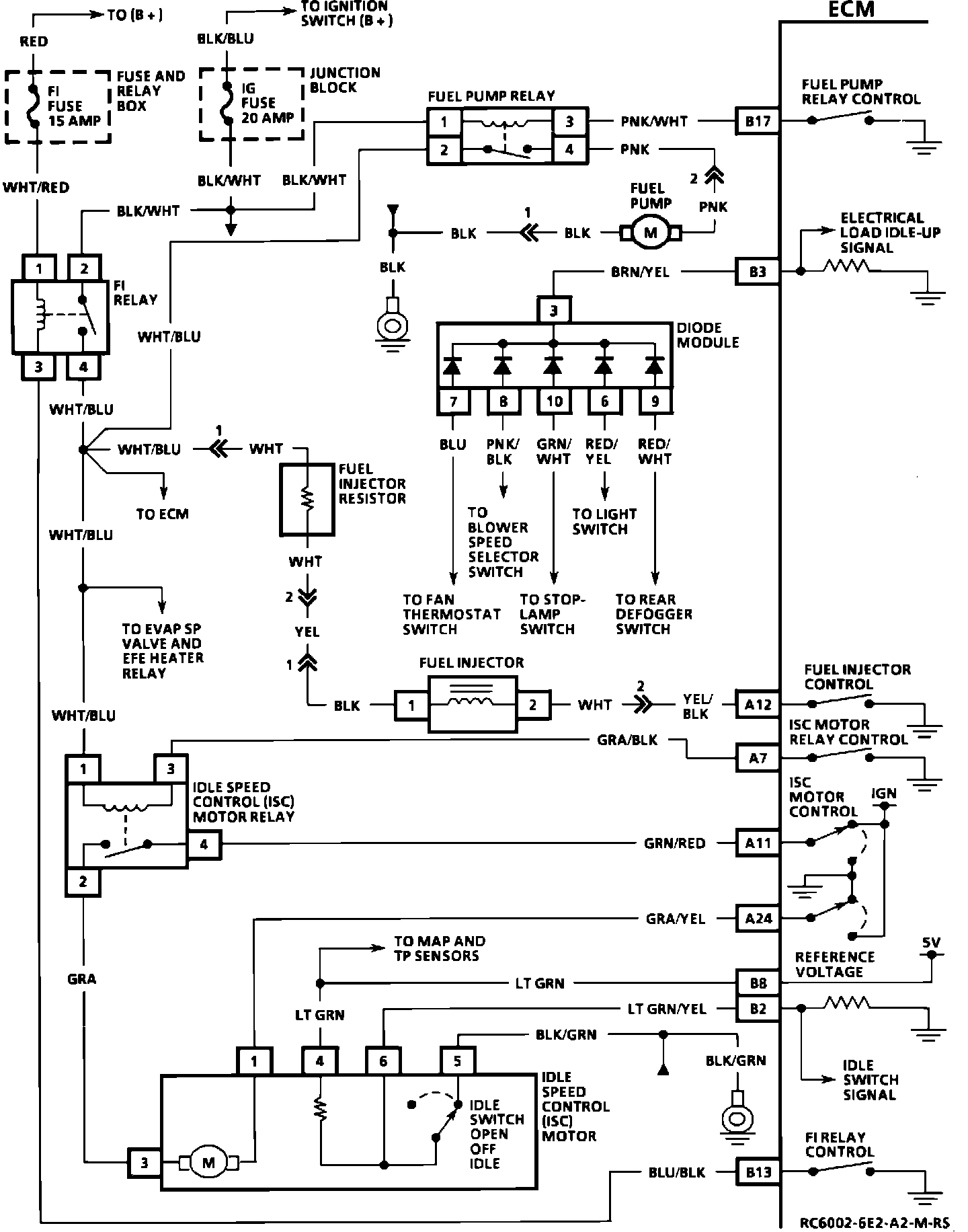

ECM Wiring 94 Metro W/ Upgraded Emissions:

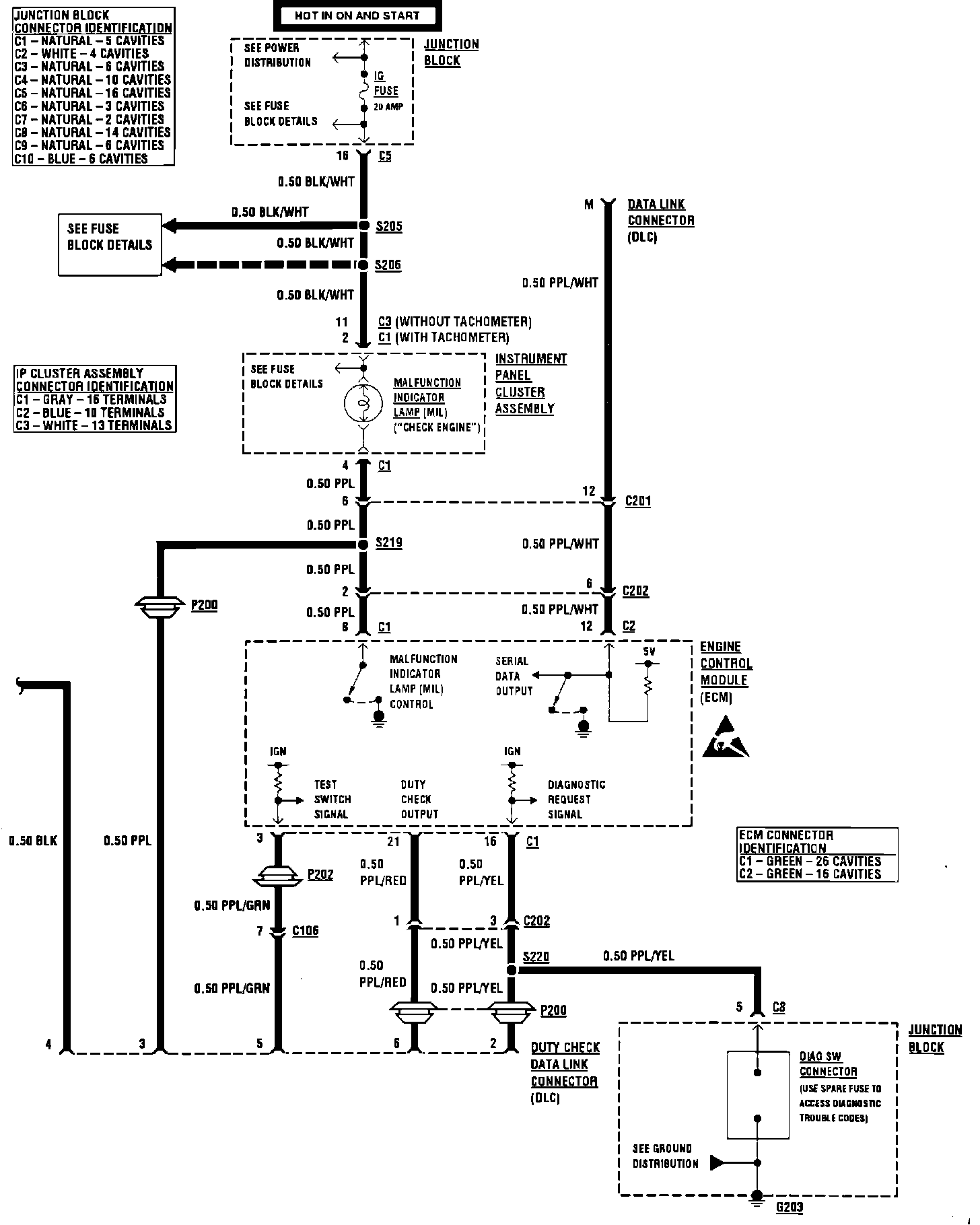

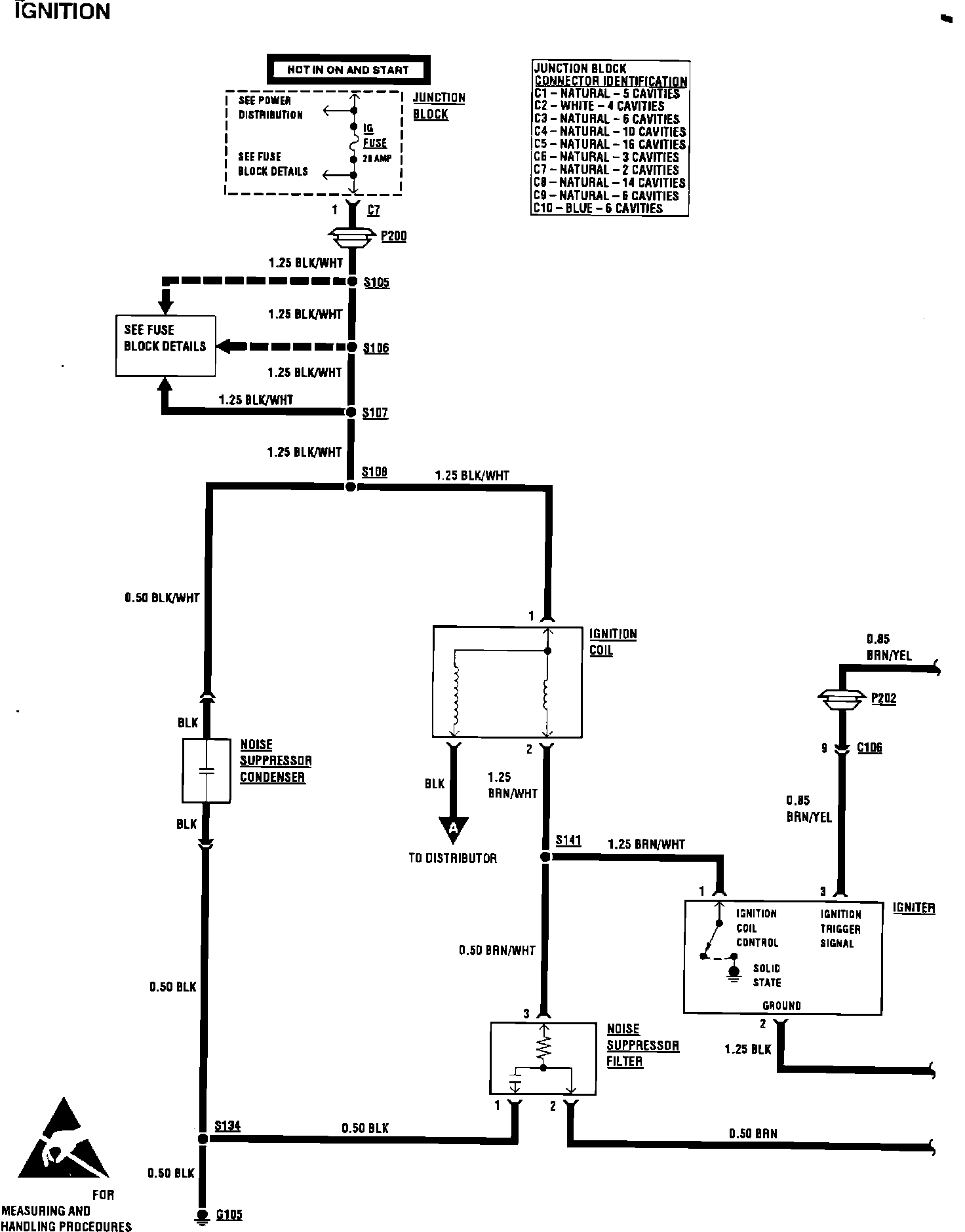

Wiring Diagram 94 Metro W/ Upgraded Emissions:

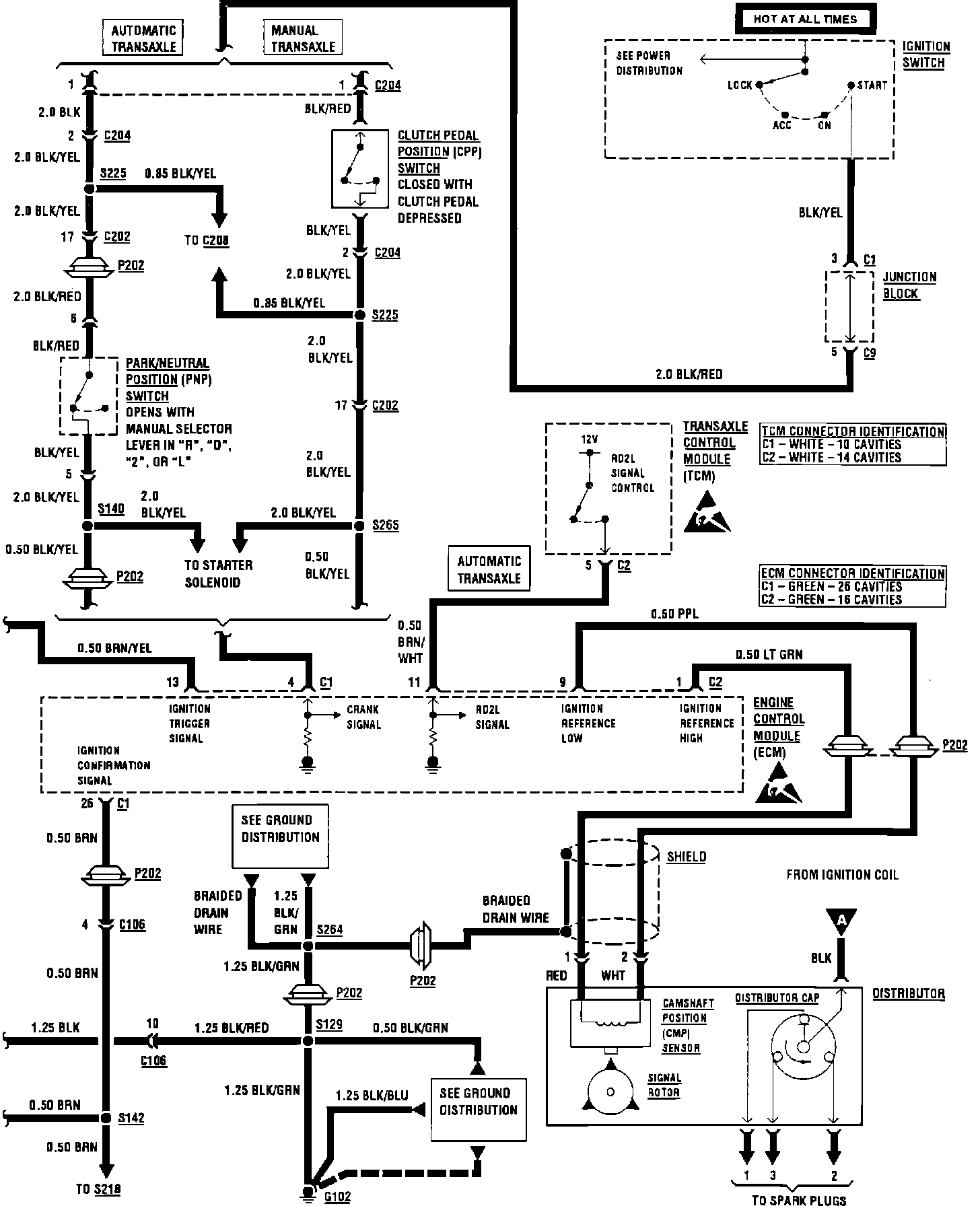

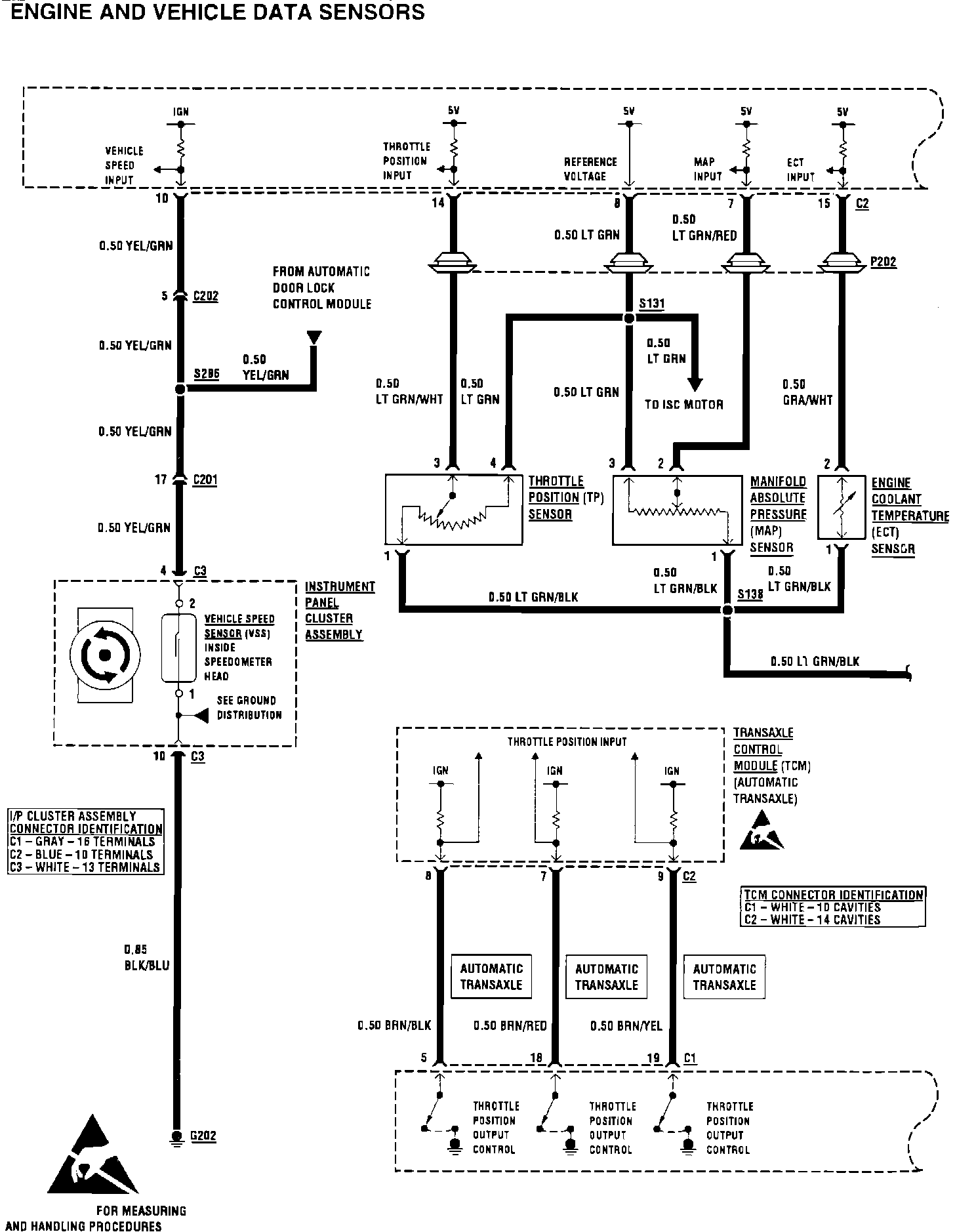

Wiring Diagram 94 Metro W/ Upgraded Emissions:

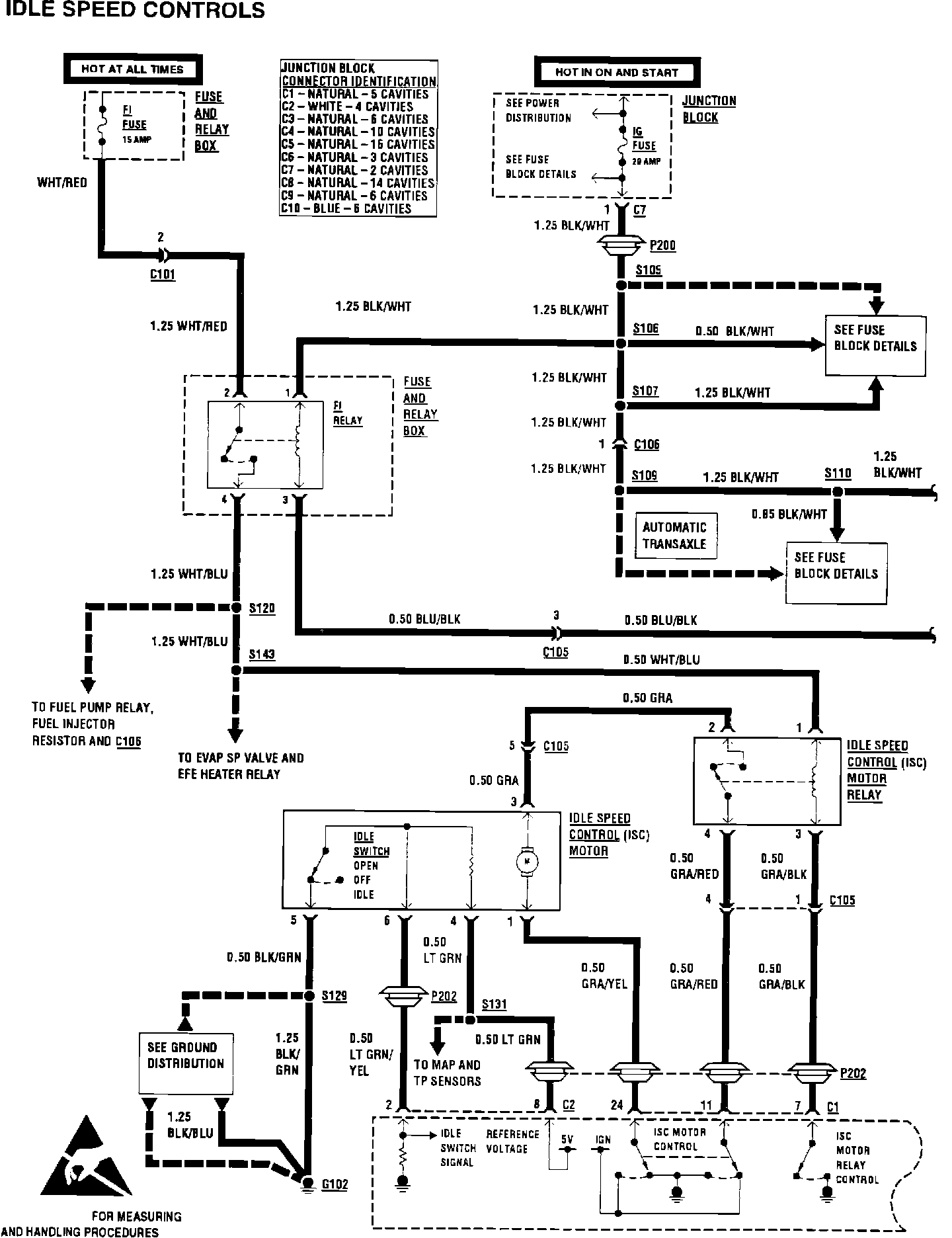

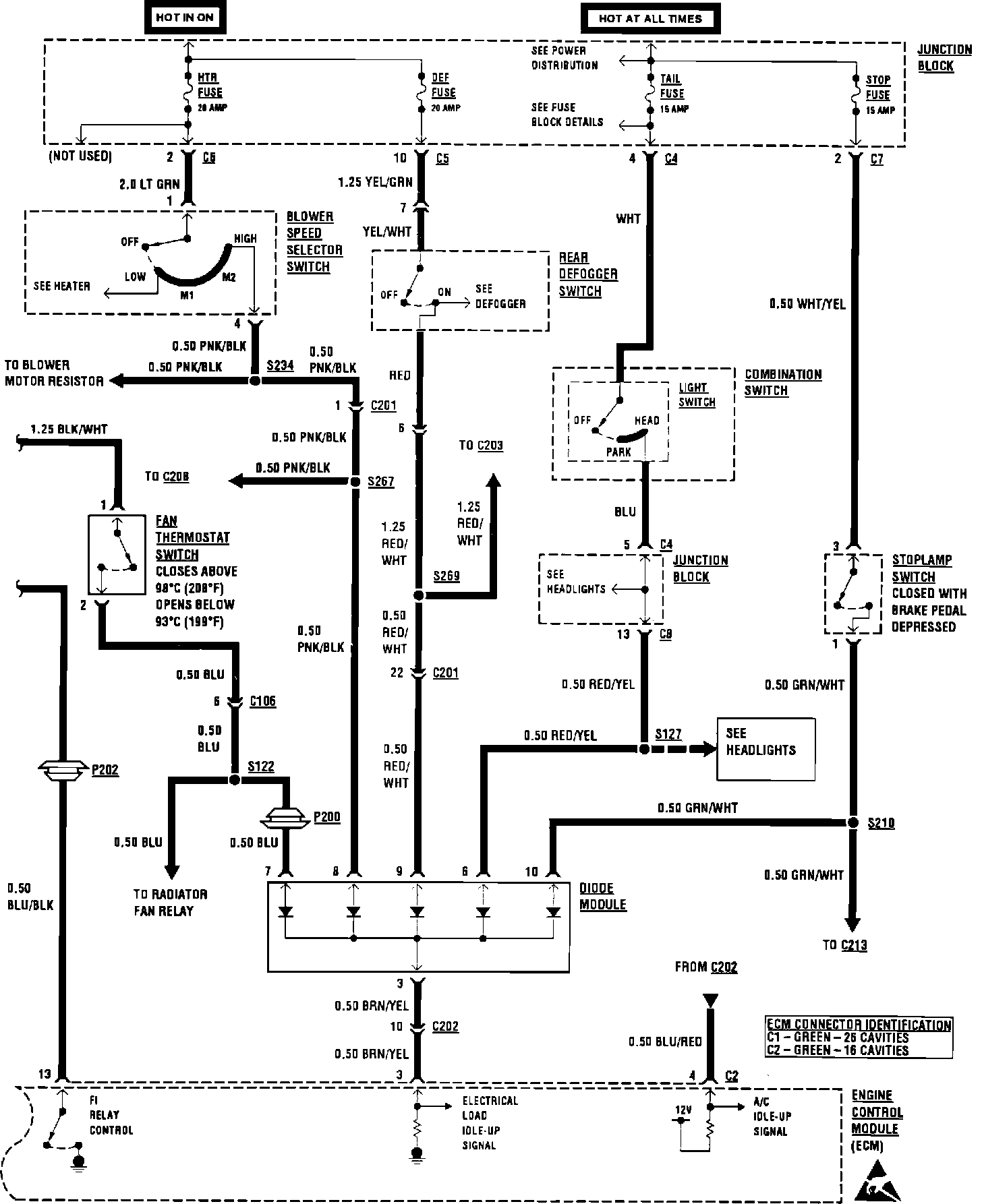

Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:
