Cruise Control Module

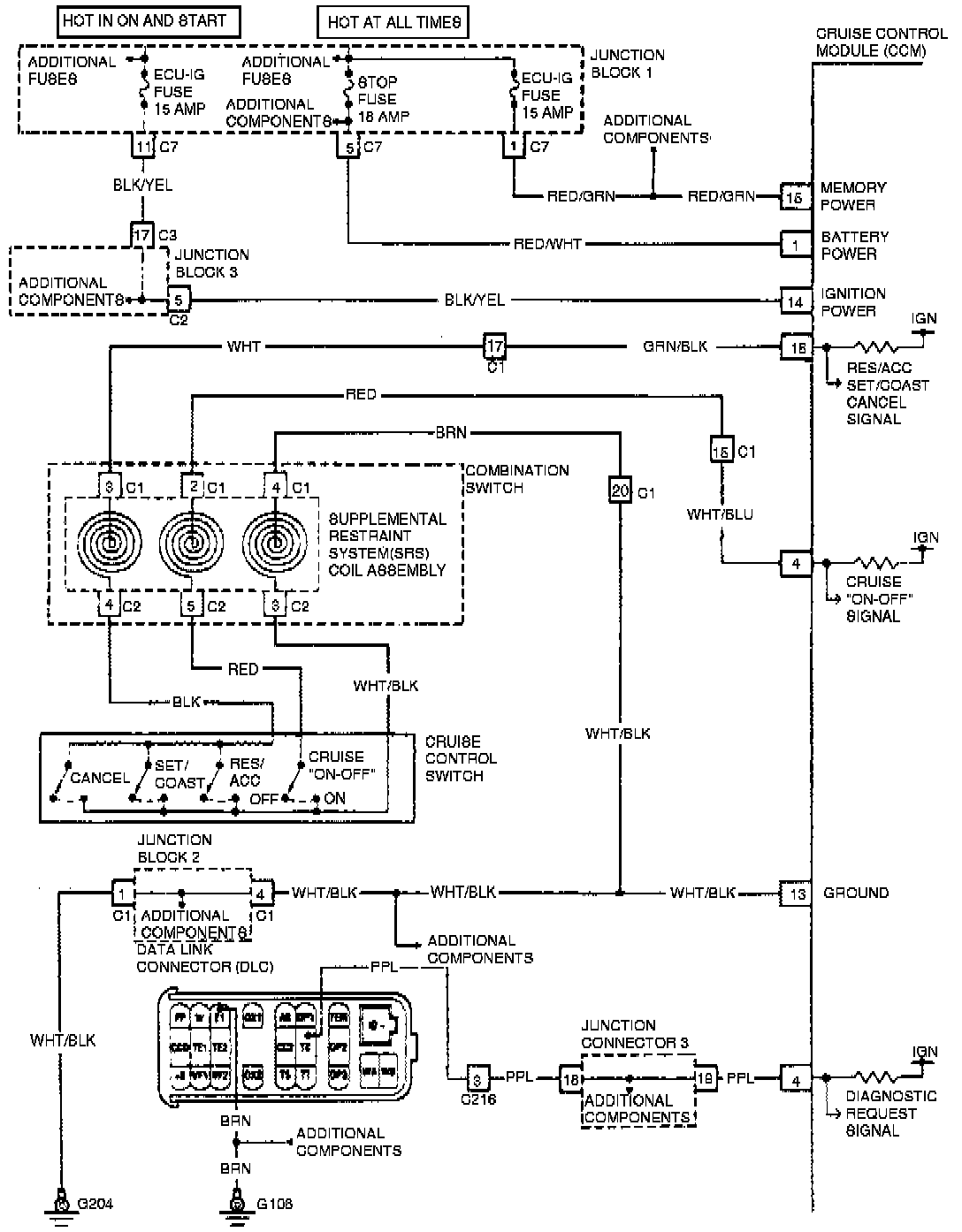

Fig. 23 Cruise Control Module Wiring Diagram (Part 1 Of 5).:

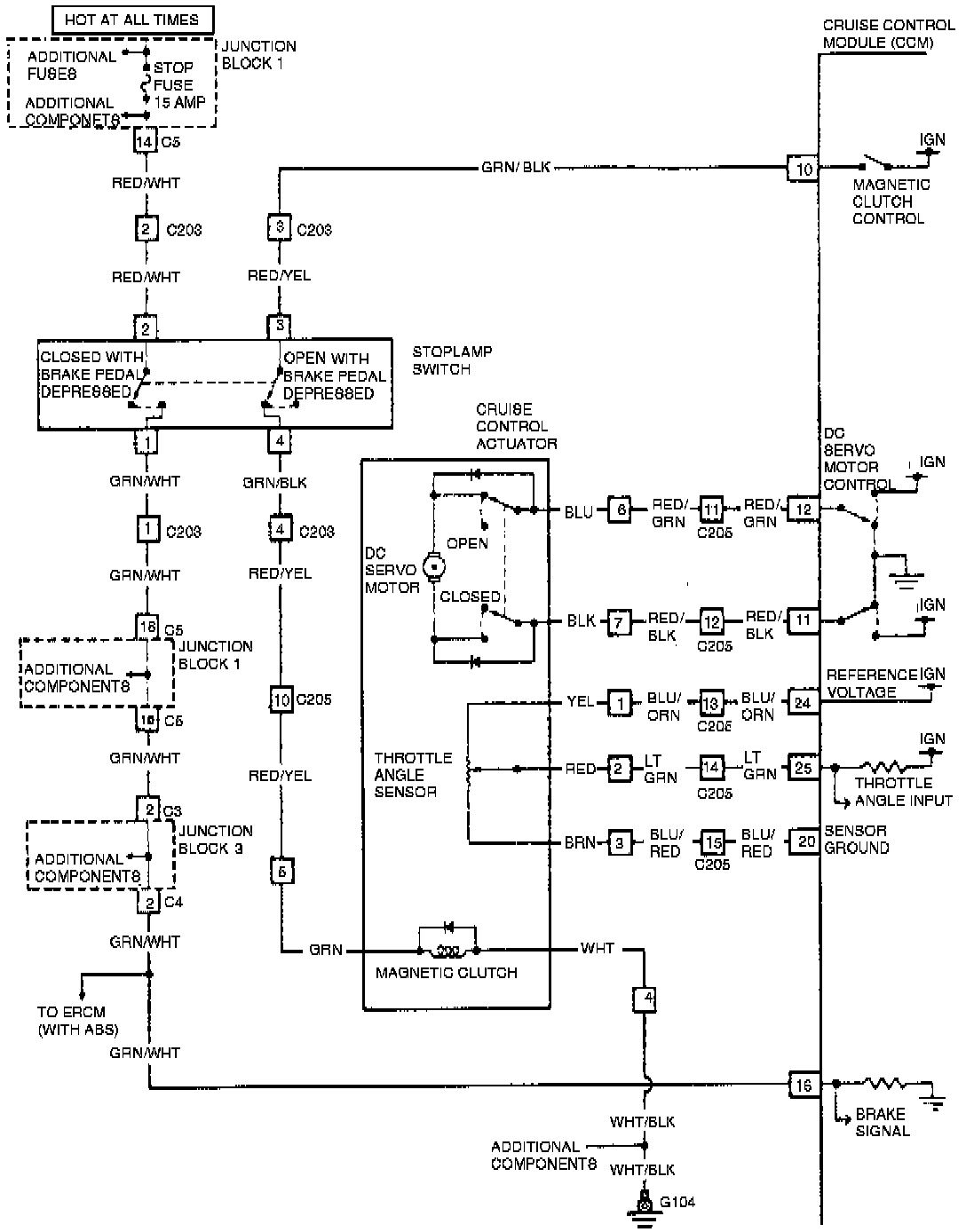

Fig. 23 Cruise Control Module Wiring Diagram (Part 2 Of 5).:

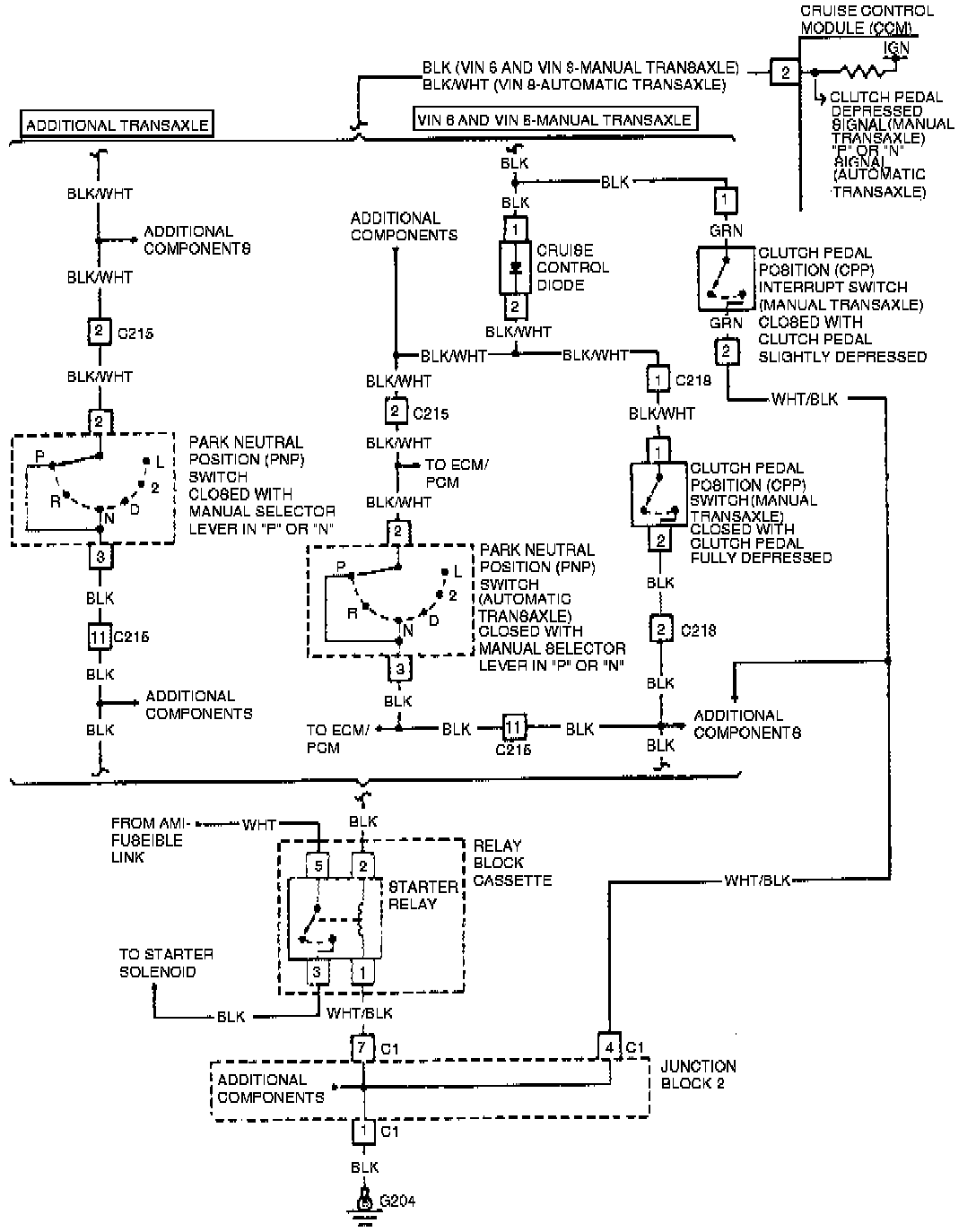

Fig. 23 Cruise Control Module Wiring Diagram (Part 3 Of 5).:

Fig. 23 Cruise Control Module Wiring Diagram (Part 4 Of 5).:

Fig. 23 Cruise Control Module Wiring Diagram (Part 5 Of 5).:
