Automatic

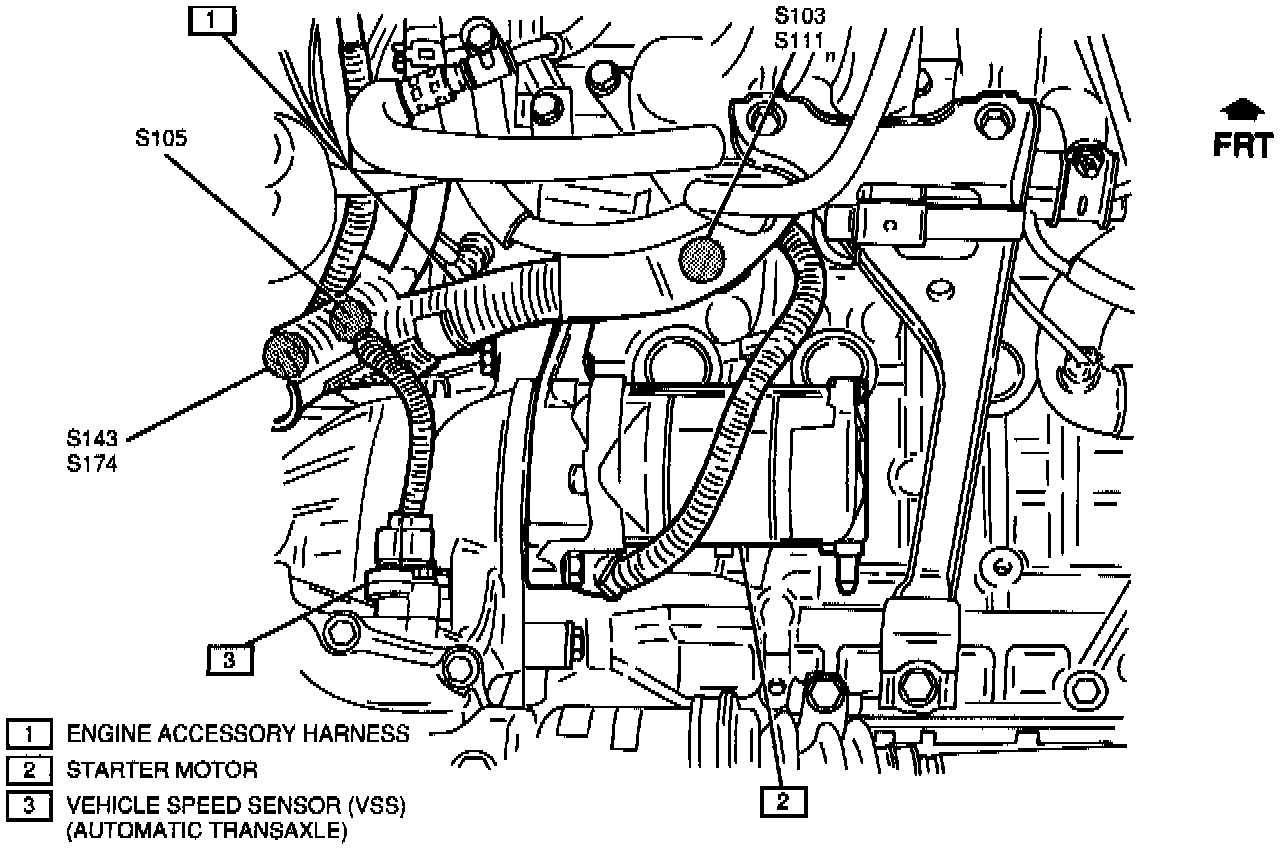

Figure B - LH Rear Of Engine:






The Vehicle Speed Sensor is located above the differential on the transaxle.
