Electronic/Powertrain Control Module (ECM/PCM)

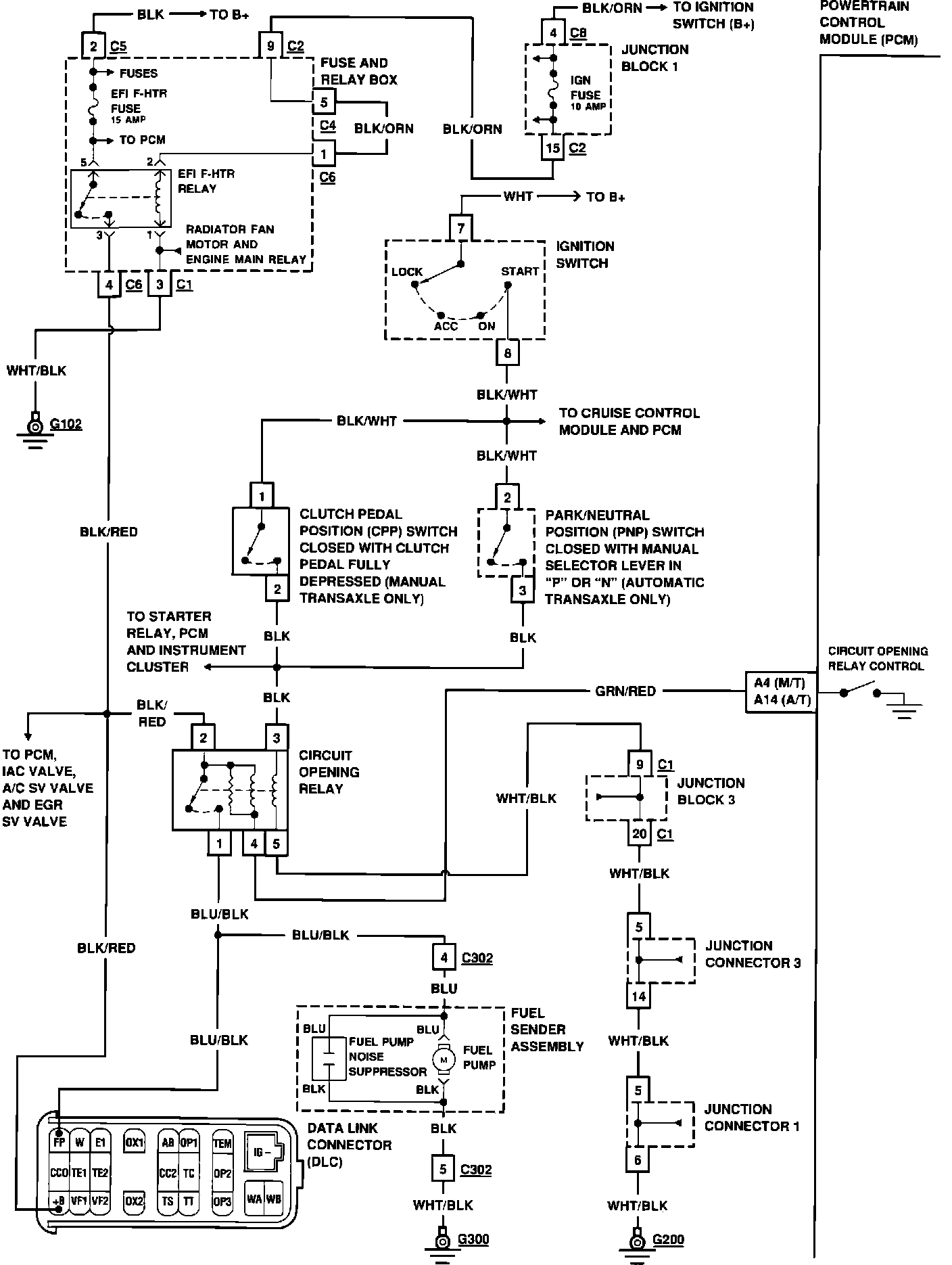

PCM System Schematic:

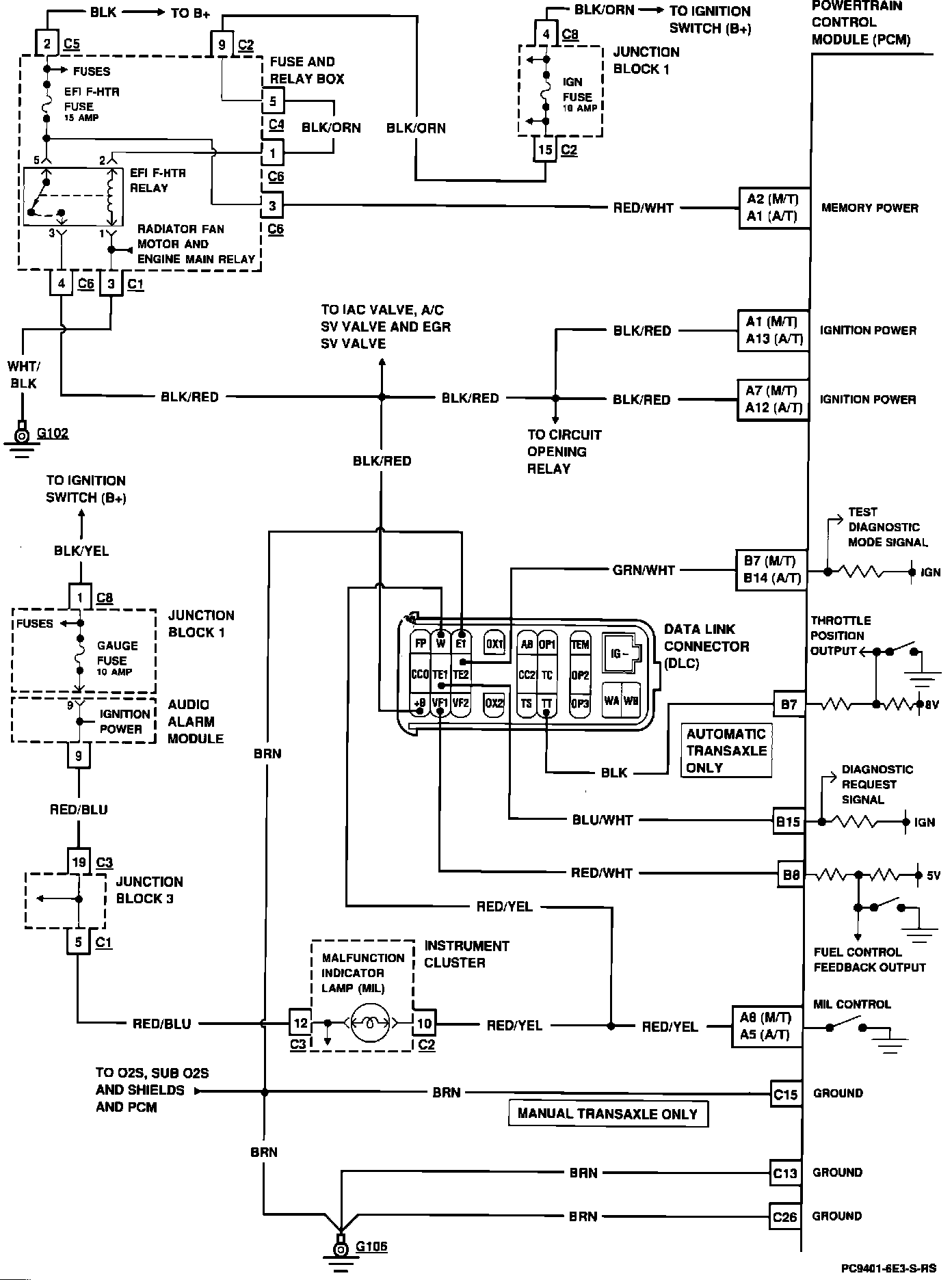

PCM System Schematic:

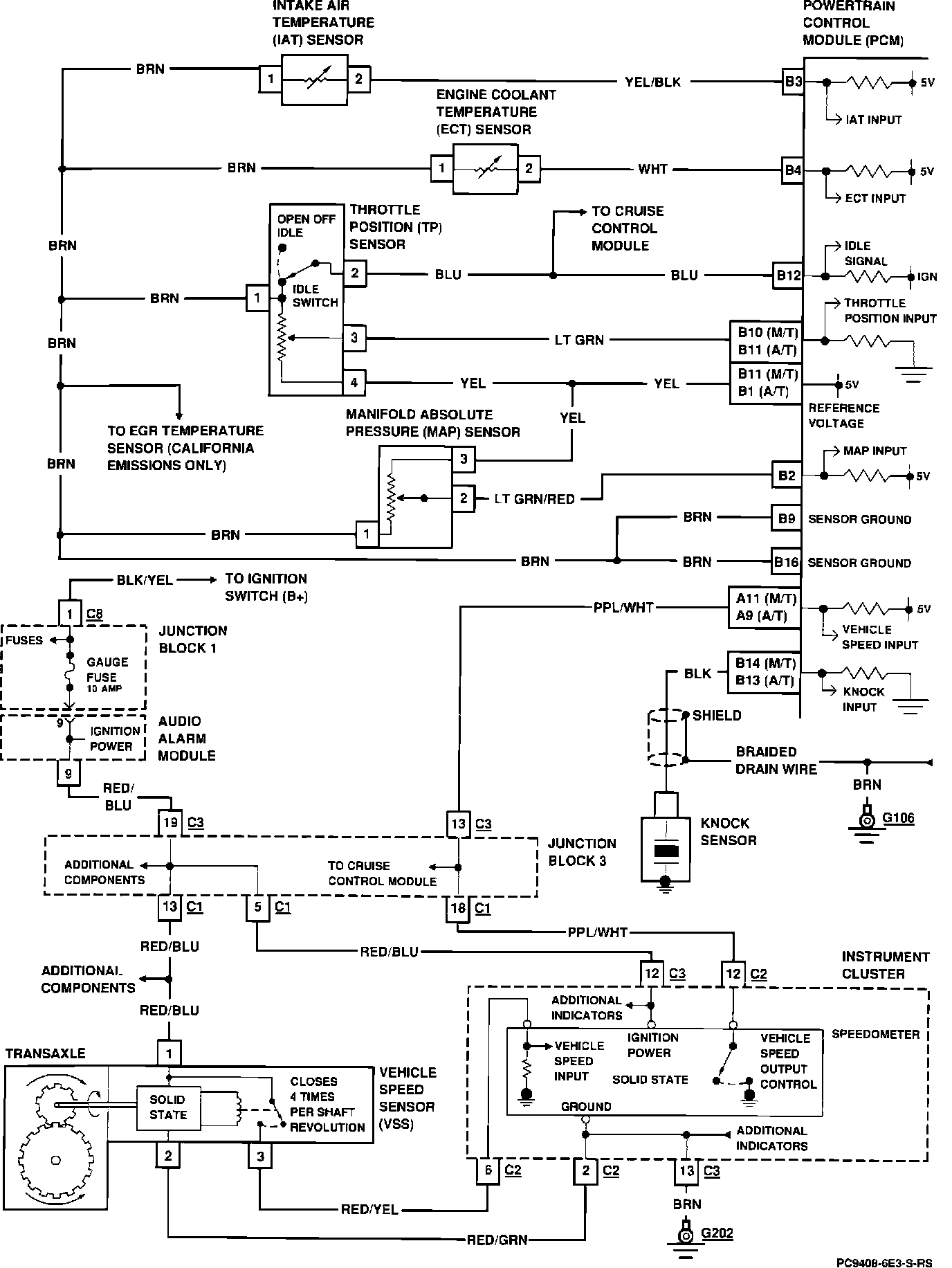

PCM System Schematic:

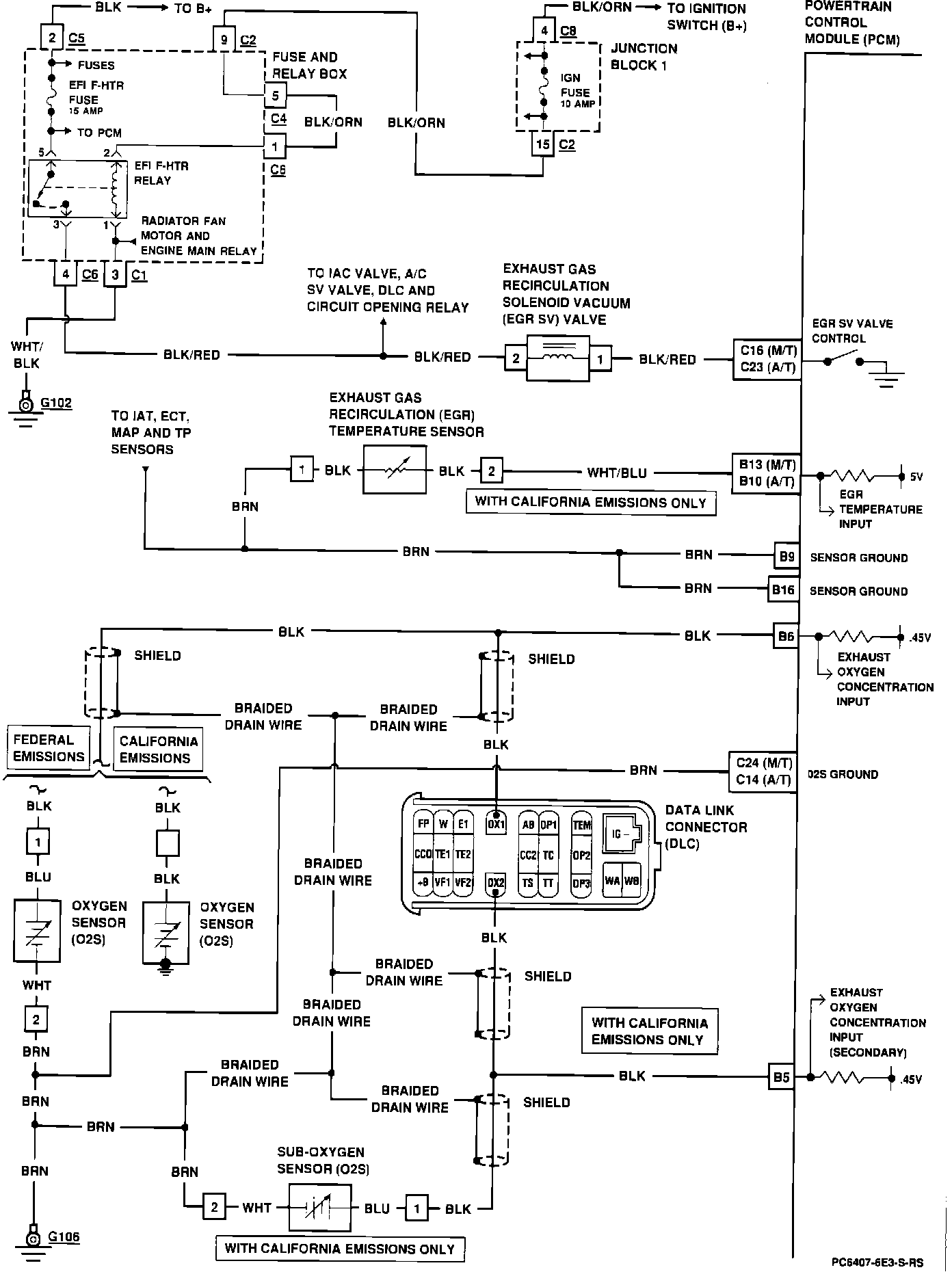

PCM System Schematic:

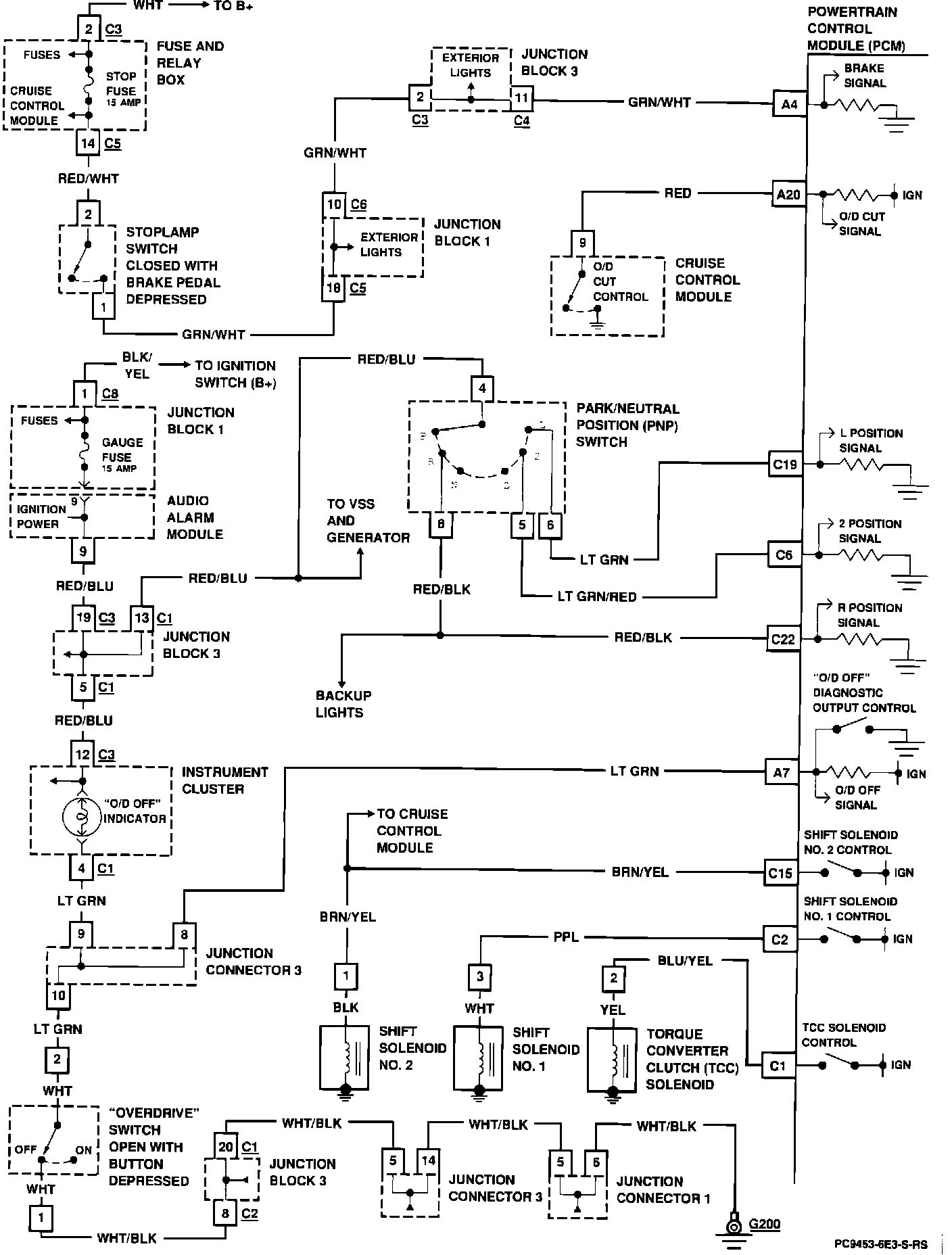

PCM System Schematic:

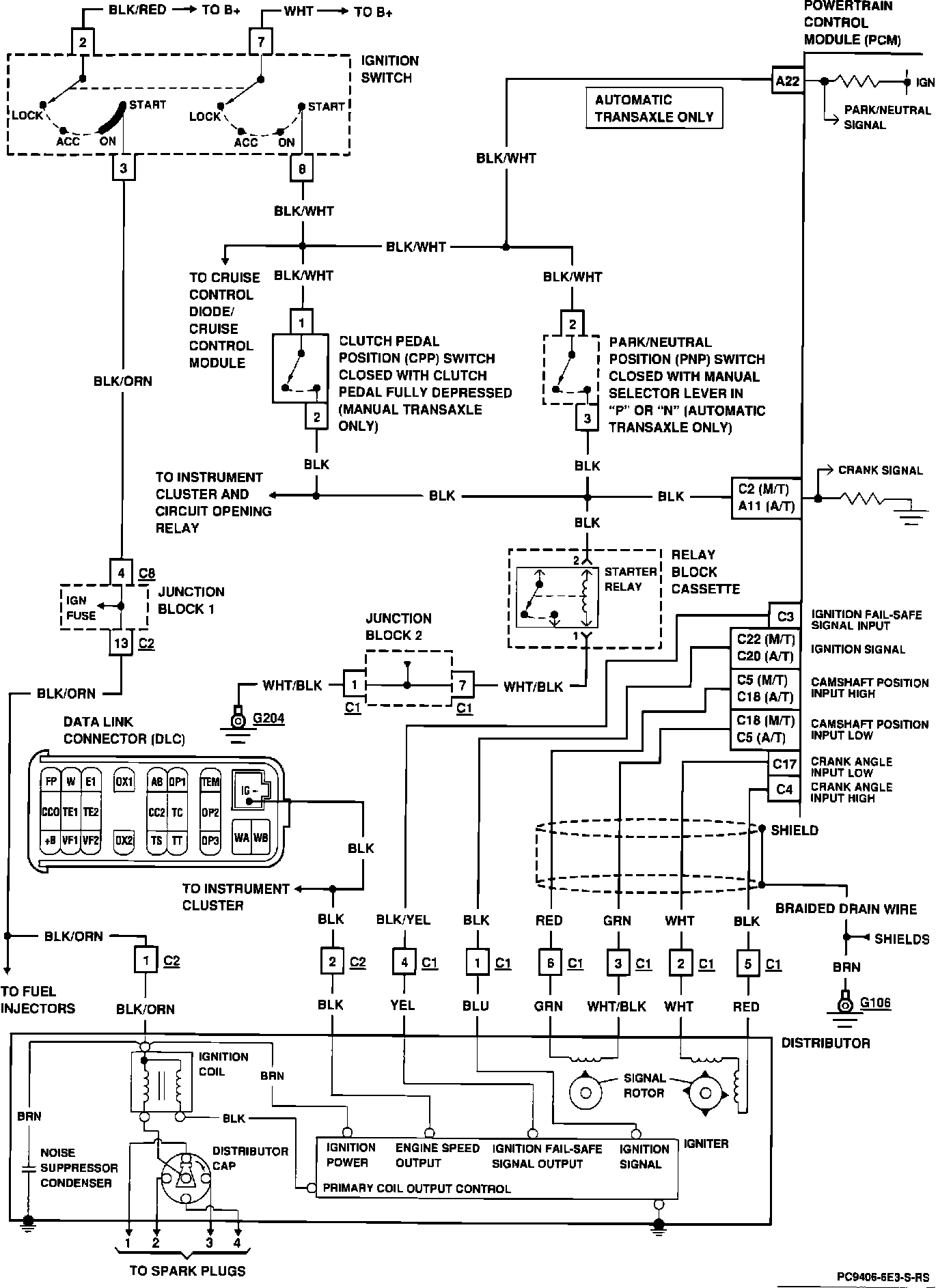

PCM System Schematic:

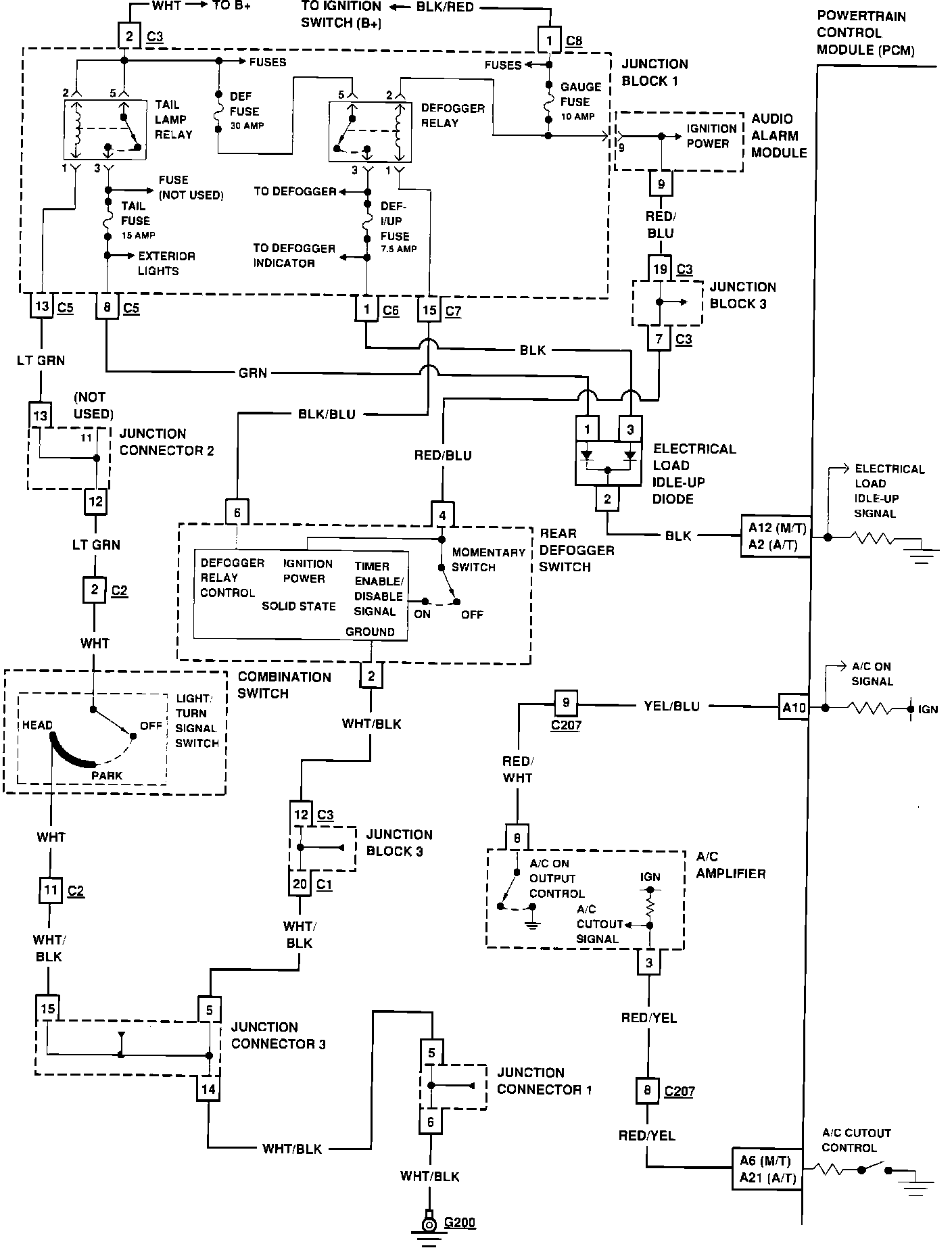

PCM System Schematic:

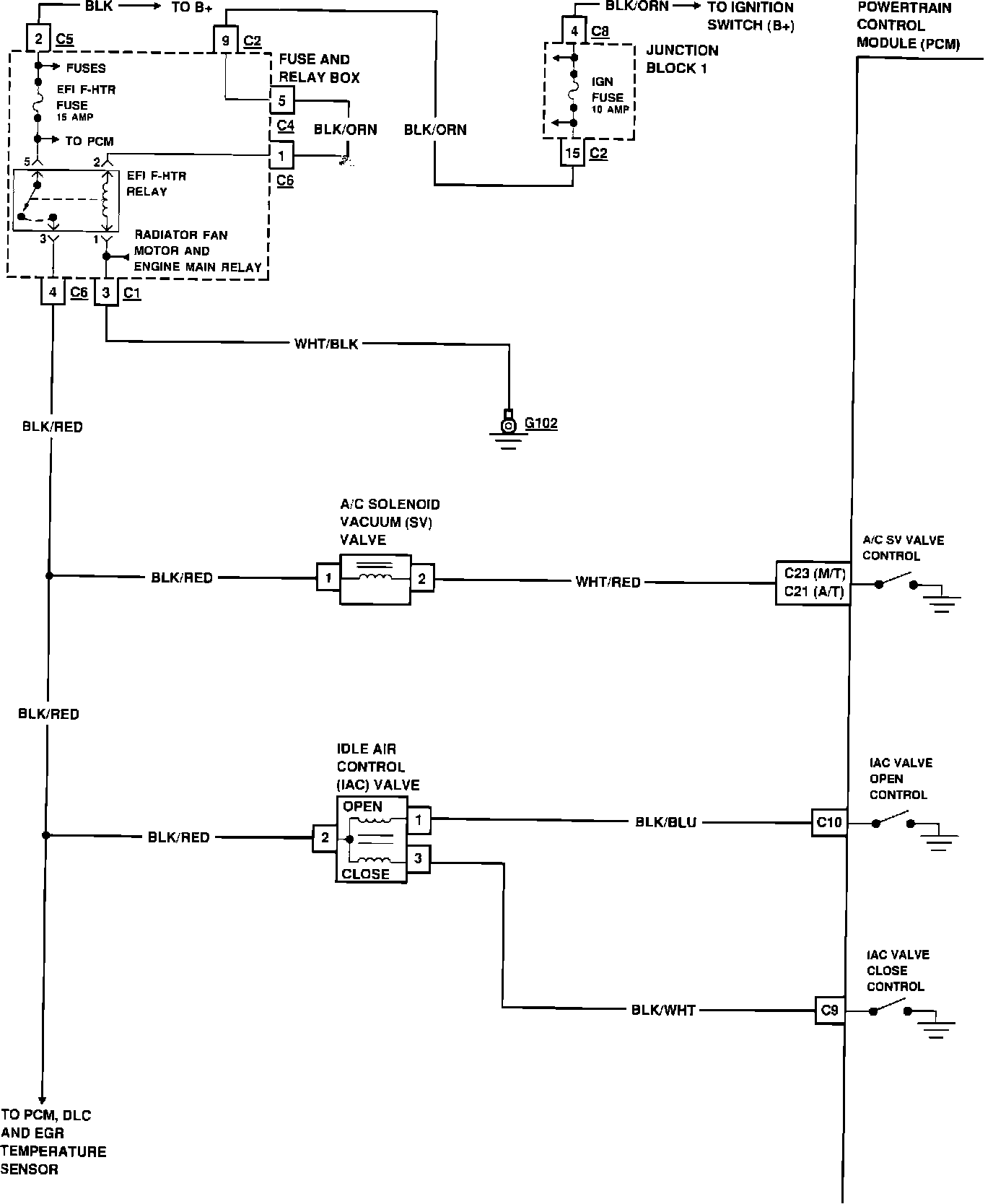

PCM System Schematic:



PCM System Schematic:
