Test A: Scan Tool Will Not Communicate With Electronic Brake Control Module

For testing procedure, refer to flowchart. See Fig 1 .

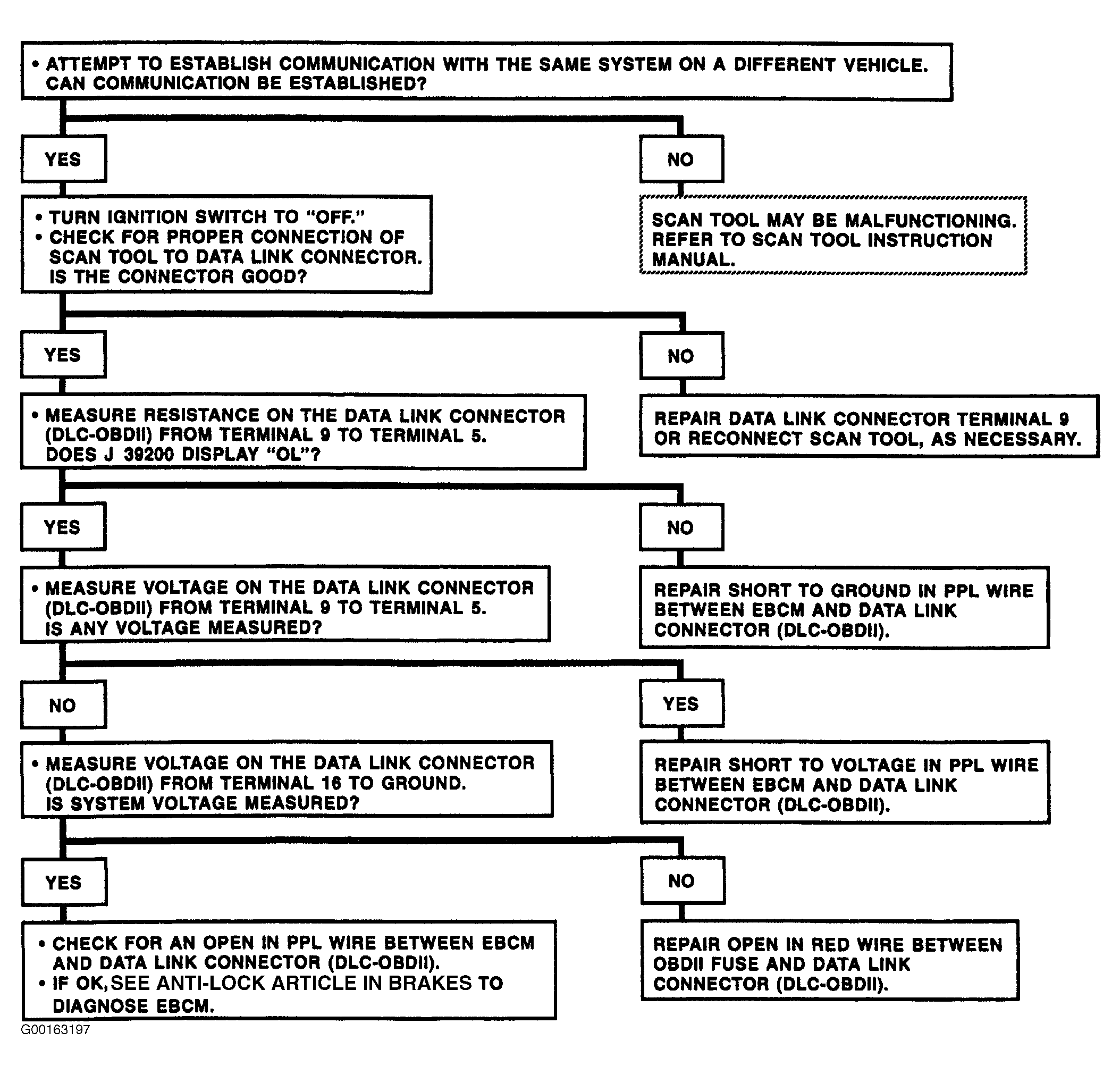

Fig 1: Test A: Scan Tool Will Not Communicate With EBCM

Courtesy of GENERAL MOTORS CORP.
