Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Fuse Holder | Right side of engine compartment, attached to A/C compressor clutch relay. |
| A/C Fusible Link | Connected to positive (+) battery terminal. |
| A/C Switch Fuse | Behind center of dash. |
| Air Bag Fuse Box (1996) | Under left side of dash, near fuse block No. 2. |
| Fuse Block (1.6L VIN U) | Behind dash, left of steering column. See Figure . |

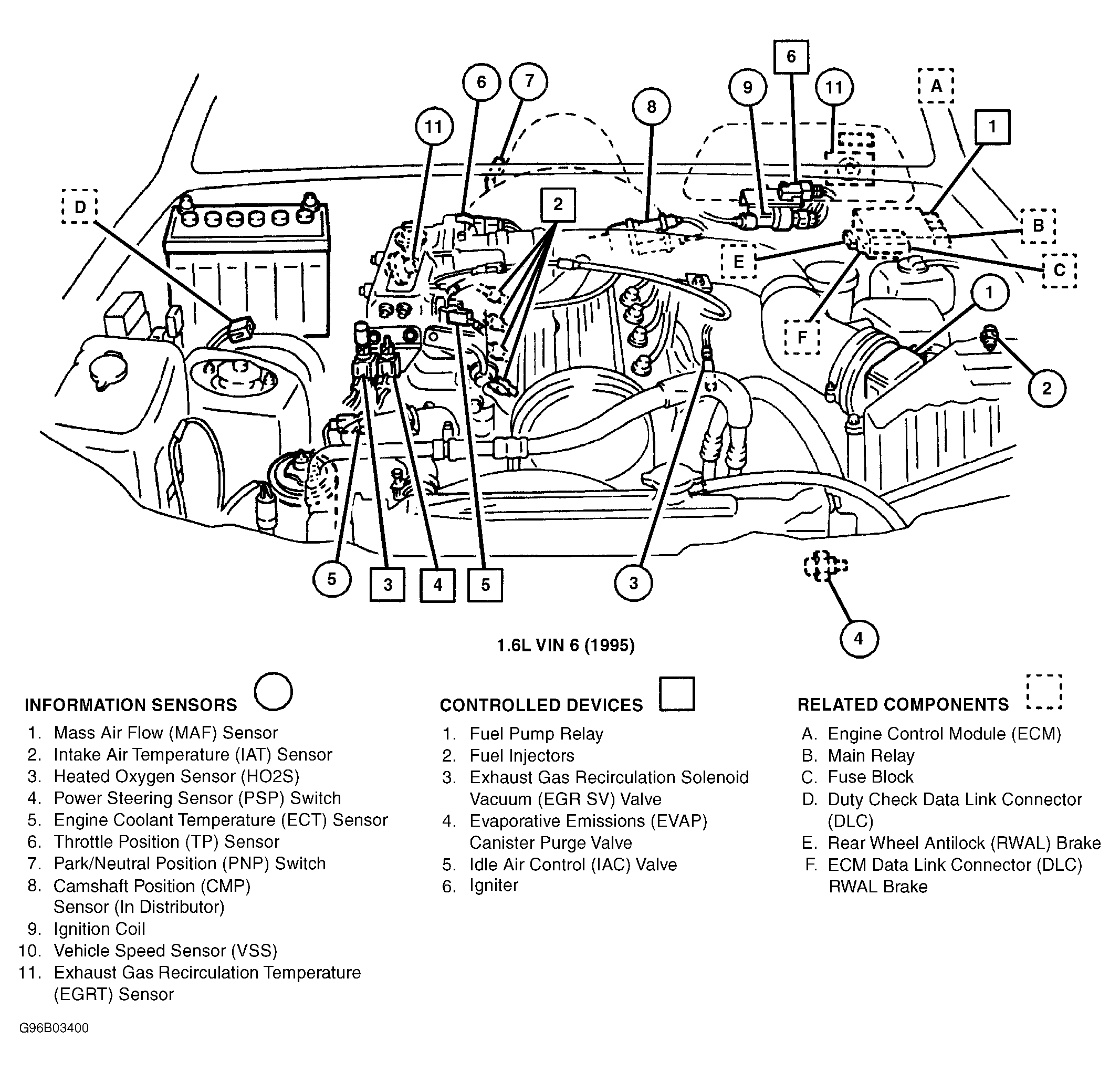

| Fuse Block (1.6L VIN 6) (1995) | Behind dash, left of steering column. See Figure . |

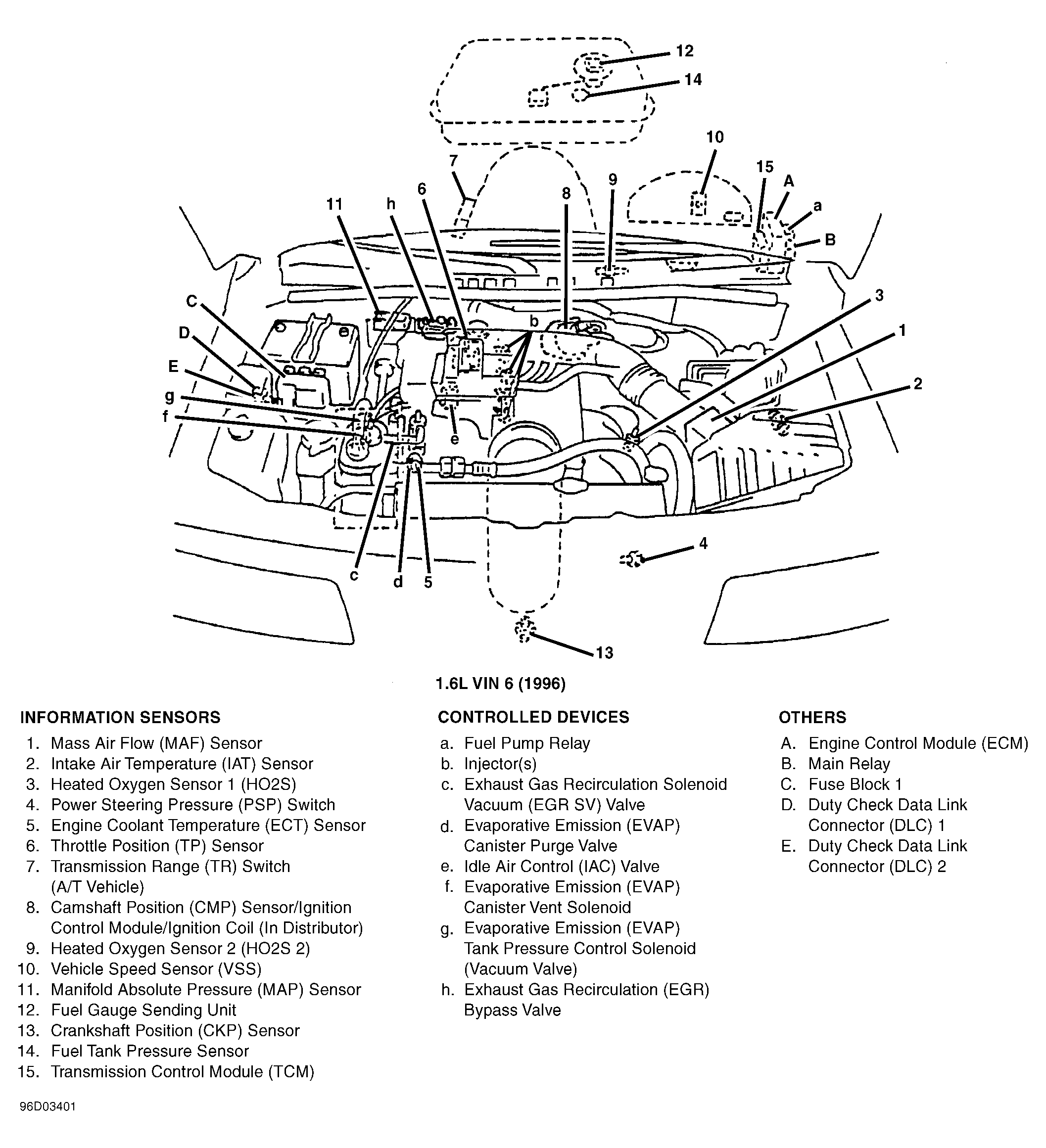

| Fuse Block No. 1 (1.6L VIN 6) (1996) | On right side of engine compartment, front of battery. See Figure . |
| Fuse Block No. 2 (1996) | Under left side of dash. |
| Fusible Link Box | On right side of engine compartment, in front of battery. |
| Power Window Circuit Breaker (1996) | Mounted to fuse block No. 2. |
