Test B: Scan Tool Will Not Communicate With Class 2 Data Line

For testing procedure, refer to flowchart. See Fig 1.

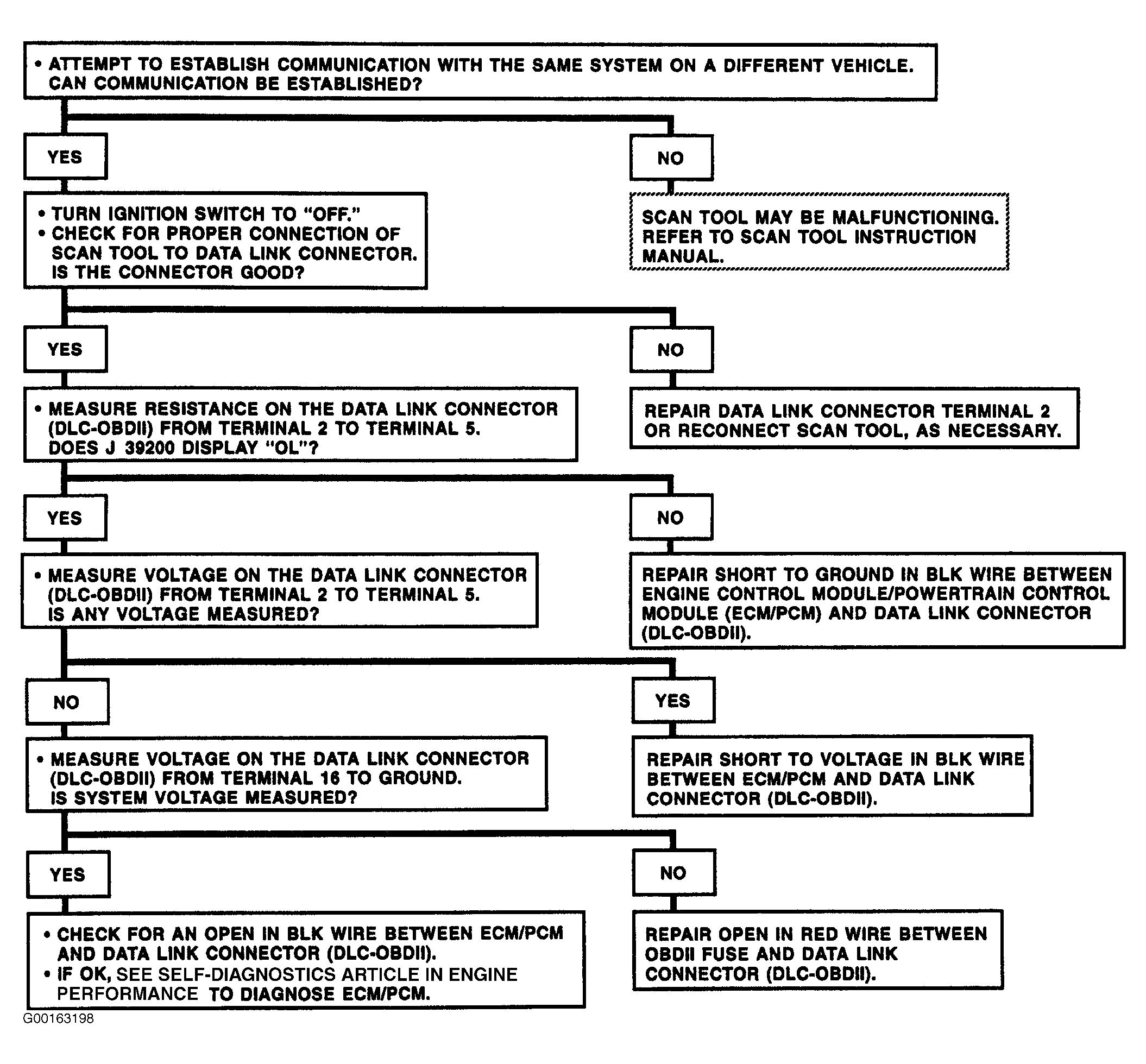

Fig 1: Test B: Scan Tool Will Not Communicate With Class 2 Data Line

Courtesy of GENERAL MOTORS CORP.
