Connector Identification
NOTE:
For additional connector and terminal identification, see WIRING DIAGRAMS .

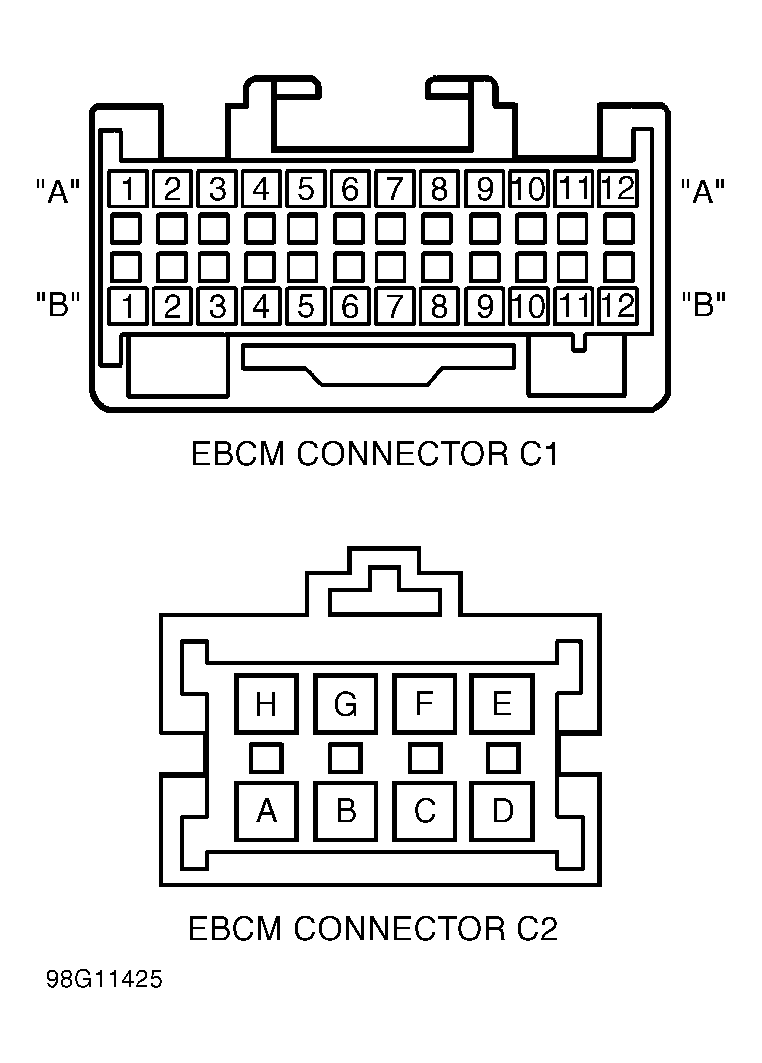

EBCM CONNECTOR TERMINAL IDENTIFICATION
| Terminal (Wire Color) | Circuit | ||
|---|---|---|---|
| Connector C1 (1) | |||
| A1 (PPL) | Serial Data | ||
| A2 (YEL) | Right Rear Wheel Speed Sensor (High) | ||
| A3 (BLU) | Left Rear Wheel Speed Sensor (High) | ||
| A4 (BLK) | Right Front Wheel Speed Sensor (High) | ||
| A5 (RED) | Left Front Wheel Speed Sensor (High) | ||
| A6 (GRN/RED) | "ABS ACTIVE" Indicator Control | ||
| A7 (RED/YEL) | Lamp Driver Module Control | ||
| A9 (GRY) | Switched Ignition | ||
| A10 (BRN/RED) | Left Front Solenoid Control | ||
| A11 (BLU/BLK) | ABS Relay Control | ||
| B1 (BRN) | Right Rear Wheel Speed Sensor (Low) | ||
| B2 (PPL) | Left Rear Wheel Speed Sensor (Low) | ||
| B3 (WHT) | Right Front Wheel Speed Sensor (Low) | ||
| B4 (GRN) | Left Front Wheel Speed Sensor (Low) | ||
| B5 (RED/BLK) | "BRAKE" Indicator Control | ||
| B6 (BRN/WHT) | Right Front Solenoid Control | ||
| B9 (GRN/WHT) | Stoplight Switch Input | ||
| B12 (BLU/YEL) | Battery Positive Feed | ||
| Connector C2 (1) | |||
| A (RED/WHT) | Right Front Motor (High) | ||
| B (RED/GRN) | Right Front Motor (Low) | ||
| C (BLU/ORG) | Switched Battery Input | ||
| D (WHT/BLK) | Ground | ||
| E (GRN/YEL) | Rear Motor (Low) | ||
| F (GRN/BLK) | Rear Motor (High) | ||
| G (BLU/RED) | Left Front Motor (High) | ||
| H (BLU/WHT) | Left Front Motor (Low) | ||
|
|||
