Lock (Torque) Test

Mount starter in a test stand to allow starter torque measurement (follow manufacturers instructions). With voltage adjusted (see specifications ), ammeter reading and starter torque should be within specifications.

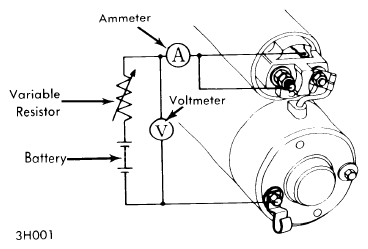

Fig 1: NO LOAD TEST HOOK-UP

Courtesy of AMERICAN HONDA MOTOR CO., INC.
