Cylinder Block Assembly

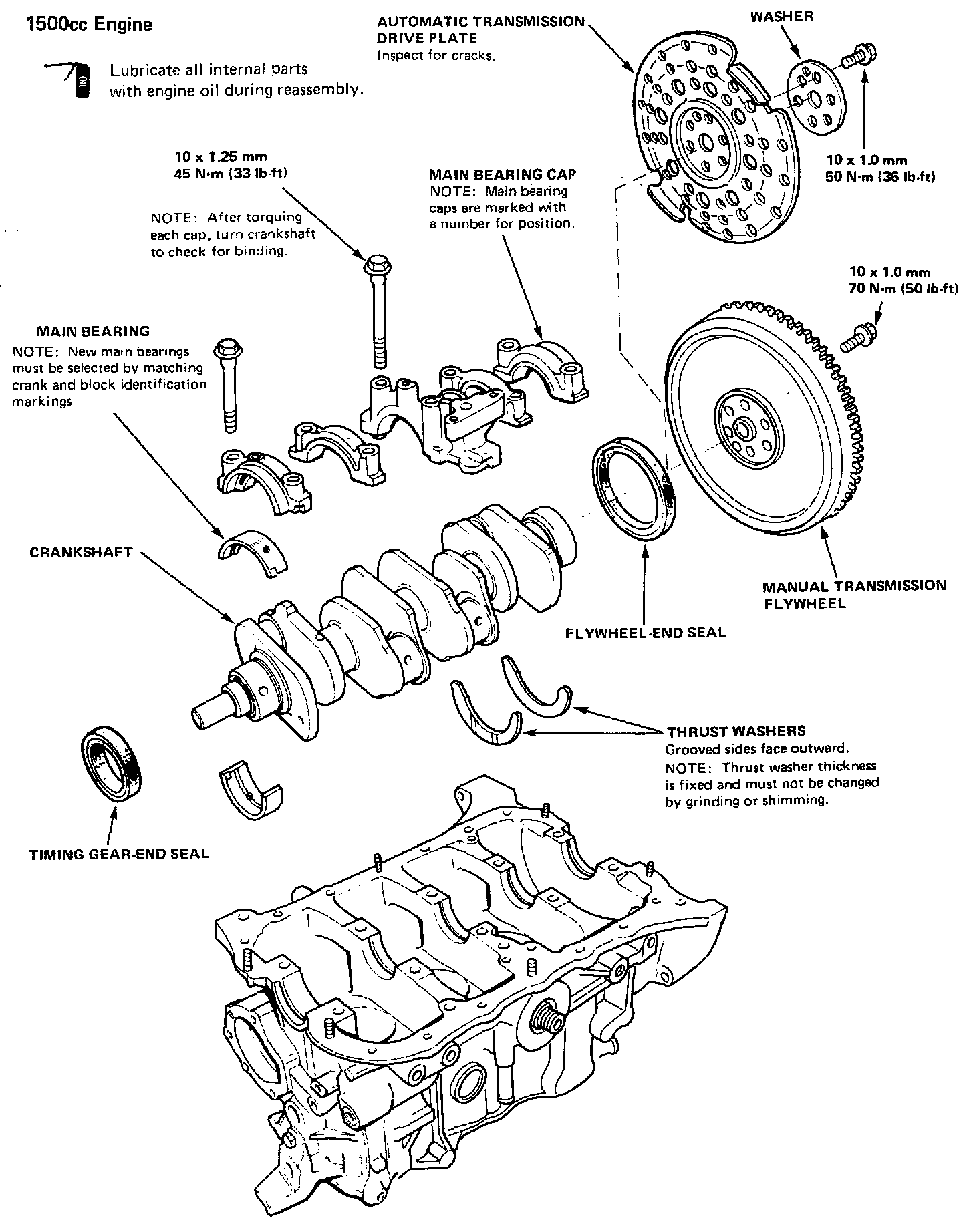

Crankshaft, Main Bearing Caps And Flywheel/Flex Plate:

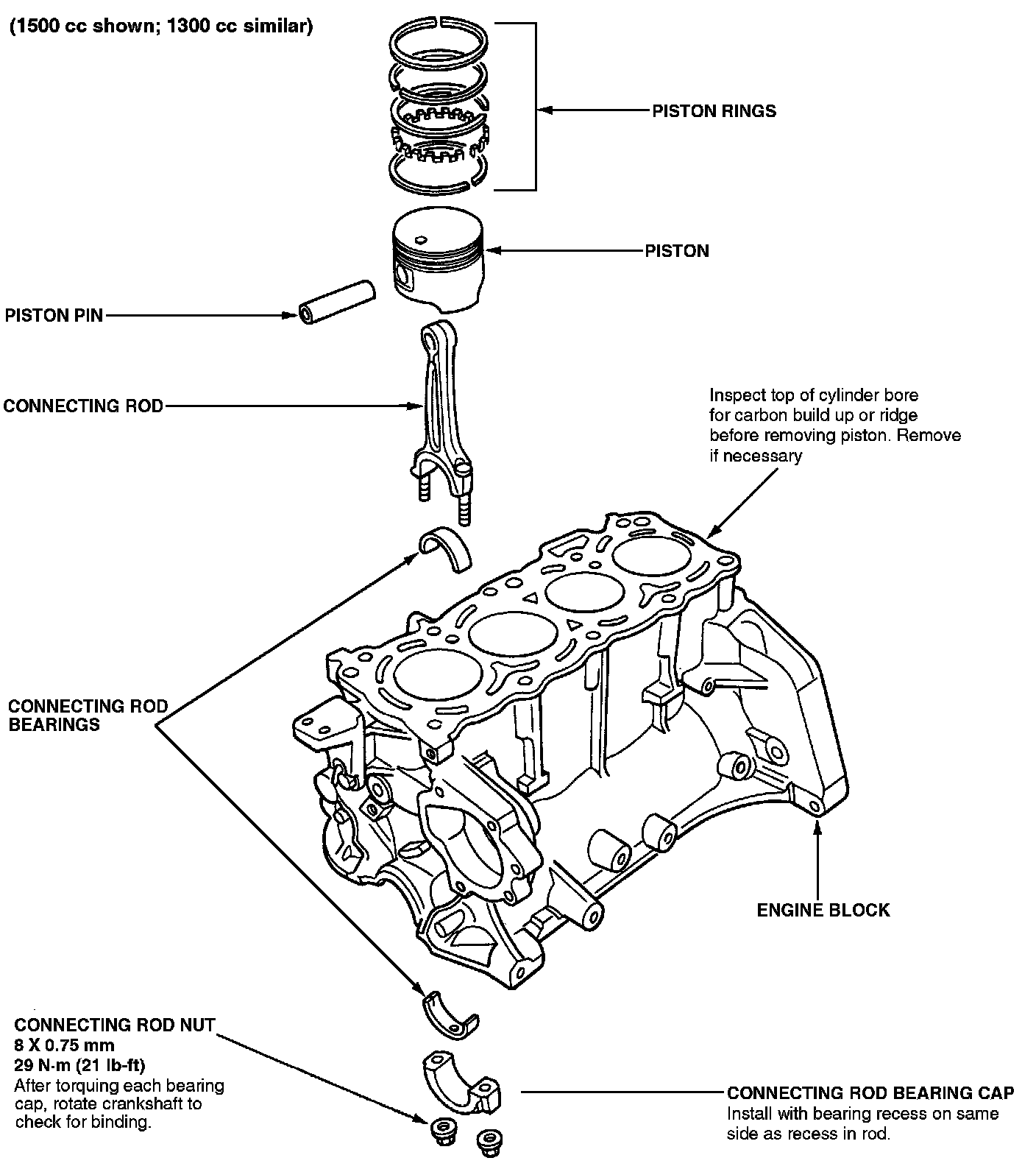

Piston And Connecting Rod:
