Torque Specifications

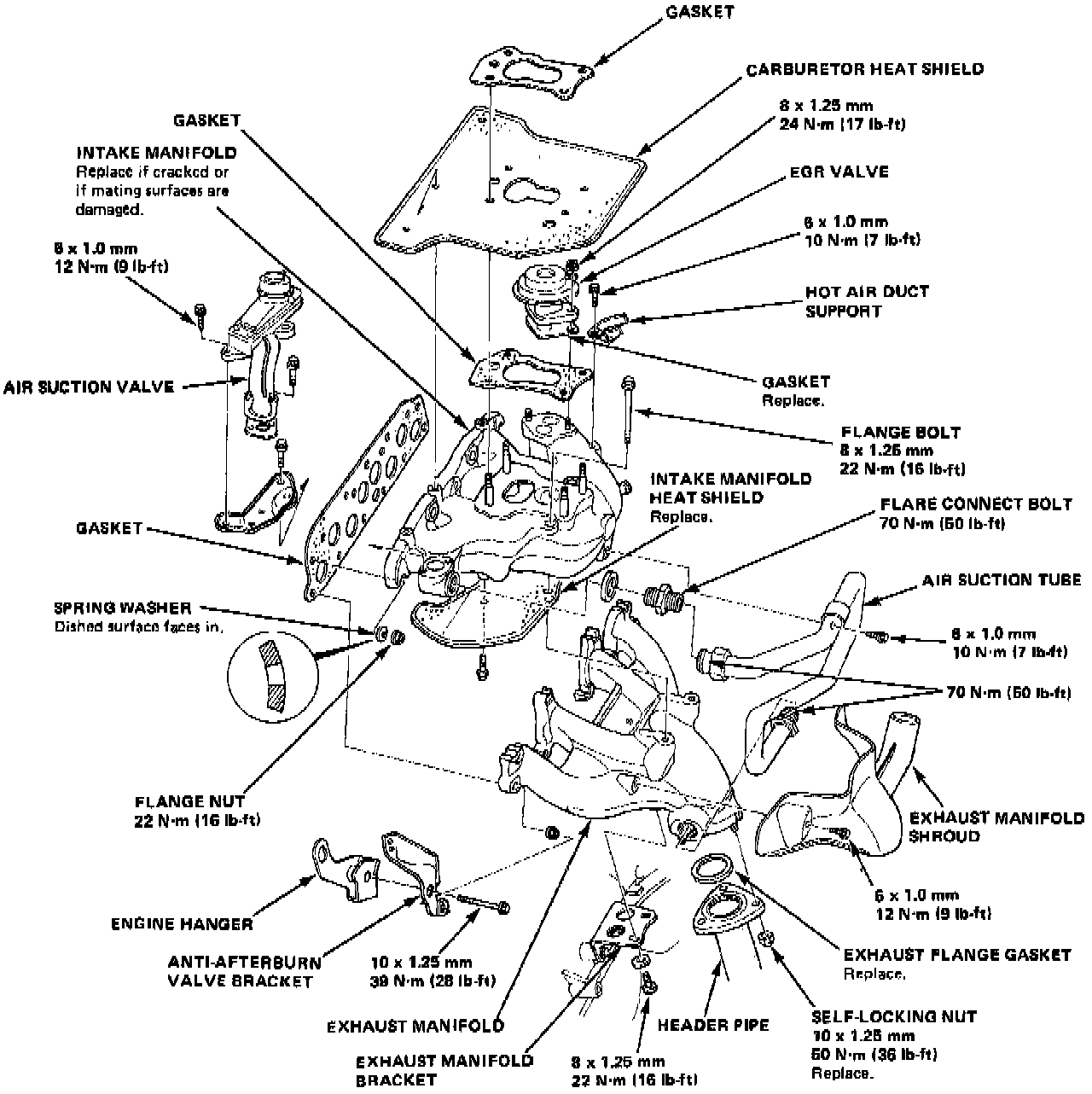

Manifolds:

Manifold Removal:

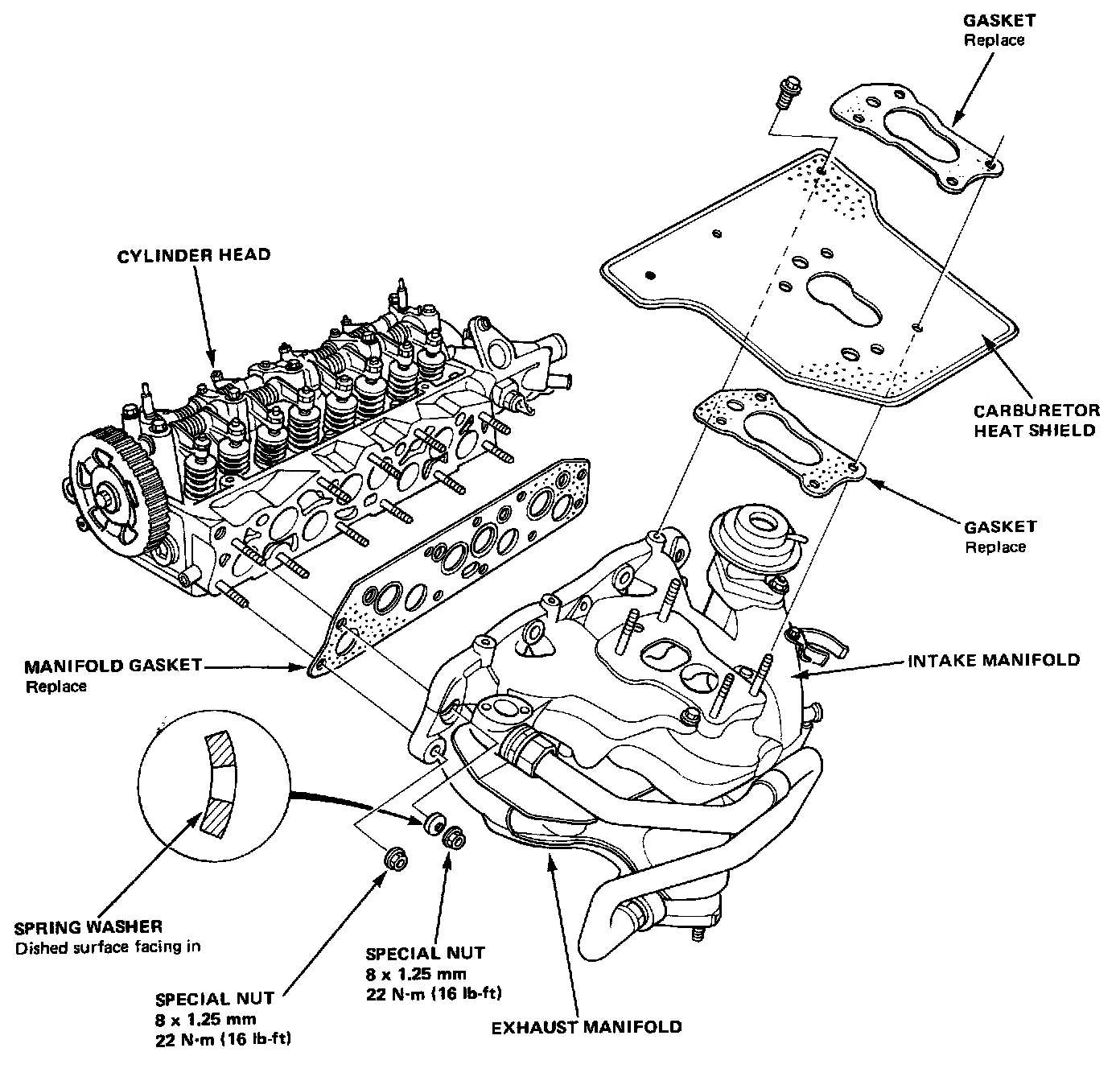

Manifold Assembly:

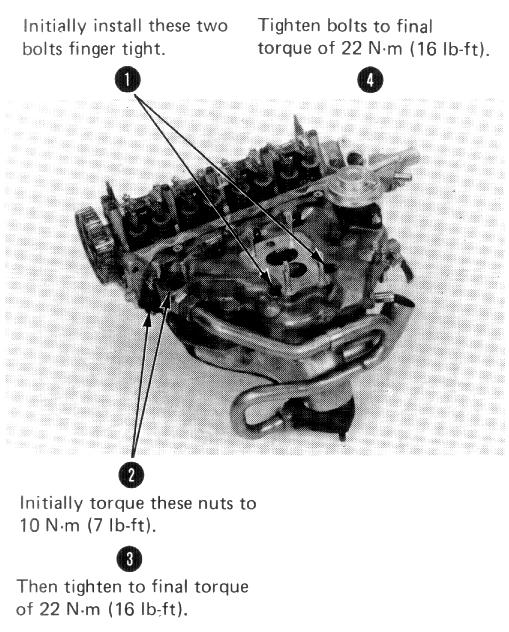

Manifold Installation Tightening Sequence:

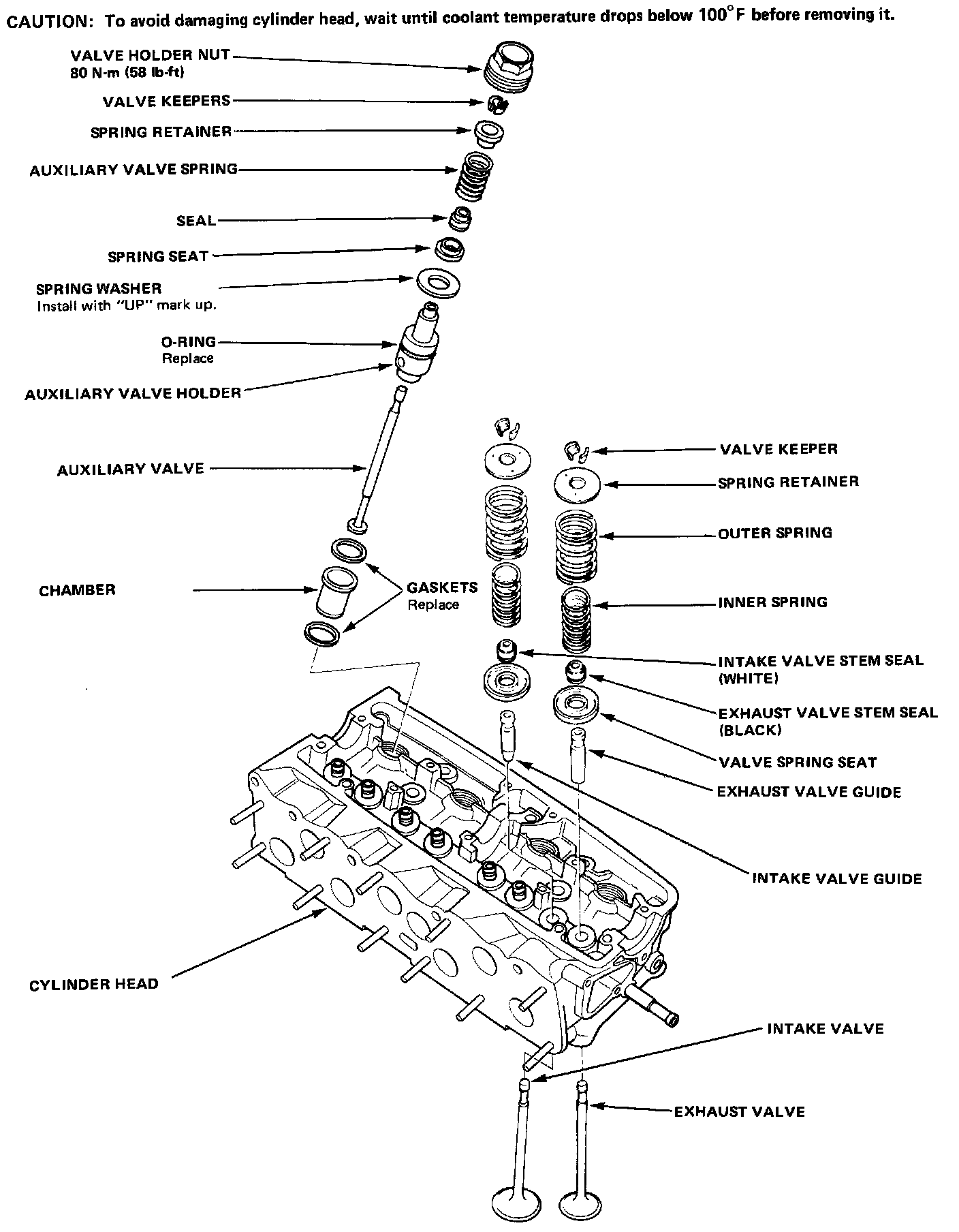

Cylinder Head/Valve Train - Part 1:

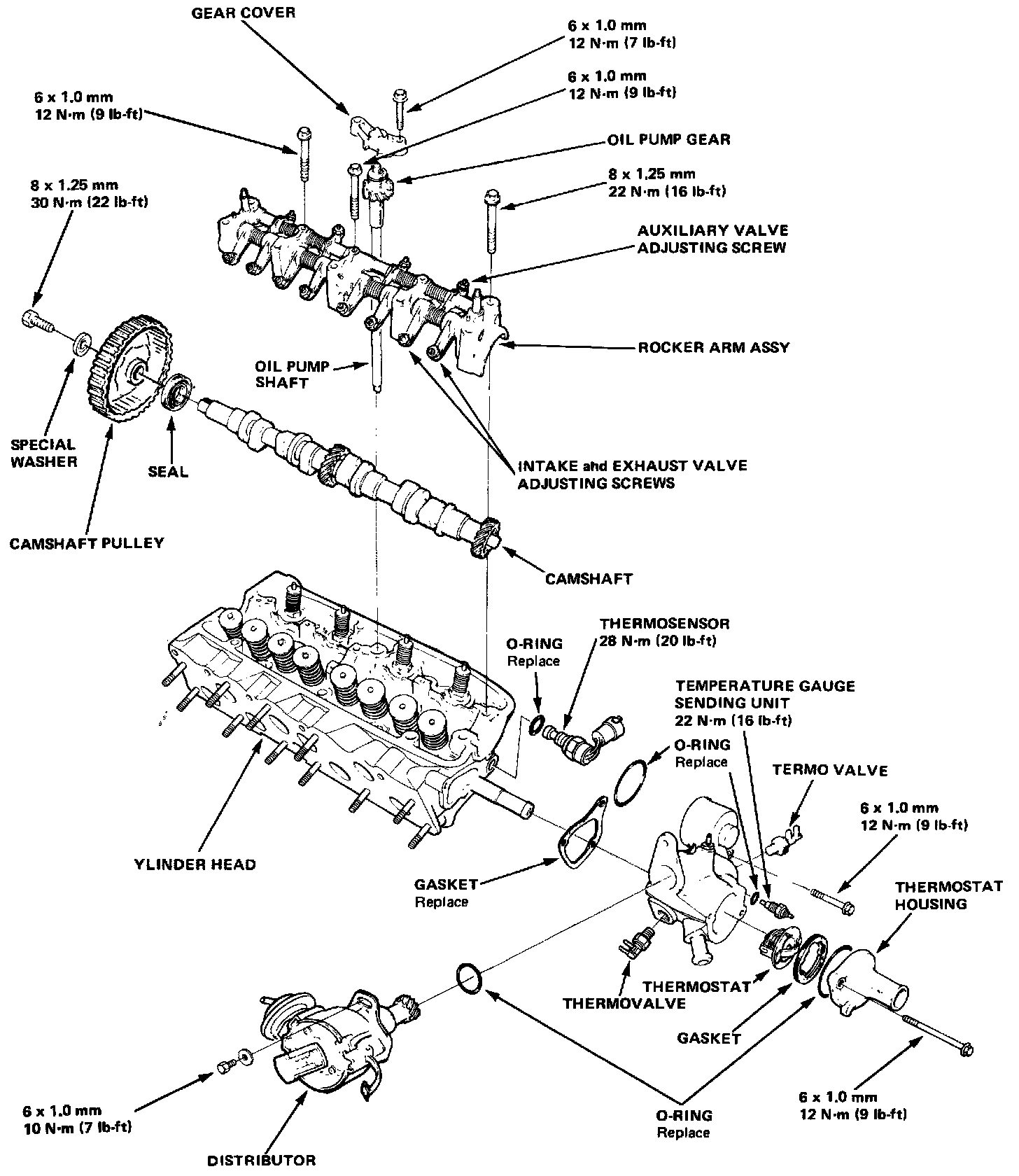

Cylinder Head/Valve Train - Part 2:

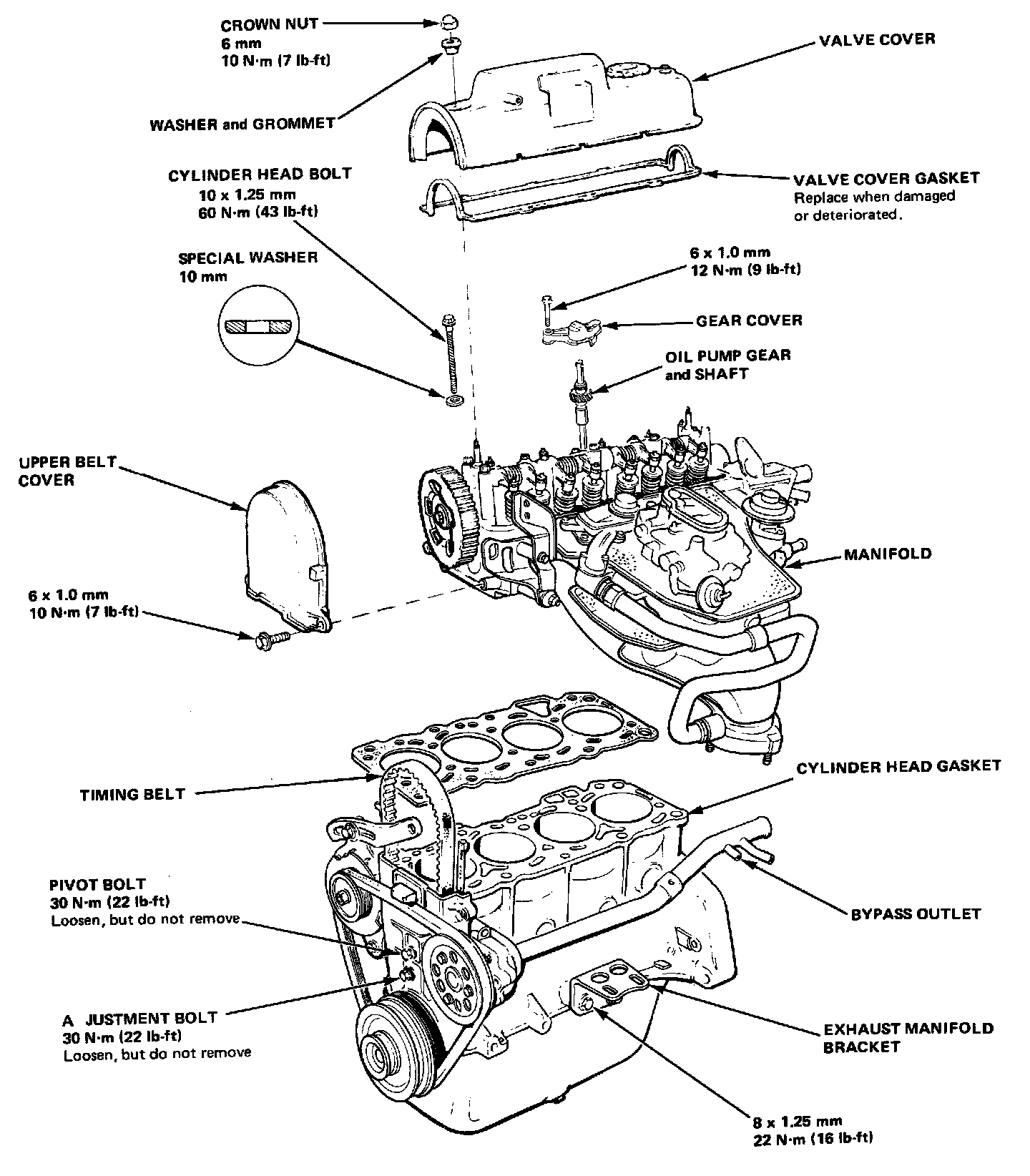

Cylinder Head/Valve Train - Part 3:

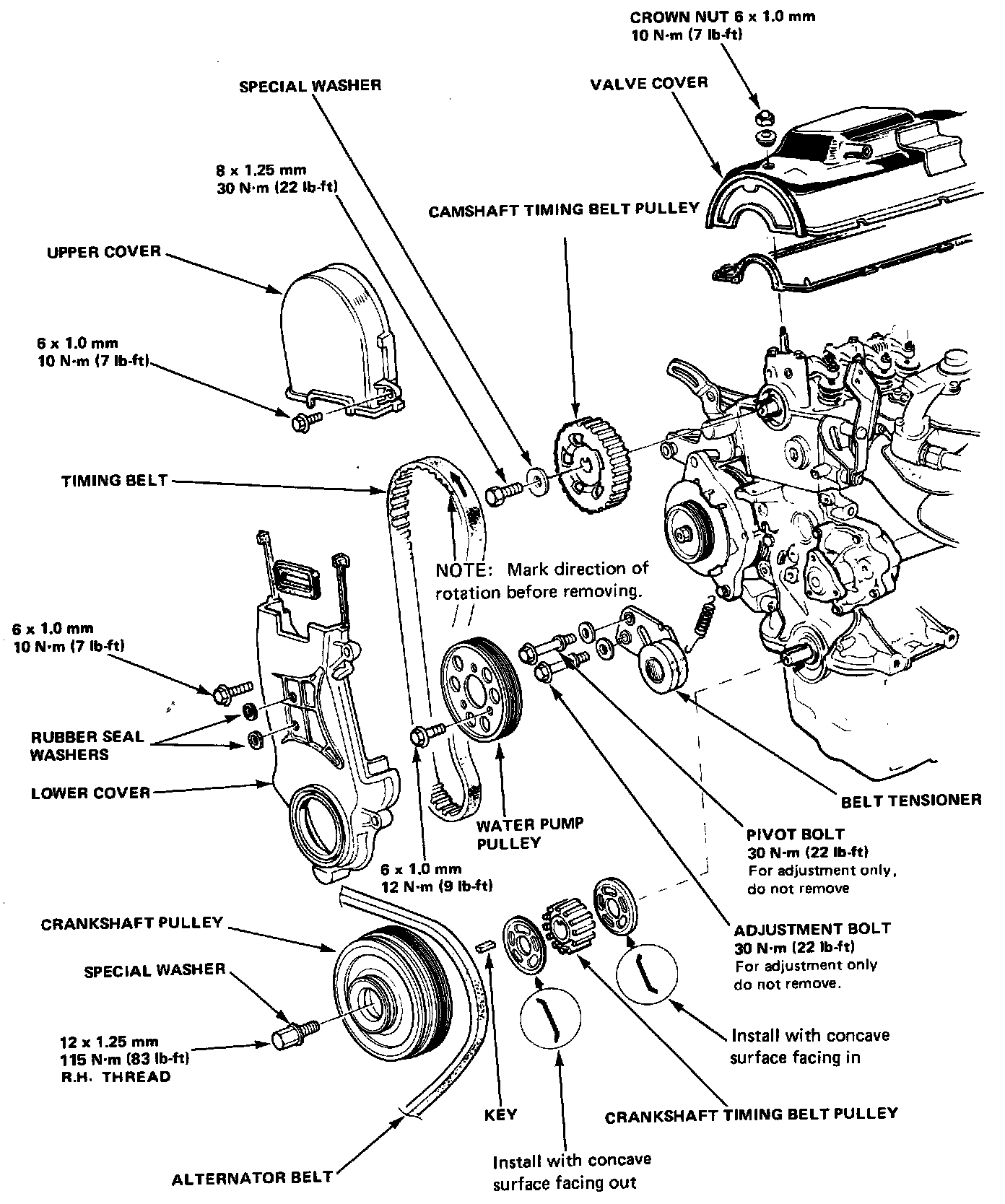

Timing Belt Replacement:

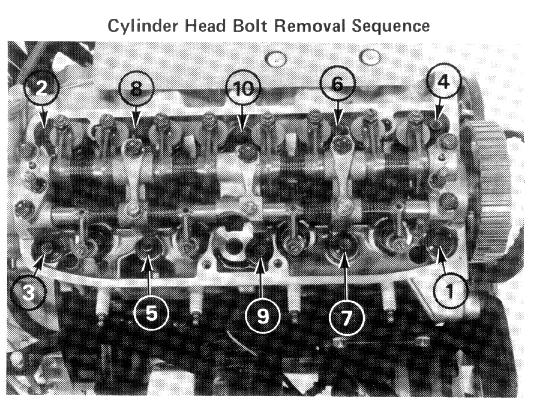

Cylinder Head Bolt Removal:

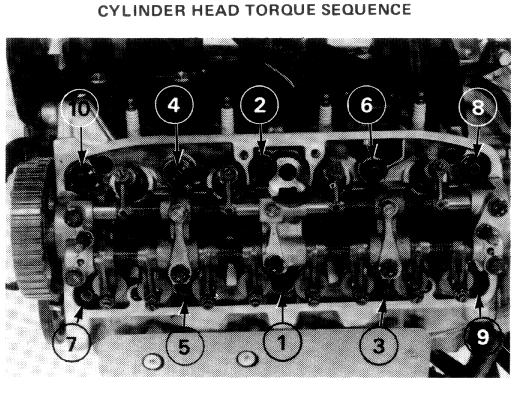

Cylinder Head Installation:

Tighten cylinder head bolts, in sequence, in two steps:

1st step: Tighten to 30 N.m (3.0 kgf-m, 22 lb.ft)
2nd step: Tighten to 60 N.m (6.0 kgf-m, 43 lb.ft)

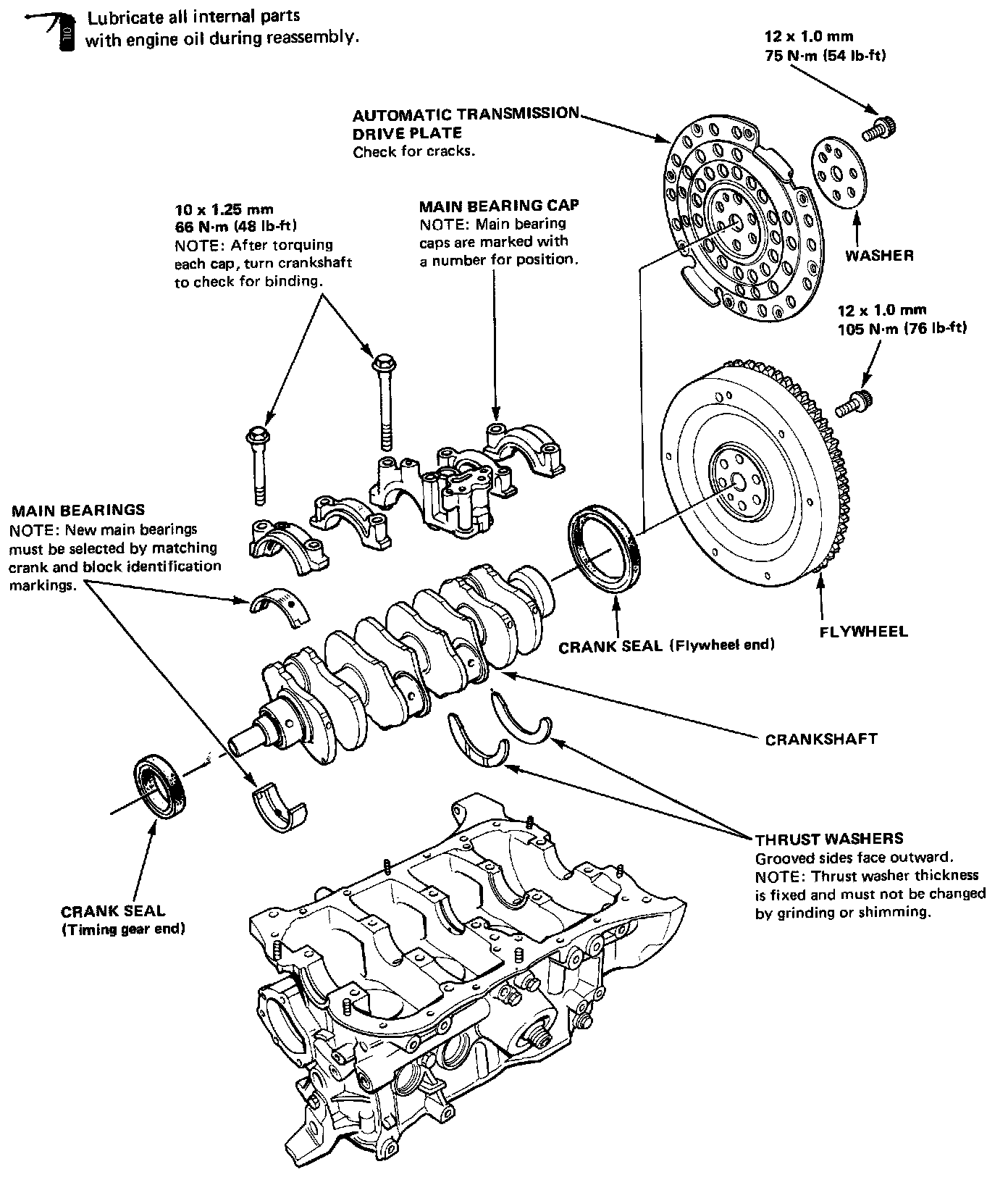

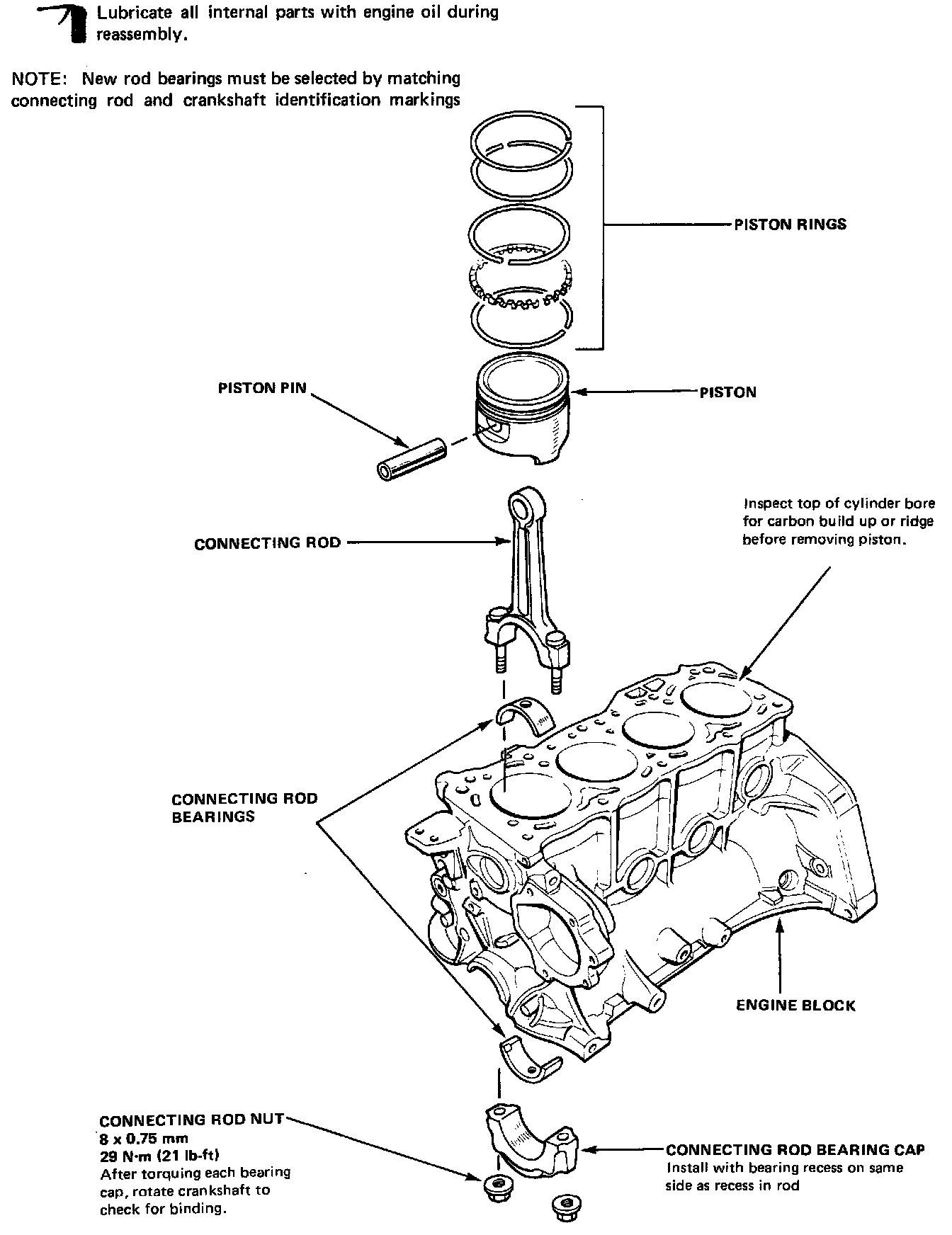

Engine Block - Part 1:

Engine Block - Part 2:

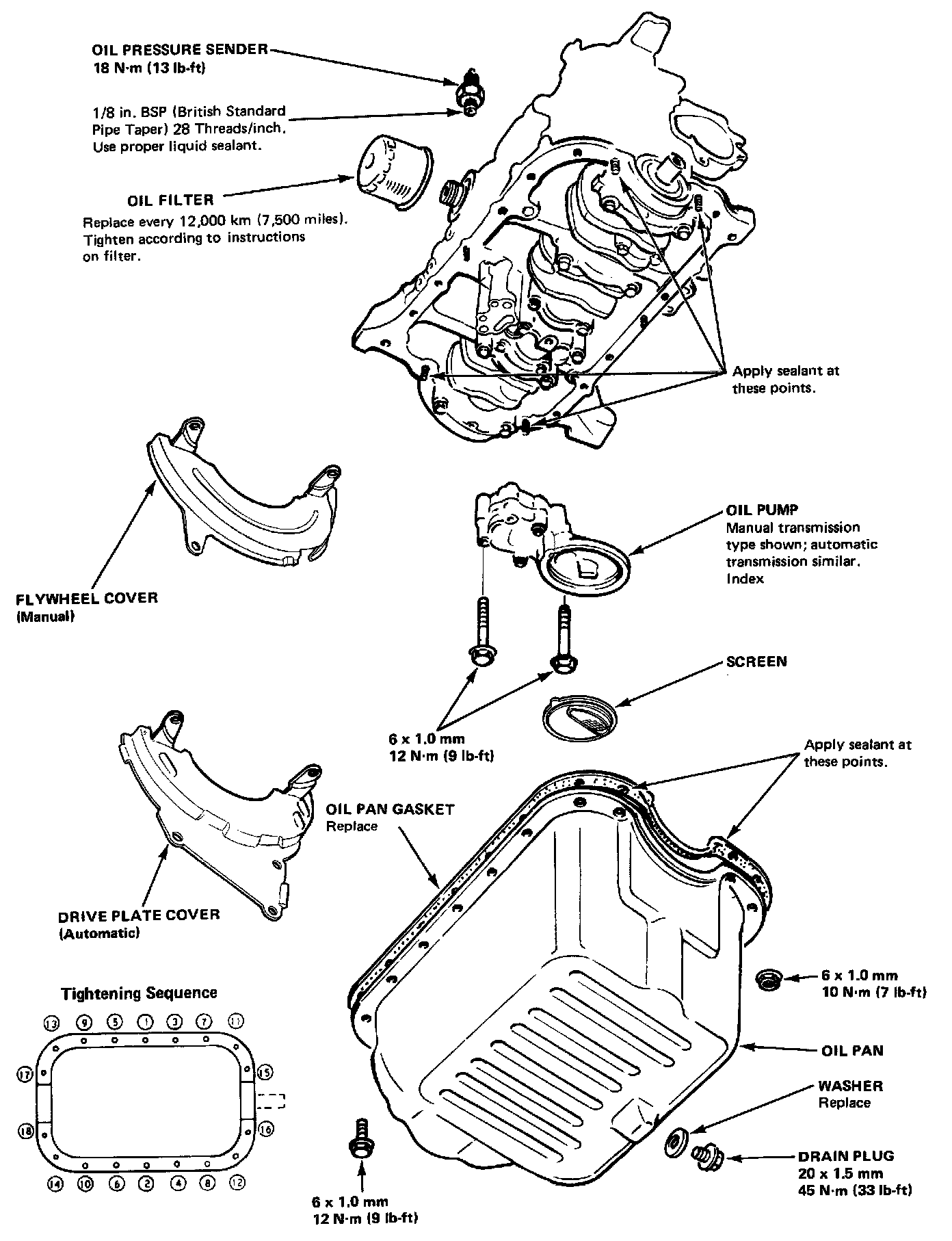

Engine Lubrication:

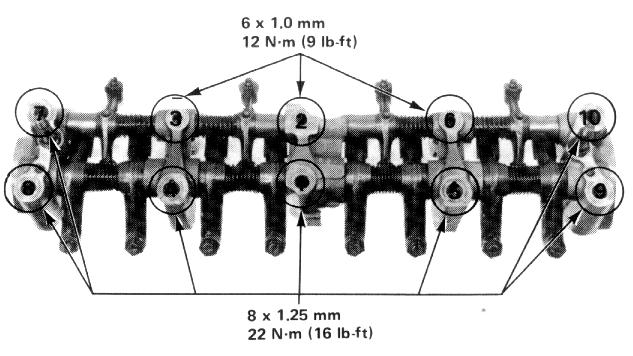

Cam/Rocker Arm Installation:

Camshaft Pulley Installation:

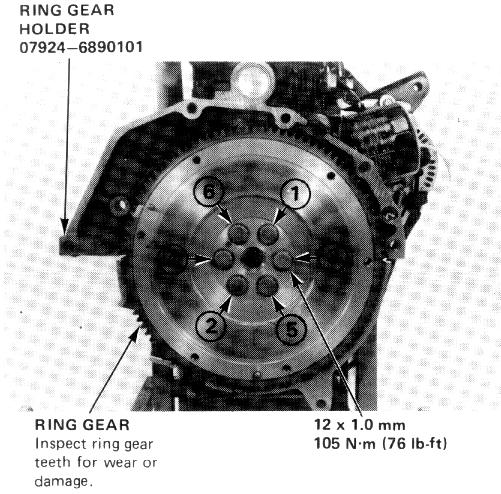

M/T Flywheel Replacement:

A/T Drive Plate Torque:
