System Diagram

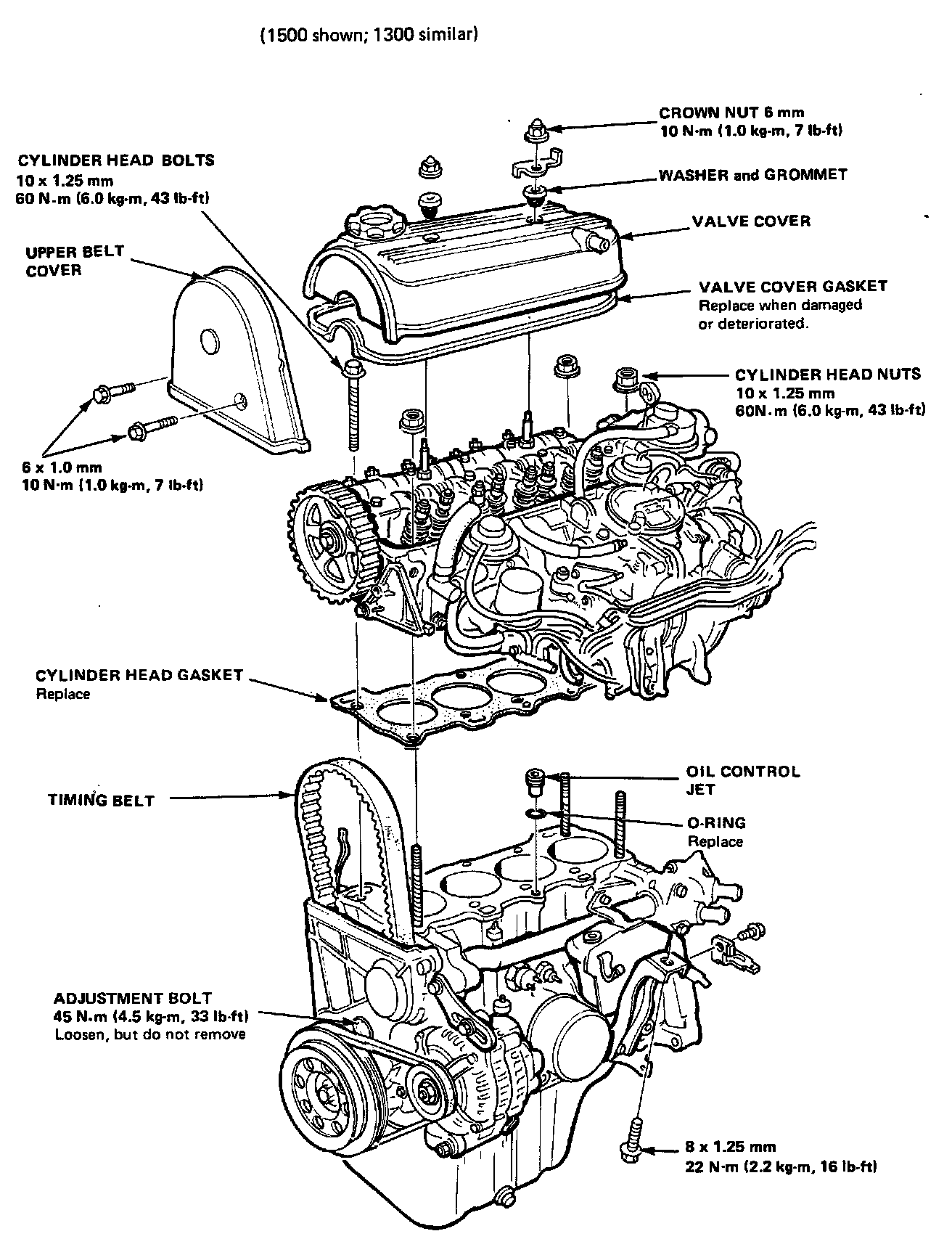

Cylinder Head Assembly And Cover:

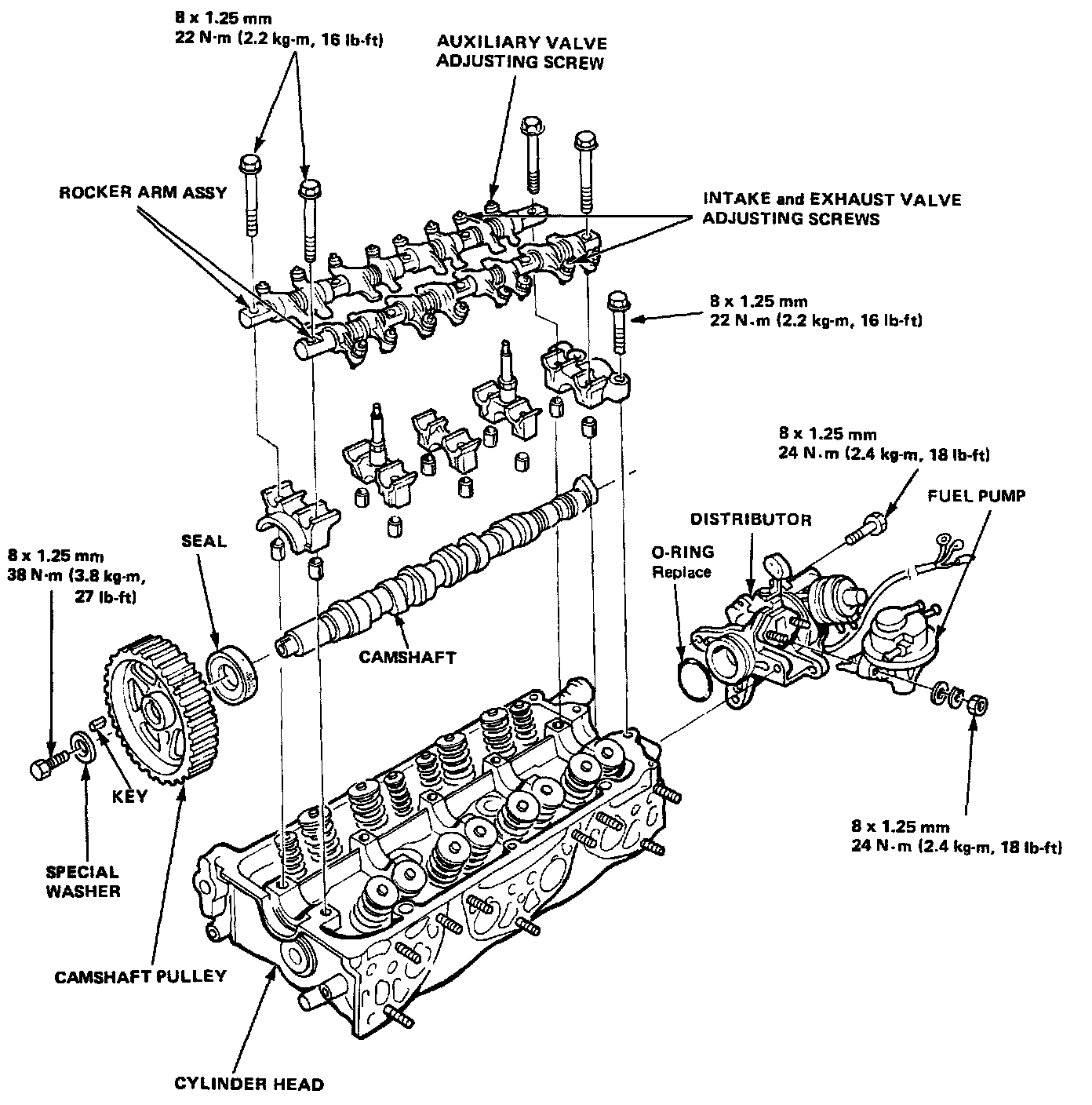

Camshaft, Rockers, Distributor And Fuel Pump:

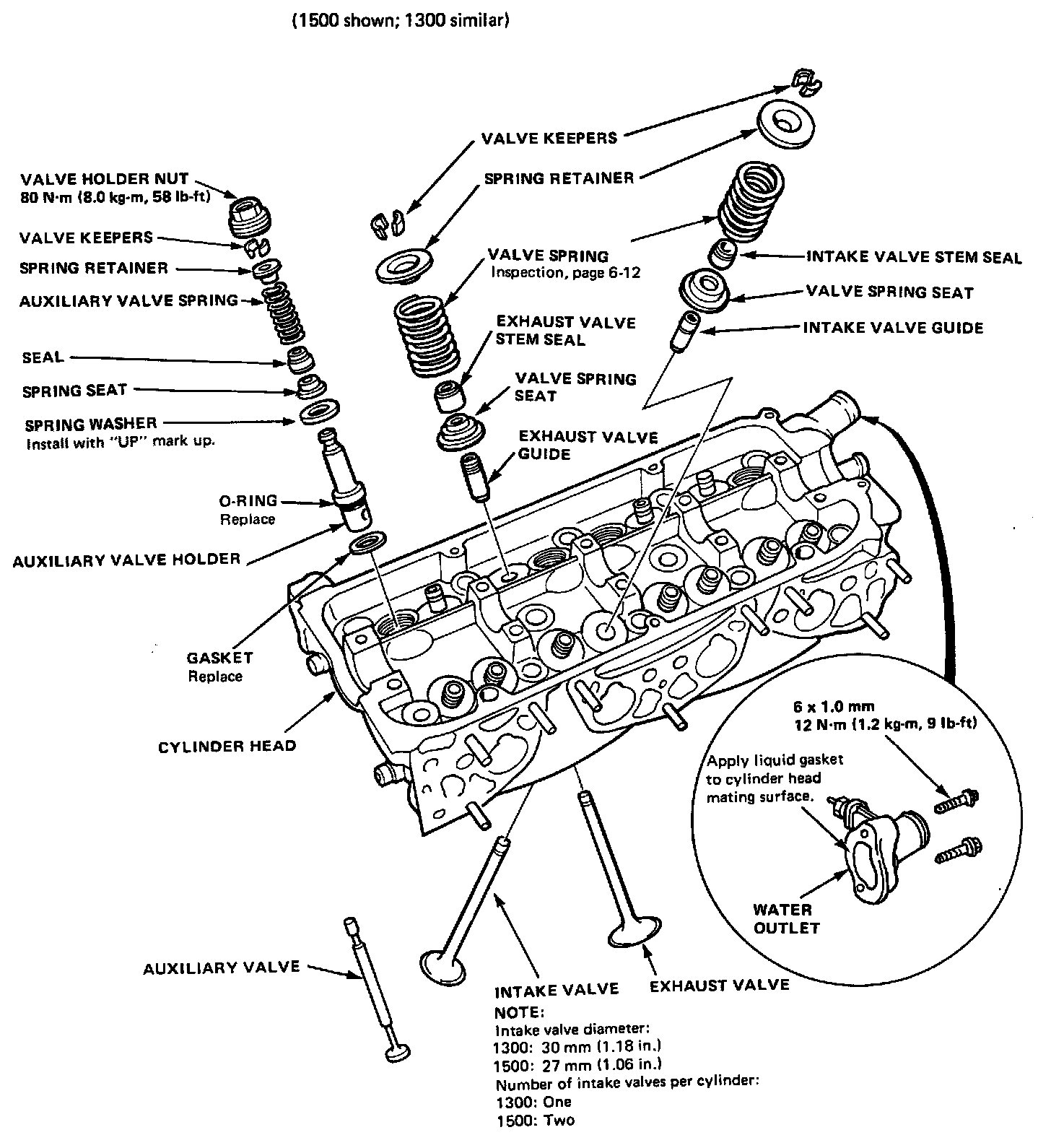

Valves, Guides And Springs, Auxiliary Valve Components:

Camshaft Pulley:

Timing Belt, Components And Covers:

Crankshaft, Main Bearing Caps And Flywheel/Flex Plate:

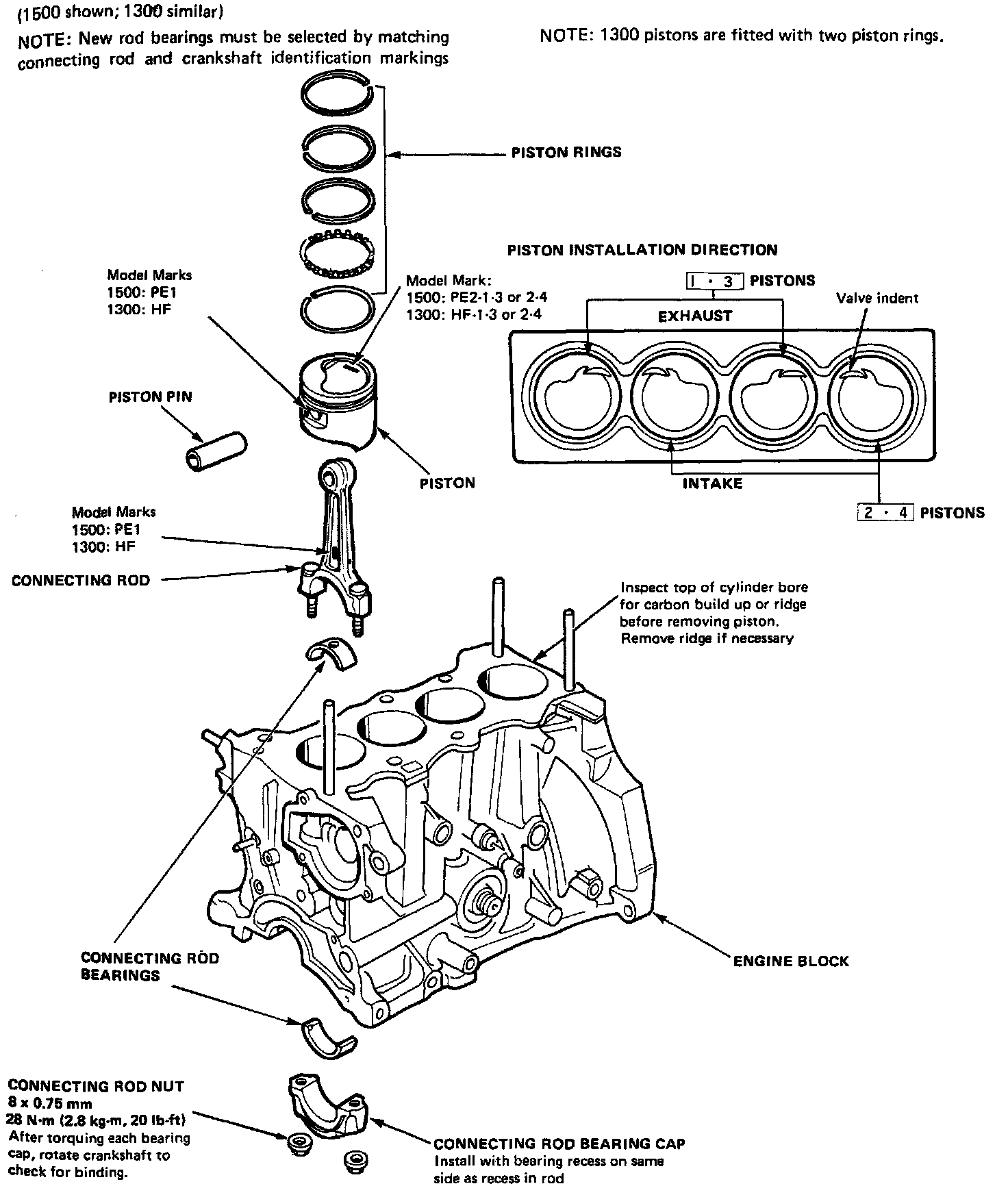

Piston And Connecting Rod:

Lubrication System Components:

Oil Pump Components:

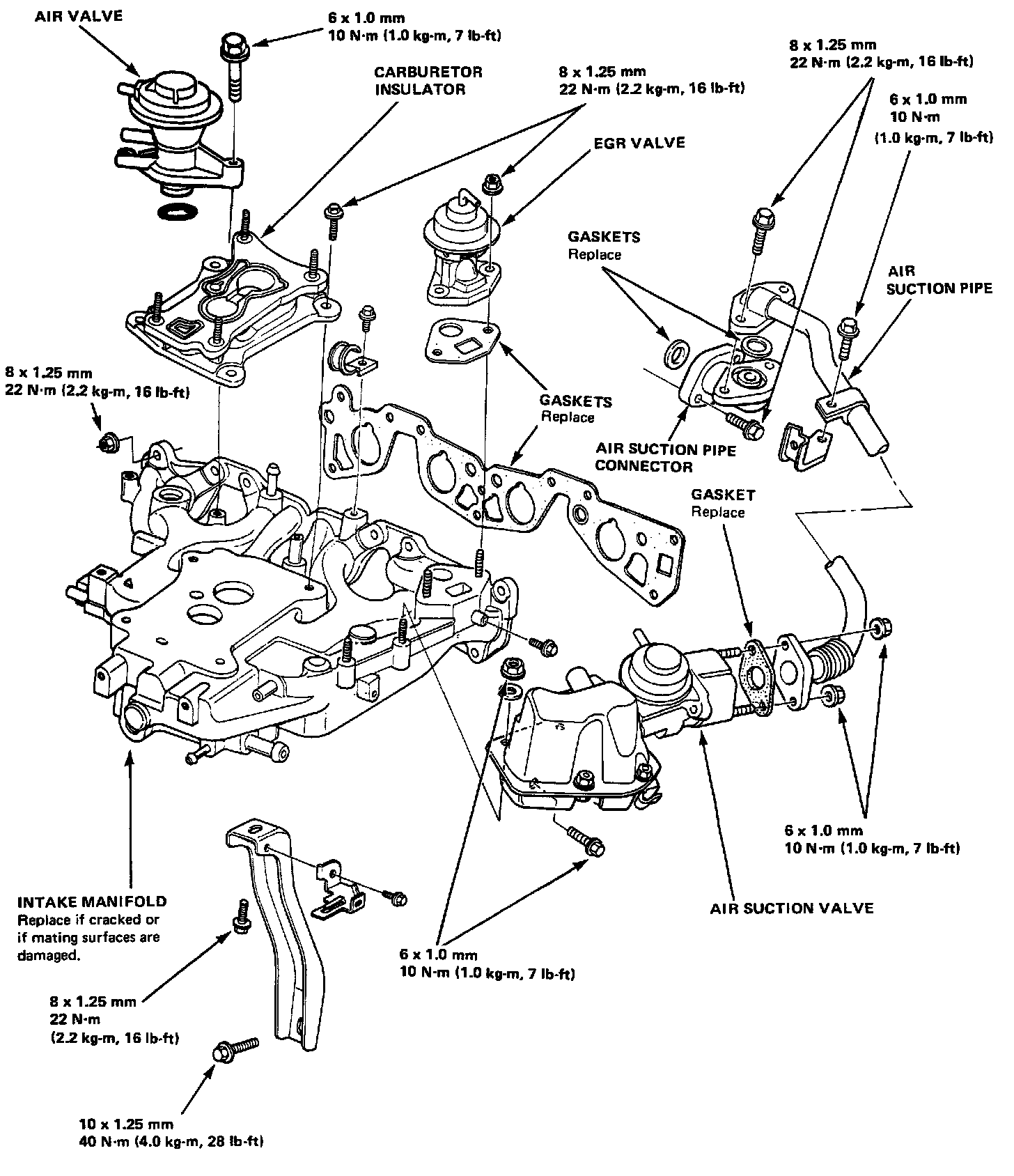

Intake Manifold And Attached Components:

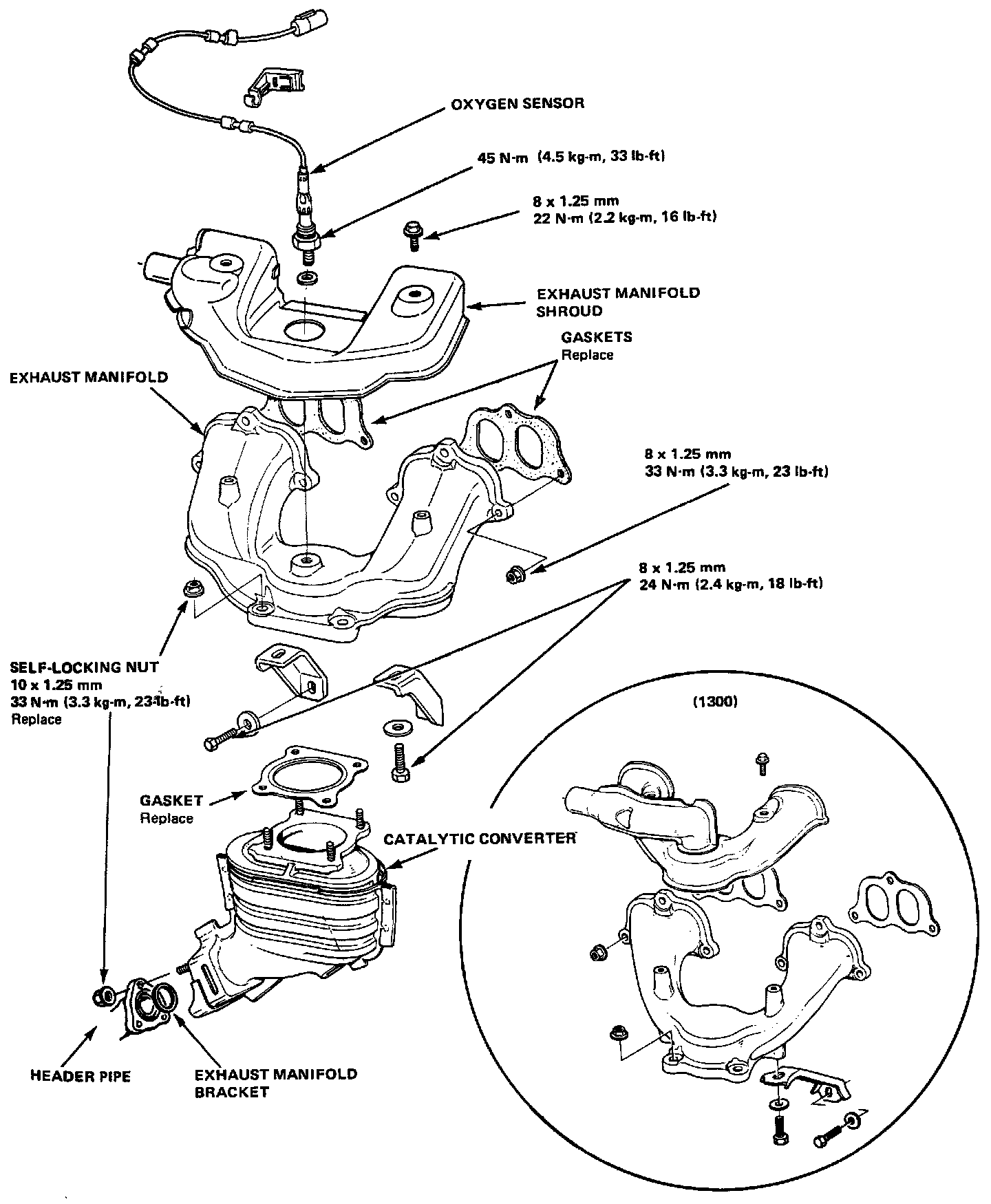

Exhaust Manifold And Attached Components:
