Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On blower motor housing. |
| A/C Thermostat | On bottom side of evaporator core housing. See Figure . |
| Choke Resistor | In right rear corner of engine compartment. |

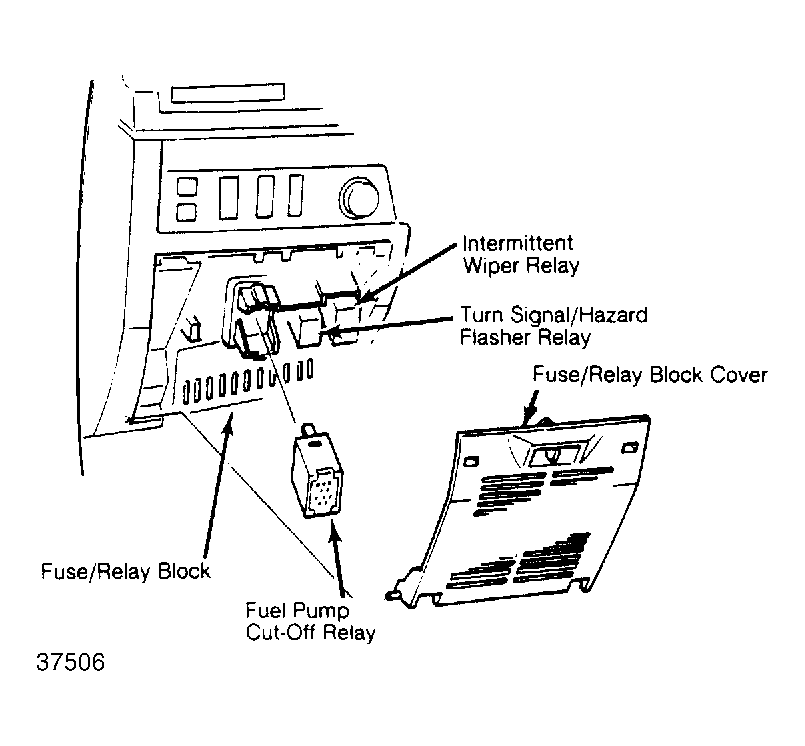

| Fuse/Relay Block | Under left side of dash. See Figure . |
| Indicator Amplifier | On back of tachometer. |
| Speed Sensor Amplifier | On back of speedometer. |
