Wiring Diagrams

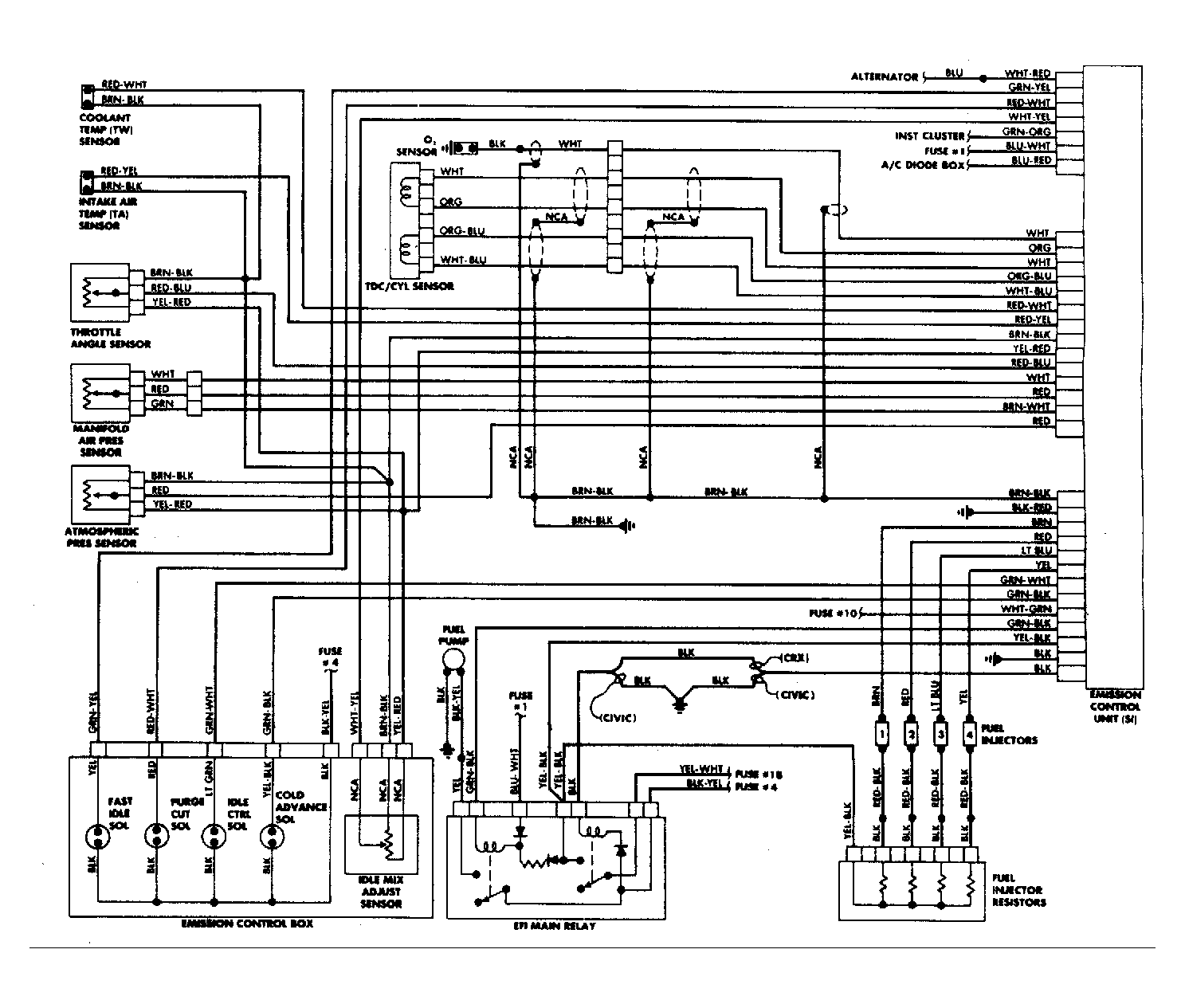

Fig 1: Civic & Civic CRX EFI Wiring Diagram

G61492

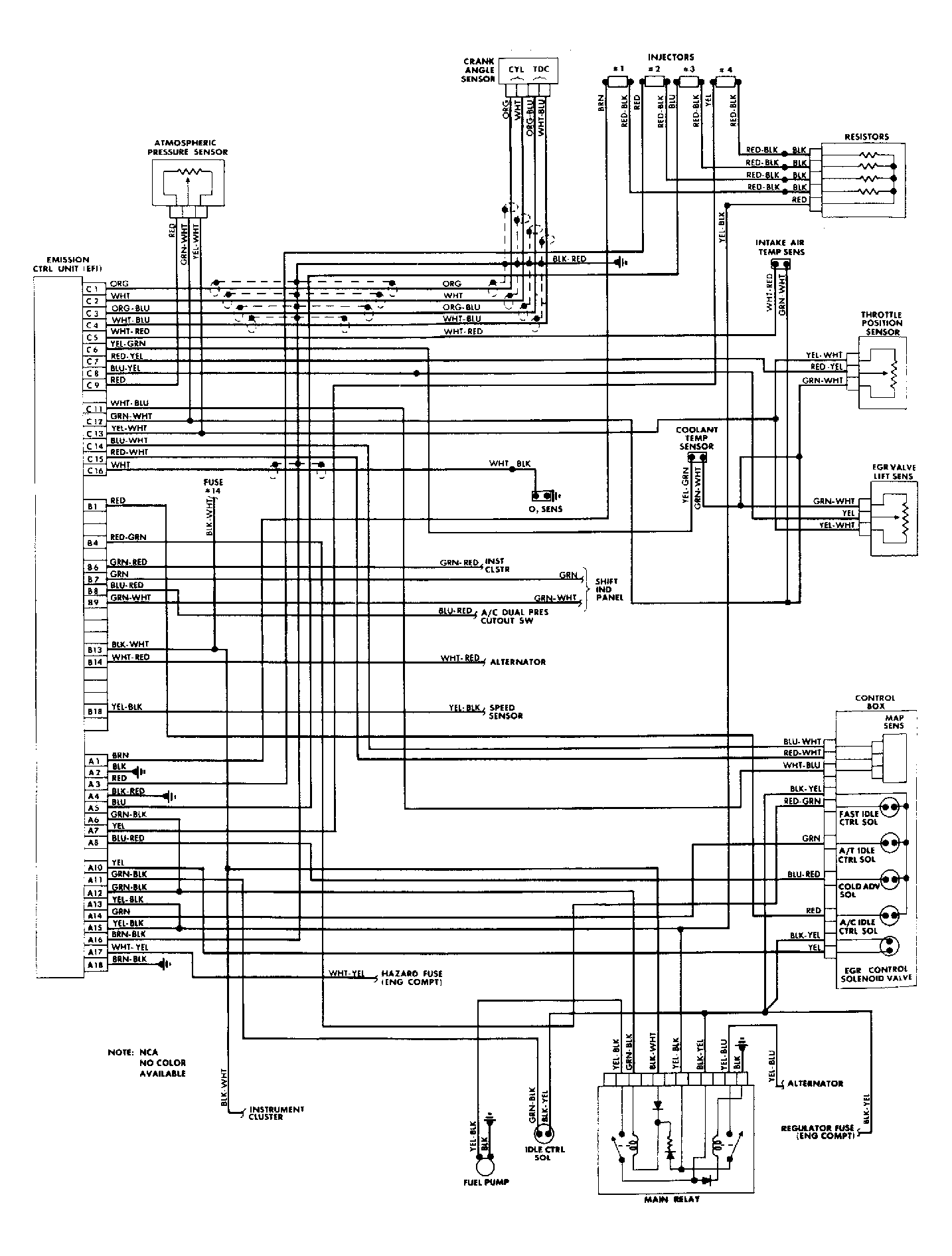

Fig 2: Prelude EFI Wiring Diagram

G61493
