Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

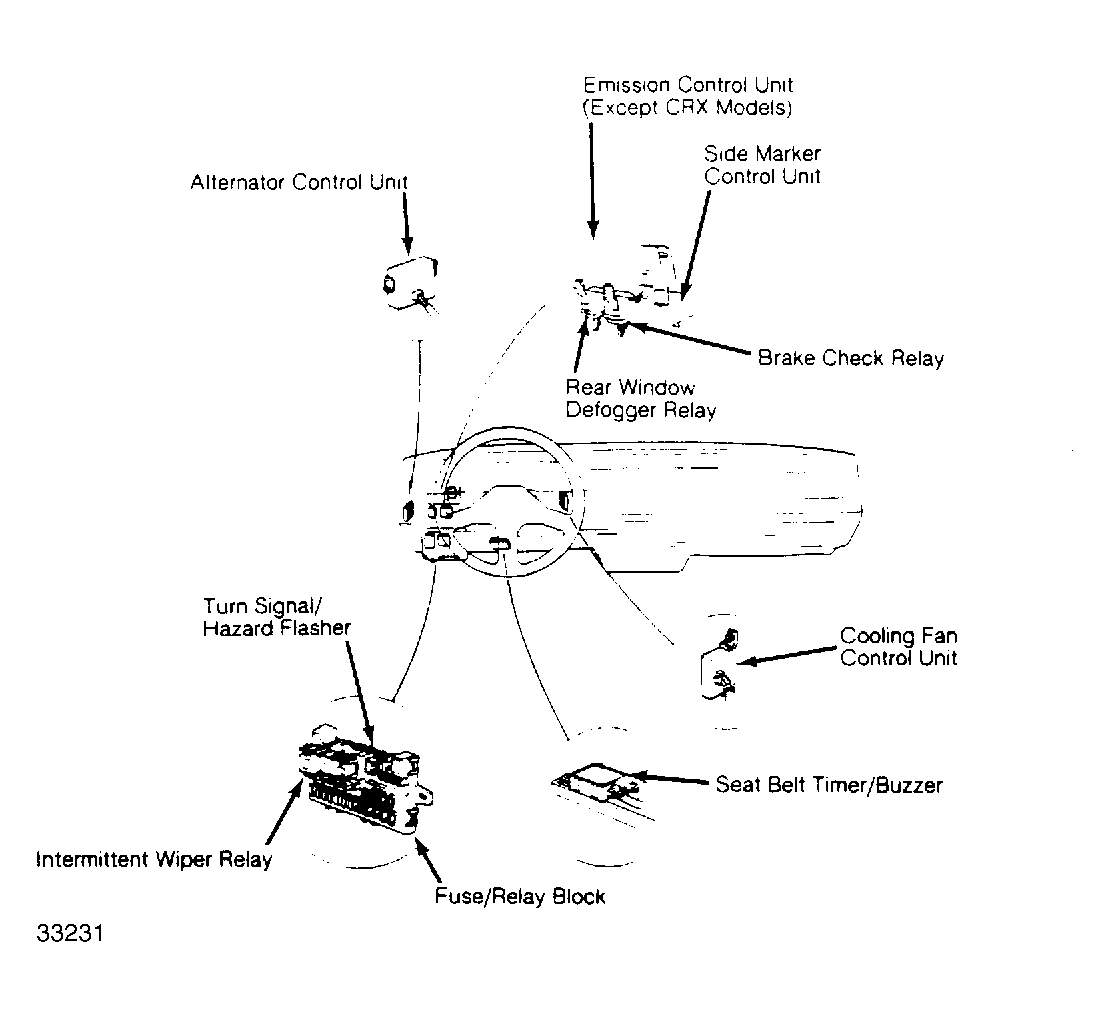

| Alternator Control Unit | Under left side of dash. See Figure & Figure . | |
| Cooling Fan Control Unit | Under left side of dash, to right of steering column. See Figure . | |
| Emission Control Unit | ||
| High Altitude | Under left side of dash. | |

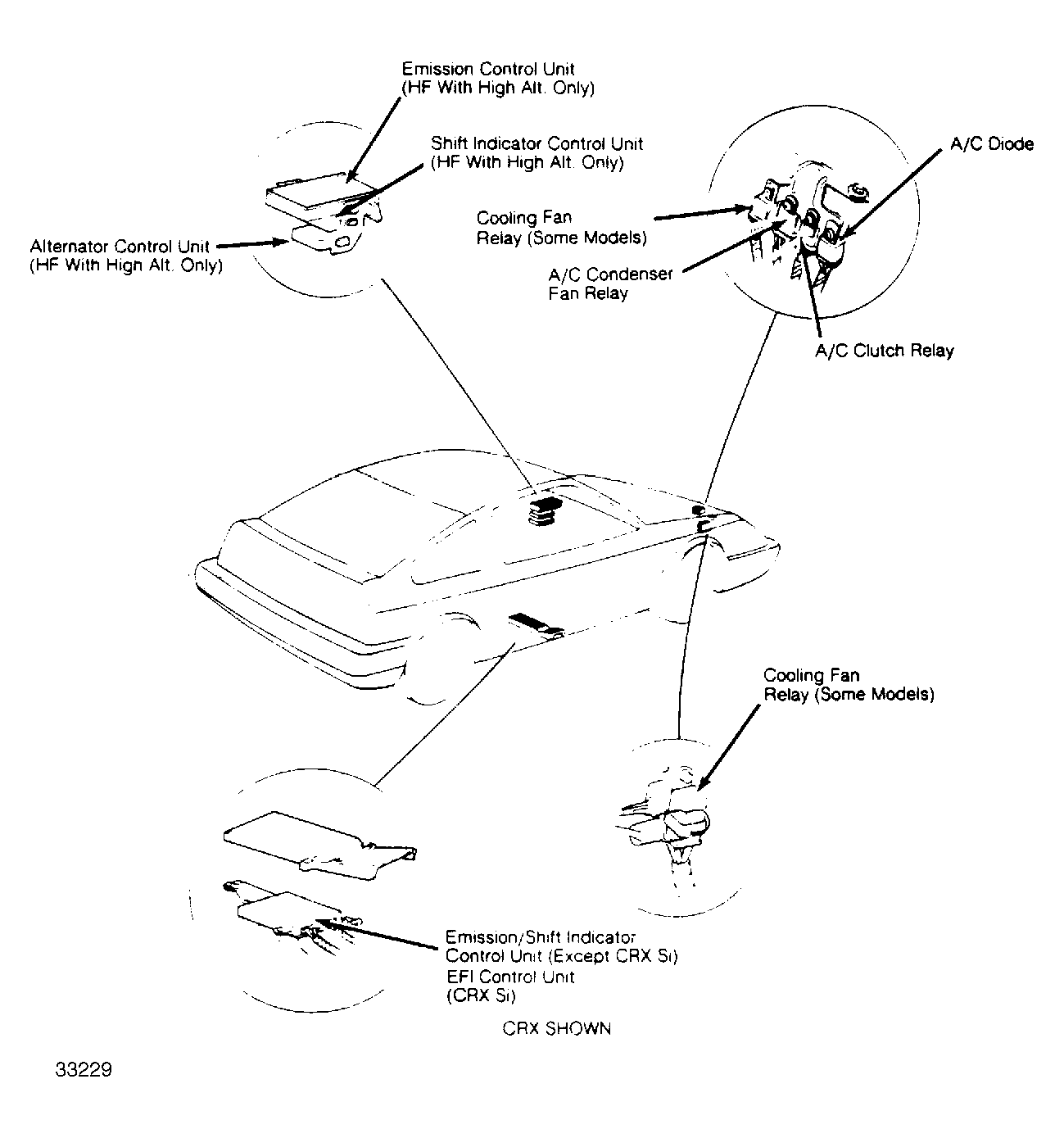

| Non-High Altitude | Under passenger's front seat. See Figure . | |
| Ignition Timing Control Unit | Behind dash, near left kick panel. | |
| Shift Indicator Control Unit | Under left side of dash. See Figure . | |
| Side Marker Control Unit | Under left side of dash. See Figure & Figure . | |
| Thermo Control Unit | Under dash, near left kick panel. | |
| Upshift Indicator Control Unit | Behind dash fuse block. | |
| 4WD Control Box | Next to right front shock tower. | |
